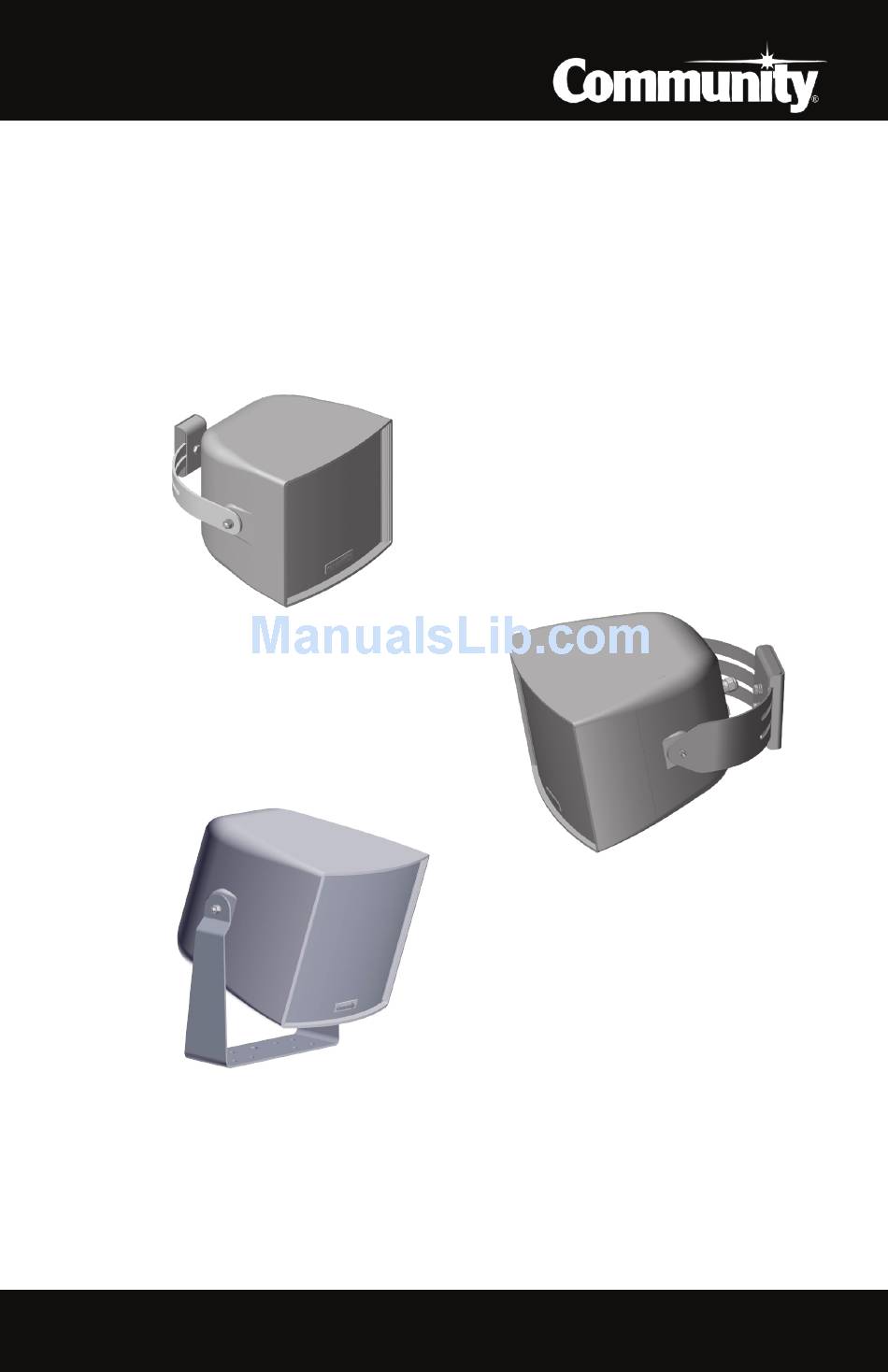

Instruction Guide
ACCESSORY YOKES
R-VTY15, R-VTY35, R-FRY35

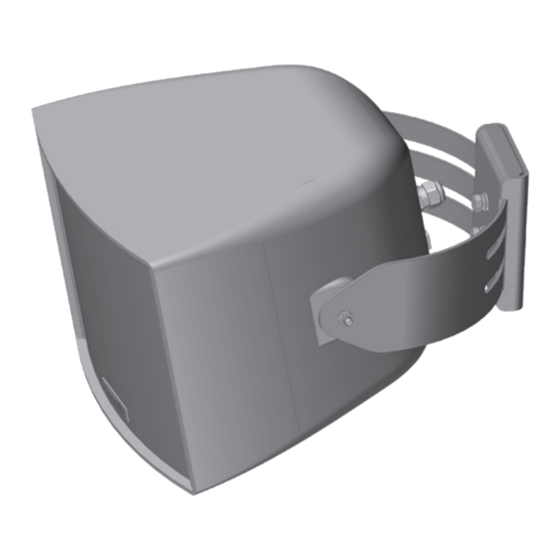

R-VTY15
Vari-Tilt™ yoke for R.15COAX
R-VTY35
Vari-Tilt™ yoke for
R.35COAX and R.35-3896
R-FRY35
Full rotation yoke for
R.35COAX and R.35-3896
ABOUT INSTALLATION
The wiring and installation of the loudspeakers is not discussed in this guide. Please refer to the
R.15/R.35 Installation and Operation Manual for complete information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Community R-VTY15
Summary of Contents for Community R-VTY15
- Page 1 Instruction Guide ACCESSORY YOKES R-VTY15, R-VTY35, R-FRY35 R-VTY15 Vari-Tilt™ yoke for R.15COAX R-VTY35 Vari-Tilt™ yoke for R.35COAX and R.35-3896 R-FRY35 Full rotation yoke for R.35COAX and R.35-3896 ABOUT INSTALLATION The wiring and installation of the loudspeakers is not discussed in this guide. Please refer to the...
- Page 2 8 mm Lock Washer Wall Mount Pinch Plate Vari-Tilt Yoke Figure 1. R-VTY15 installation CAUTION: Installation of R-Series loudspeakers should only be performed by trained and qualified personnel. It is strongly recommended that a licensed and certified professional structural engineer approve the mounting design. Severe injury and/or...
- Page 3 R-VTY35 Vari-Tilt™ Yoke 74° Attach wall mount plate to surface - Installer must supply appropriate hardware 74° Wall Mount Plate Range of rotation from center 47° 47° Pinch Plate 10 x 35 mm Hex Bolt 10 mm Lock Washer Vari-Tilt Yoke 10 mm Flat Washer Figure 2.
- Page 4 However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. Visit Community at http://www.communitypro.com for the latest version of this document and the most recent product information.
