Clearances And Dimensions; Flue Lengths - IDEAL COMBI ESP 24 Pocket Manual

8

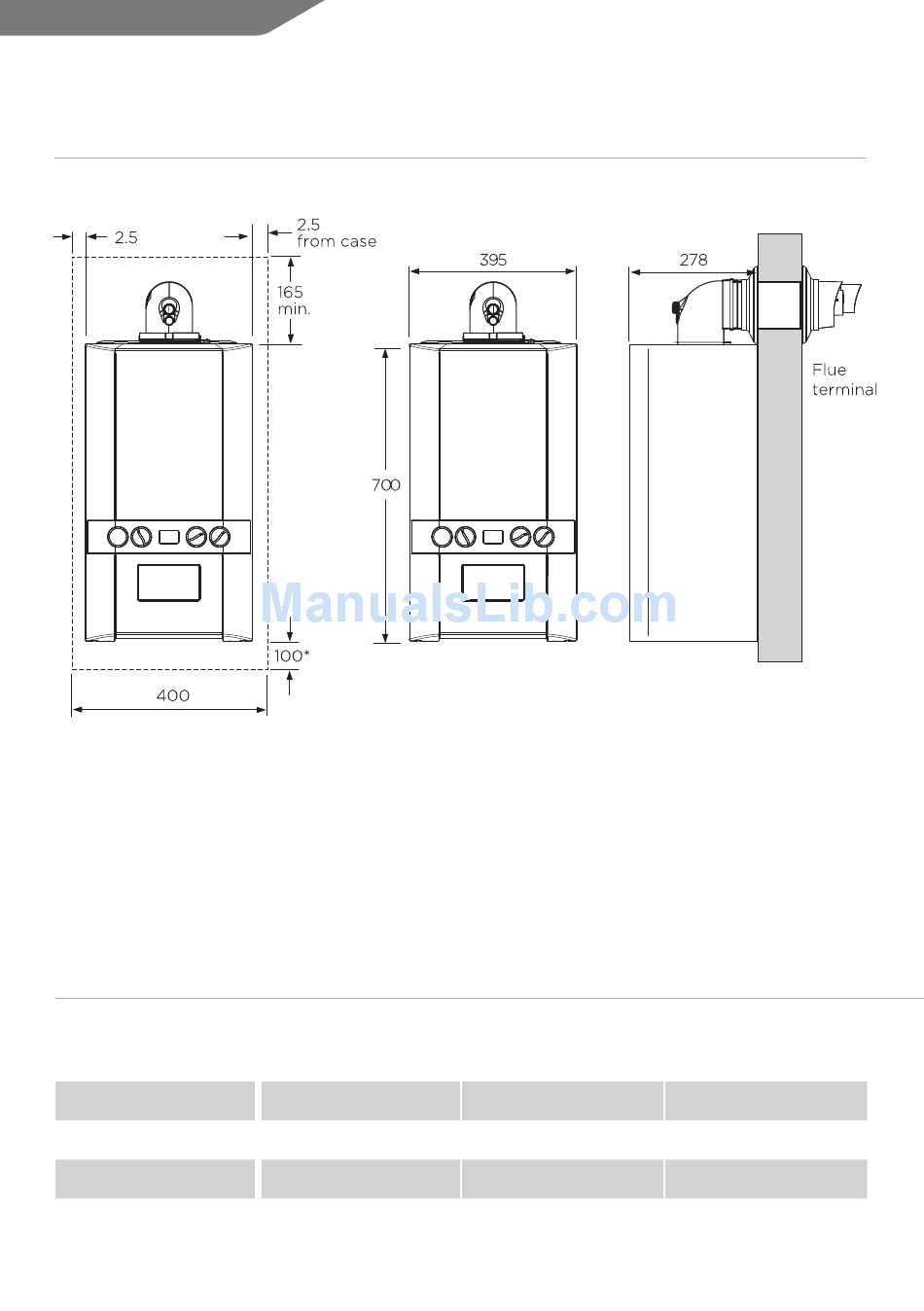

CLEARANCES AND DIMENSIONS.

DIMENSIONS IN MM
DIMENSIONS:
Height: 700mm
Width: 395mm
Depth: 278mm

FLUE LENGTHS.

Max horizontal**
Max vertical**
Powered vertical †
Note: The minimum front clearance when built in to a
cupboard is 5mm from the cupboard door but 450mm
overall clearance with the cupboard door open is required
for servicing.
*Bottom clearance after installation can be reduced to
5mm. However, 100mm is required for servicing.
COMBI ESP 24
9m
7.5m
22m
COMBI ESP 30
8m
7.5m
22m
COMBI ESP 35
6m
7.5m
22m
