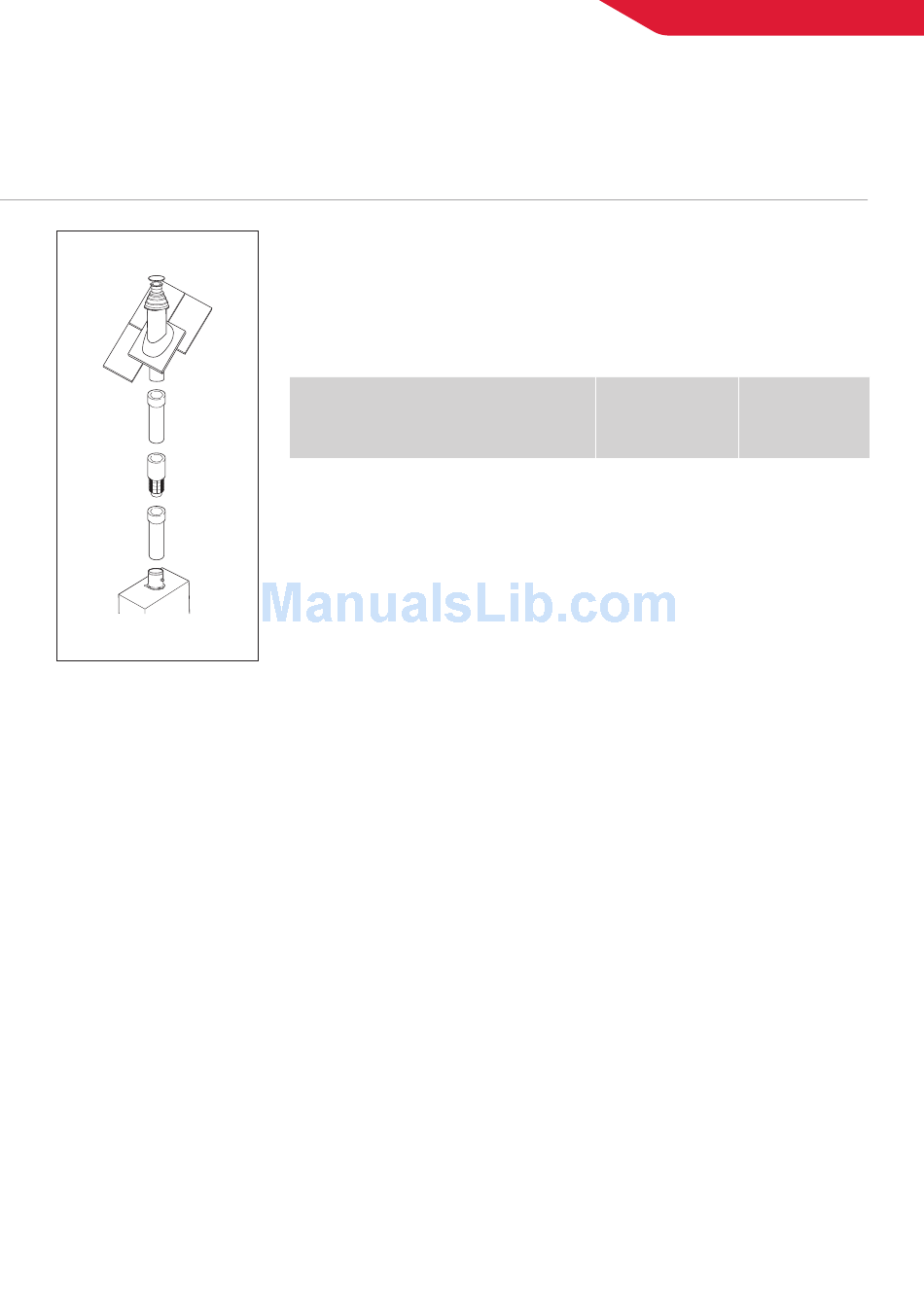

Powered Vertical Flue System - IDEAL COMBI ESP 24 Pocket Manual

NOTE: Allows the boiler to be sited in a position where no access to an
outside wall is available. Permits the concentric flue to run vertically from the
top of the boiler and obtain air supply within the roof space, the secondary
flue continuing to the external flue terminal. Offset applications
are permissible though the maximum length is reduced.
* 152258: Weather collar universal 100 dia (suits any roof pitch)
152259: Weather collar flat roof 100 dia
Where extension D packs are cut to length, the flared end connector must be
retained.
† Secondary flue extension pipes are available in 0.5, 1 and 2 metre lengths.
** See installation instructions for maximum primary and maximum secondary
flue lengths.
POWERED
VERTICAL
FLUE SYSTEM.
FLUE
Vertical powered flue kit
+ Flue vertical connector
+ Flue powered vertical terminal
100 dia
+ Weather collar
+ Extension pack D
+ Flue extension pipe 80 dia (pair)†
IDEAL MAXIMUM
PART NO. STRAIGHT
FLUE LENGTH
203136
208175 Primary and
203134 secondary
flue combined
152258/152259* maximum
203129 22mm**
203142
51
(MM)
