FLUE
Horizontal flue terminal (0.6m long)
+ Flue 90° elbow kit (60/100)
Telescopic B pack flue (0.6m long)
+ Flue 90° elbow kit (60/100)
Horizontal flue terminal (0.6m long)
+ 5 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)
Telescopic B pack flue (0.6m long)
+ 5 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)
Horizontal flue terminal (0.6m long)
+ 7 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)
Telescopic B pack flue (0.6m long)
+ 7 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)
Horizontal flue terminal (0.6m long)
+ 8 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)
Telescopic B pack flue (0.6m long)
+ 8 x Flue extension 1m (pack D)
+ Flue 90° elbow kit (60/100)

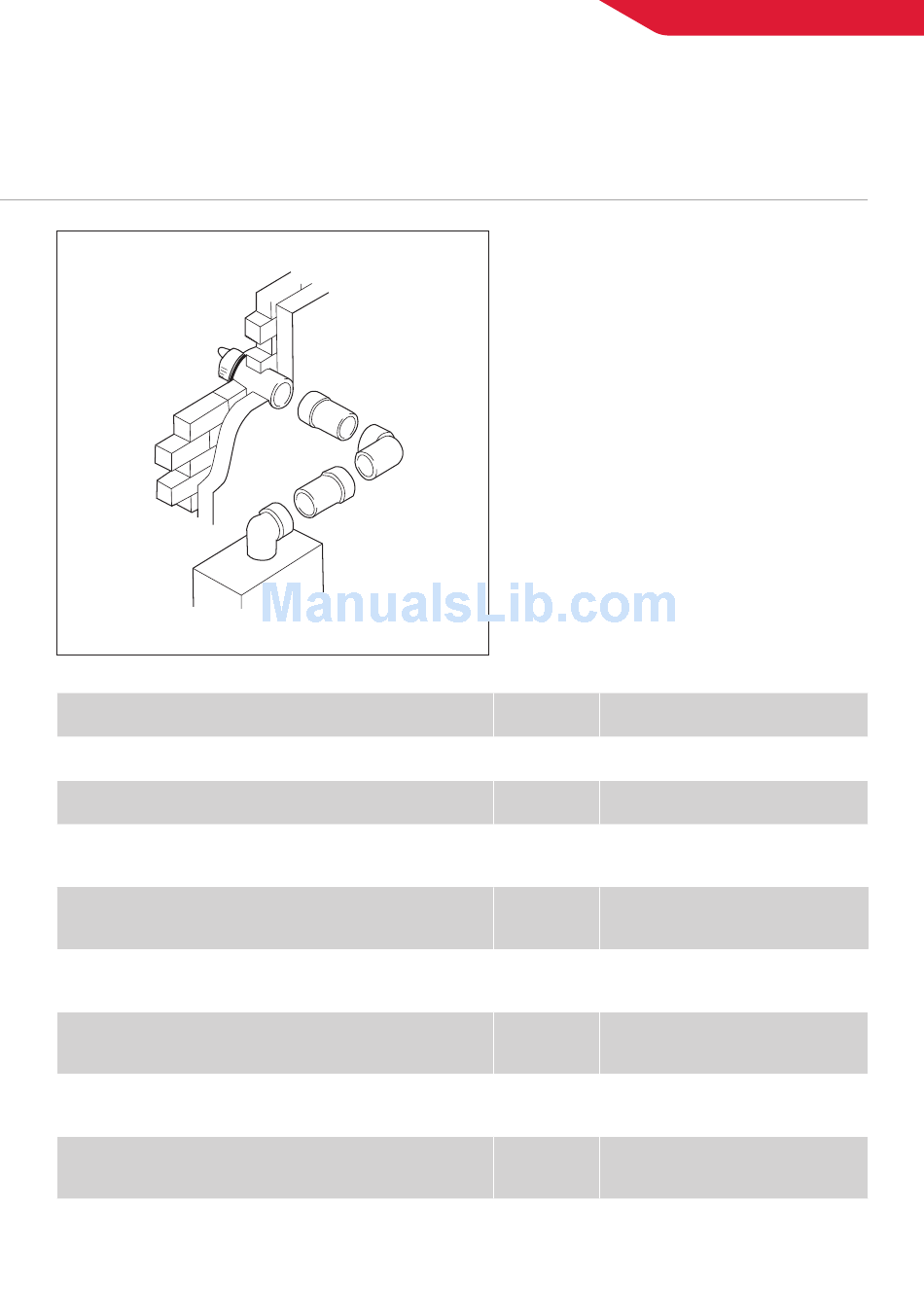

HORIZONTAL
FLUE WITH
1 X 90° ELBOW.
NOTE:
Lengths are sum of all straight lengths
between outside edge of turret to outside
wall face.
Numbers of extension D packs give flexibility
of lengths of straight at either side of elbow.
Where extension D packs are cut to length,
flared end connector must be retained.
IDEAL MAXIMUM STRAIGHT
PART NO. FLUE LENGTH (MM)
208171
203130
208169
203130
208171
5306 (35 max length 5m.
5 x 203129
+ 1x 90° elbow)
203130
208169
5234 (35 max length 5m.
5 x 203129
+ 1x 90° elbow)
203130
208171
7236 (30 max length 7m.
7 x 203129
+ 1x 90° elbow)
203130
208169
7134 (30 max length 7m.
7 x 203129
+ 1x 90° elbow)
203130
208171
8000 (12-24 models max length
8 x 203129
8m. + 1x 90° elbow)
203130
208169
8000 (12-24 models max length
8 x 203129
8m. + 1x 90° elbow)
203130
