Transition Networks CCSF30XX-100 User Manual page 6

CCSCF30xx-10x
6. Is Data Transfer Failing?
YES

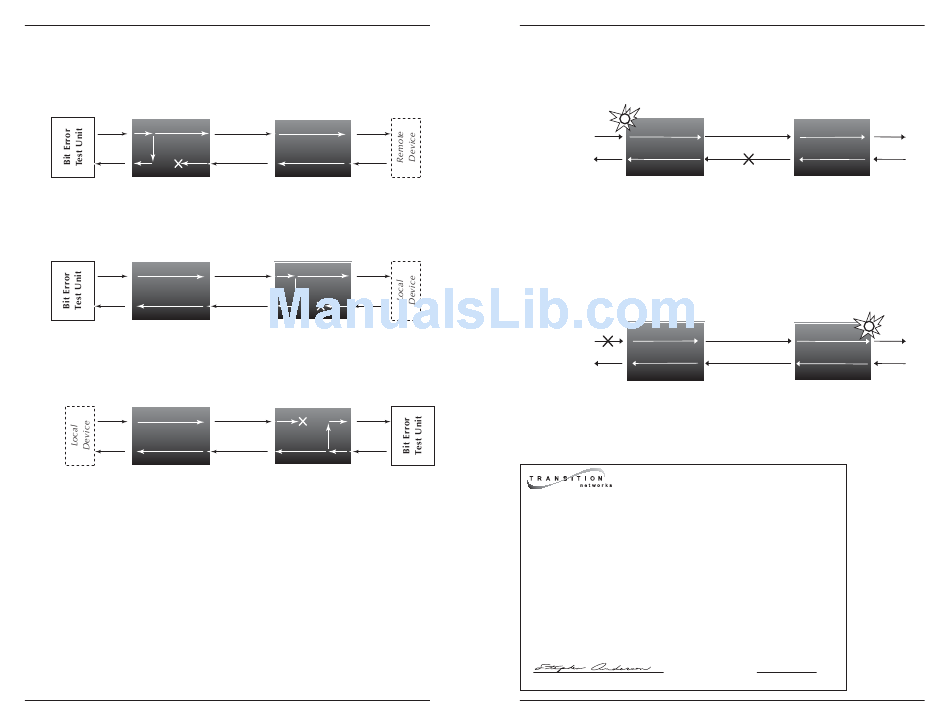

• Verify the local copper connection by starting a local copper loop-
back (set the loop-back switch on the local media converter to "CL")
and then use a bit error test unit at the local location to run a bit error
test.
Local
Copper
Converter
• Verify the local fiber connection by starting a local fiber loop-back at
the remote location (set the loop-back switch on the remote media
converter to "FL") and then use a bit error test unit at the local
location to run a bit error test.
Local
Copper
Converter
• Verify the remote copper connection by starting a local copper loop-
back at the remote location (set the loop-back switch on the remote
media converter to "CL") and then use a bit error test unit at the
remote location to run a bit error test.
Local
Copper
Converter
• Contact Tech Support: 1-800-260-1312, Int'l: 00-1-952-941-7600.
NO
• Proceed to step 7.
10
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Remote
Fiber Copper
Converter
Remote
Fiber Copper
Converter
Remote
Fiber Copper
Converter
7. Is the SDC (Signal Detect / Coax) LED illuminated yellow?
YES
• A failure of the remote unit connected to the coax interface has
caused an Alarm Indication Signal (AIS) on the coax interface.
Correct the remote unit failure.
AIS on the coax link
Coax
• Contact Tech Support: 1-800-260-1312, Int'l: 00-1-952-941-7600.
NO
• Proceed to step 8.
8. Is the SDF (Signal Detect / Fiber) LED illuminated yellow?
YES
• A broken coax link has caused an Alarm Indication Signal (AIS) on
the fiber interface. Correct the coax link failure.
Original
Fault
Coax
• Contact Tech Support: 1-800-260-1312, Int'l: 00-1-952-941-7600.
NO
• Contact Tech Support: 1-800-260-1312, Int'l: 00-1-952-941-7600.
Declaration of Conformity
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: CCSCF30xx-10x Series Media Converter
Part Number: CCSCF3011-100, CCSCF3013-100, CCSCF3014-100,
CCSCF3015-100, CCSCF3016-100, CCSCF3017-100,
CCSCF3018-100, CCSCF3019-100, CCSCF3029-100,
CCSCF3029-101, CCSCF3029-102, CCSCF3029-103,
CCSCF3039-100
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the CCSCF30xx-10x to which this declaration refers is
in conformity with the following standards.
CISPR 22:1993; EN 55022:1998 Class A; EN 55024:1998; FCC Part 15 Subpart B;
61000-3-2:1995+A14:2000; 61000-3-3:1995; CFR 21 subpart J
I, the undersigned, hereby declare that the equipment specified above conforms to the above
Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
Fiber Coax
Original Fault
AIS on the fiber link
Fiber Coax
September 19, 2005
Date
11
