CCSCF30xx-11x
Installation
-- Continued
Power the Media Converter
The media converter is powered through the Transition
Network's PointSystem™ chassis.

Operation

After installation, the media converter should function without
operator intervention. Use the status LEDs to monitor the media
converter operation in the network.
SDC Green on The coax link is up.
Green flashing The coax link is in loop-back mode.
Yellow on AIS (Alarm Indication Signal) on the
coax link.
SDF Green on The fiber link is up.
Green flashing The fiber link is in loop-back mode.
Yellow on AIS (Alarm Indication Signal) on the
fiber link.
PWR Green on The media converter is connected to
external power.
SNMP
See the on-line documentation that comes with Transition Networks
FocalPoint™ software for applicable commands and usage.
Use SNMP at an attached terminal or at a remote location to monitor the
media converter by monitoring:
• Media converter power
• Line build-out
• DS3 / T3 / E3 mode
• Coax link and fiber link status (local and/or remote)
• Coax loop-back and fiber loop-back status (local only)
• AIS detected on coax link and fiber link (local and/or remote)
• Hardware/software mode
Also, use SNMP to enter network commands that:
• Enable/disable loop-back on the copper link (local only)
• Enable/disable loop-back on the fiber link (local only)
6 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications

Coax Cable
Fiber Cable

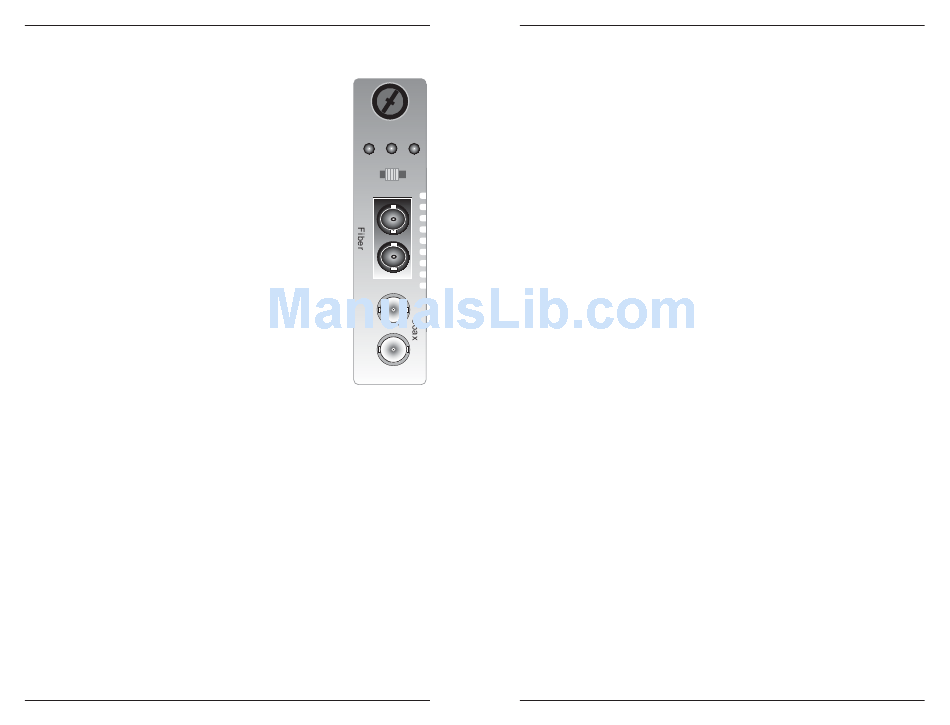

SDC SDF PWR
CL FL
TX
RX
TX
RX
CCSCF
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
DS3 / E3: 75 ohm coax cable with BNC connectors
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
CCSCF3011-100 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm
Link Budget: 11.0 dB
CCSCF3013-100 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm
Link Budget: 11.0 dB
CCSCF3014-100 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.0 dBm
Fiber-optic Receiver Sensitivity: min: -31.0 dBm
Link Budget: 16.0 dB
CCSCF3015-100 1310 nm single mode
Fiber Optic Transmitter Power: min: -8.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm
Link Budget: 26.0 dB
CCSCF3016-100 1310 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm
Link Budget: 29.0 dB
CCSCF3017-100 1550 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm
Link Budget: 29.0 dB
CCSCF3018-100 1300 nm multimode
Fiber-optic Transmitter Power: min: -19.0 dBm
Fiber-optic Receiver Sensitivity: min: -33.5 dBm
Link Budget: 14.5 dB
CCSCF3019-100 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.2 dBm
Fiber-optic Receiver Sensitivity: min: -32.5 dBm
Link Budget: 17.3 dB
CCSCF3029-100 1310 nm (TX) / 1550 nm (RX) simplex
CCSCF3029-101 1550 nm (TX) / 1310 nm (RX) simplex
Fiber-optic Transmitter Power: min: -13.0 dBm
Fiber-optic Receiver Sensitivity: min: -32.0 dBm
Link Budget: 19.0 dB
CCSCF3029-102 1310 nm (TX) / 1550 nm (RX) simplex
CCSCF3029-103 1550 nm (TX) / 1310 nm (RX) simplex
Fiber-optic Transmitter Power: min: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -33.0 dBm
Link Budget: 25.0 dB
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -8.0 dBm
max: -8.0 dBm
max: -2.0 dBm
max: -7.0 dBm
max: 0.0 dBm
max: -7.0 dBm
max: 0.0 dBm
max: -7.0 dBm
max: -14.0 dBm
max: -14.0 dBm
max: -8.0 dBm
max: -3.0 dBm
max: -6.0 dBm
max: -3.0 dBm
max: -3.0 dBm
max: -3.0 dBm
