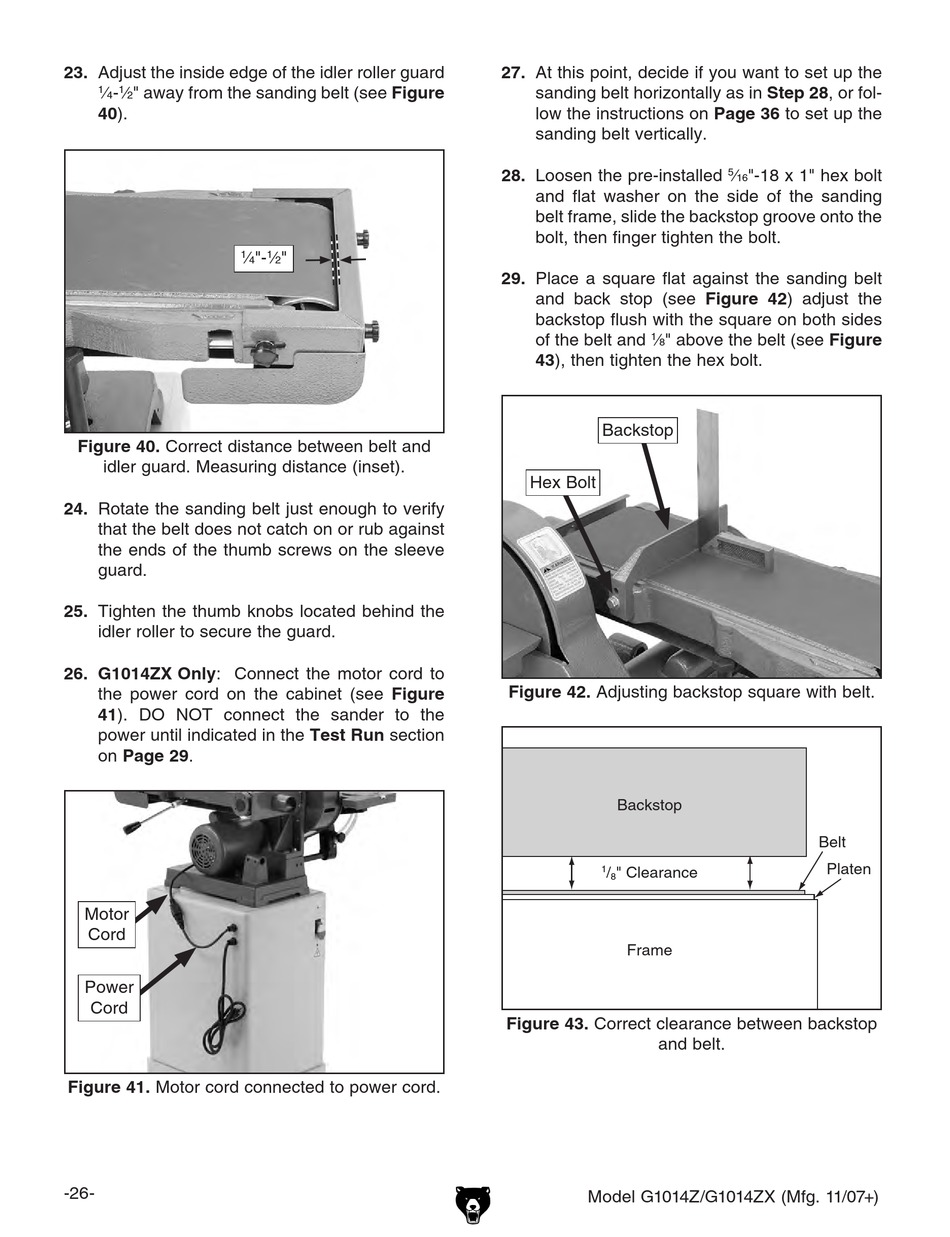

Grizzly G1014Z Owner's Manual page 28

23. adjust the inside edge of the idler roller guard
" away from the sanding belt (see figure
1 ⁄ - 1 ⁄
4 2
40).
1
figure 40. Correct distance between belt and
idler guard. measuring distance (inset).
24. rotate the sanding belt just enough to verify
that the belt does not catch on or rub against
the ends of the thumb screws on the sleeve
guard.
25. tighten the thumb knobs located behind the
idler roller to secure the guard.
26. G1014ZX Only: Connect the motor cord to
the power cord on the cabinet (see figure
41). do not connect the sander to the
power until indicated in the Test Run section
on page 29.
motor
Cord
power
Cord
figure 41. motor cord connected to power cord.
-26-
⁄ "- ⁄ "
1
4 2
27. at this point, decide if you want to set up the
sanding belt horizontally as in Step 28, or fol-
low the instructions on page 36 to set up the
sanding belt vertically.
28. loosen the pre-installed
and flat washer on the side of the sanding
belt frame, slide the backstop groove onto the
bolt, then finger tighten the bolt.
29. place a square flat against the sanding belt
and back stop (see figure 42) adjust the
backstop flush with the square on both sides
of the belt and ⁄ " above the belt (see figure
1
8
43), then tighten the hex bolt.
Backstop
hex Bolt
figure 42. adjusting backstop square with belt.
figure 43. Correct clearance between backstop
and belt.
