SECTION 2: CIRCuIT REQuIREMENTS

110/220v Operation

Serious personal injury could occur if you
connect the machine to power before com-
pleting the setup process. DO NOT connect
the machine to the power until instructed
later in this manual.
Electrocution or fire could
result if machine is not
grounded and installed in
compliance with electrical
codes. Compliance MuST
be verified by a qualified
electrician!
NOTICE
The Model G1014Z/G1014ZX is prewired for
110v operation. If you plan to operate your
machine at 220v, the motor must be rewired
(see page 52).
full Load Amperage Draw
amp draw at 110V (prewired) ................ 12 amps
amp draw at 220V .................................. 6 amps
power Supply Circuit Requirements
the power supply circuit for your machine must
be grounded and rated for the amperage given
below. never replace a circuit breaker on an exist-
ing circuit with one of higher amperage without
consulting a qualified electrician to ensure compli-
ance with wiring codes. If you are unsure about
the wiring codes in your area or you plan to
connect your machine to a shared circuit, con-
sult a qualified electrician.
minimum Circuit size (110V) ................... 15 amps
minimum Circuit size (220V) .................. 15 amps
-12-
power Connection Device
the model g1014z/g1014zX comes prewired
with a nema 5-15 plug for connection to a 110V
outlet. if you rewire the motor to 220V, we recom-
mend using the 6-15 plug and receptacle shown
in figure 2 for 220V.

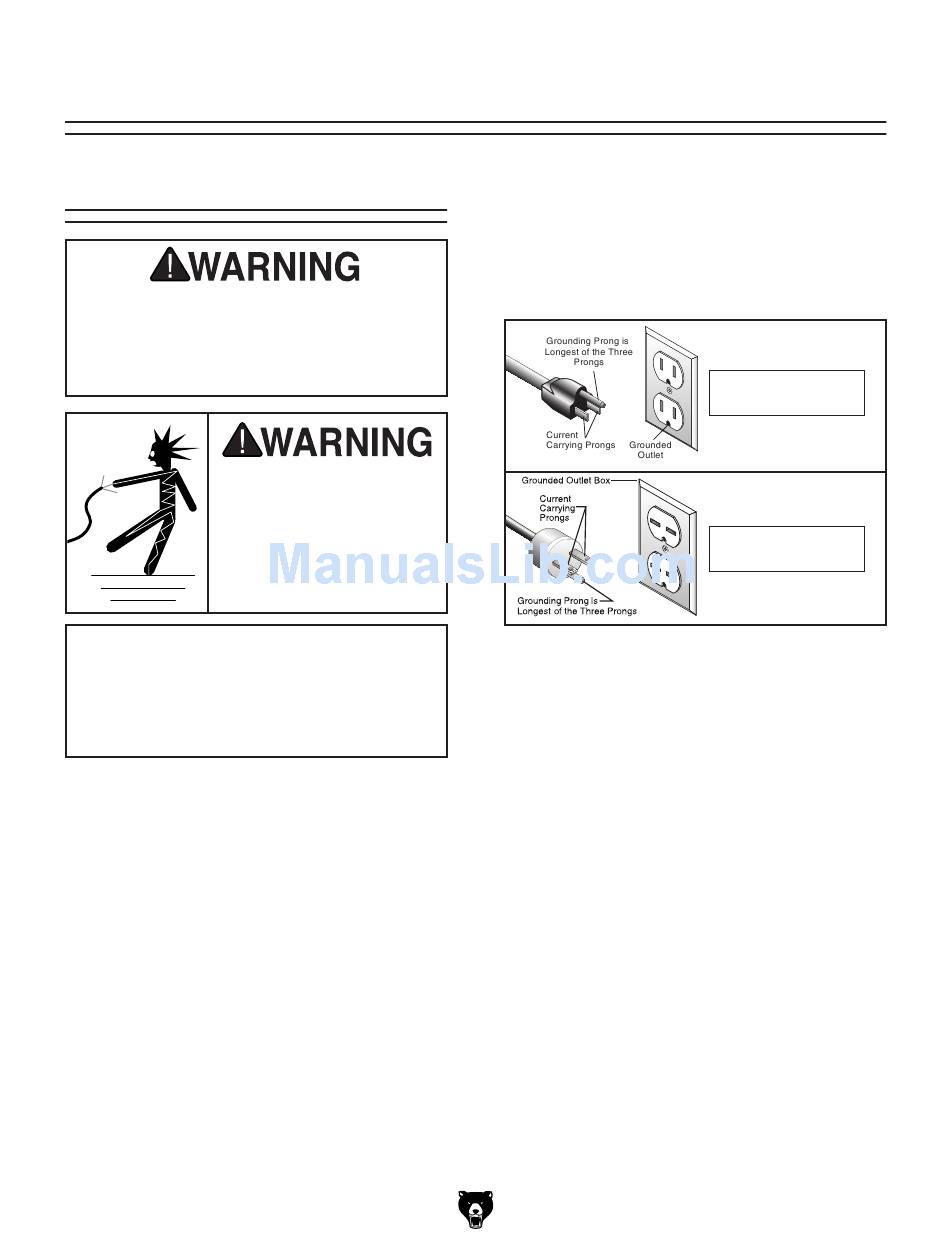

figure 2. recommended plug types.
Extension Cords
using extension cords may reduce the life of the
motor. instead, place the machine near a power
source. if you must use an extension cord:
• For 110V, use at least a 14 gauge cord that
does not exceed 50 feet in length.
• For 220V, use at least a 14 gauge cord that
does not exceed 50 feet in length.
• the extension cord must have a ground wire
and plug pin.
model g1014z/g1014zX (mfg. 11/07+)
5-15 plug & outlet
for 110V
6-15 plug & outlet
for 220V
