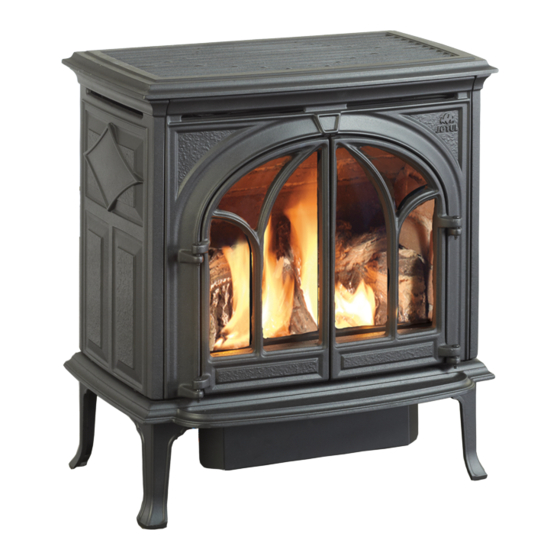

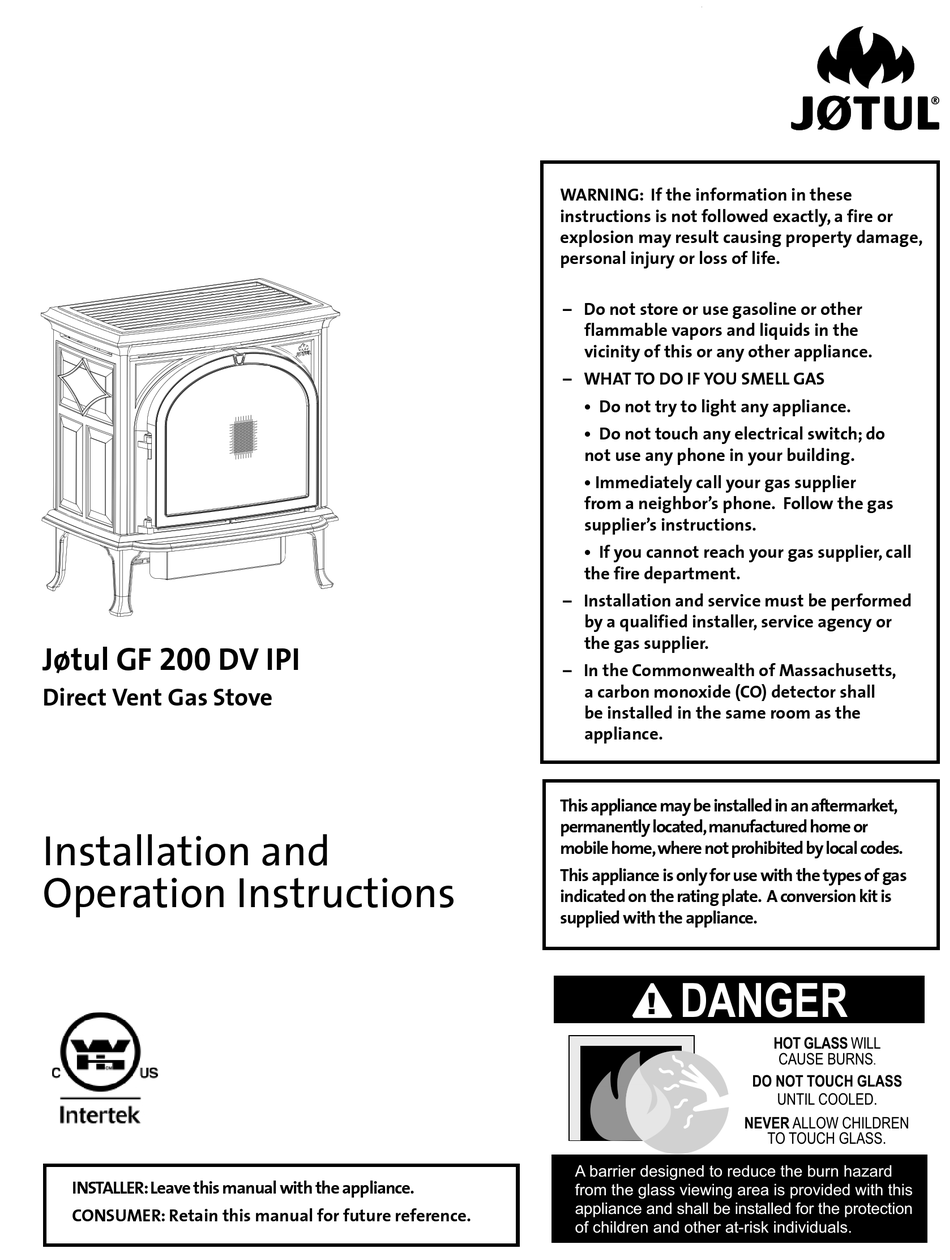

Jøtul GF 200 DV IPI
Direct Vent Gas Stove
Installation and
Operation Instructions
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
139587_05 GF 200 DV IPI October 2015
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
– Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
– In the Commonwealth of Massachusetts,
a carbon monoxide (CO) detector shall
be installed in the same room as the
appliance.
This appliance may be installed in an aftermarket,
permanently located, manufactured home or
mobile home, where not prohibited by local codes.
This appliance is only for use with the types of gas
indicated on the rating plate. A conversion kit is
supplied with the appliance.
DANGER
!
A barrier designed to reduce the burn hazard
from the glass viewing area is provided with this
appliance and shall be installed for the protection
of children and other at-risk individuals.
HOT GLASS WILL
CAUSE BURNS
.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF 200 DV IPI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jøtul GF 200 DV IPI

Summary of Contents for Jøtul GF 200 DV IPI

  • Page 1 139587_05 GF 200 DV IPI October 2015 WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Service Tools

    139587_05 GF 200 DV IPI October 2015 Installation Requirements for the THIS OWNER’S MANUAL PROVIDES INFORMATION TO ENSURE SAFE INSTALLATION AND EFFICIENT, DEPENDABLE Commonwealth of Massachusetts OPERATION OF YOUR FIREPLACE INSERT. PLEASE READ THIS PRODUCT MUST BE INSTALLED BY THESE INSTRUCTIONS IN THEIR ENTIRETY AND MAKE THEM...

  • Page 3: Table Of Contents

    You may also wish to attach your purchase receipt to this page for future Log Set Installation ........ 21 reference. System Check .........22 MODEL NAME: Jøtul GF 200 DV IPI Lillehammer Flame Picture Adjustment ....23 Operation ..........24 SERIAL NUMBER:_______________________________ Maintenance .......... 26 DATE OF PURCHASE:____________________________ Glass Replacement ......

  • Page 4: Specifications

    139587_05 GF 200 DV IPI October 2015 GF 200 DV IPI Unpacking your stove Specifications CAUTION: Enamelled parts may be damaged if handled without care. Use assistants to position the stove. Place removed parts on a towel or other protective Input Rates material.

  • Page 5: General Information

    139587_05 GF 200 DV IPI October 2015 Hardware Bag Contents Safety Information • Fuel Conversion Kit - LP ..........157669 • Rock Wool, 1 oz.............157259 • Wall Shield ..............225426  Due to the high operating temperatures this appliance * Air Deflector ............... 225092 should be located out of traffic and away from •...

  • Page 6: Installation Requirements

    (609 mm) 4) Traffic areas, furniture, draperies, etc. Figure 1. Suggested hearth dimensions shown are The GF 200 DV IPI may be located on or near conven- slightly larger than the minimum requirement. tional construction materials, however, proper clearance to combustibles must be maintained in order to provide adequate air circulation around the appliance.

  • Page 7: Mantel & Trim

    139587_05 GF 200 DV IPI October 2015 Max. Mantel Depth 11.5” 9.5” 7.5” 5.5” Min. Mantel Depth Max. Top Trim Depth = 1” Figure 2. Parallel Installation Clearances. 52 1/2 in. (1333 mm) 46 1/2 in. (1181 mm) 51 in. (1295 mm) 4 1/4 in.

  • Page 8: Venting Requirements

    Vent Restriction The GF 200 DV IPI is equipped with an Exhaust Restrictor The Jøtul GF 200 DV IPI gas stove may be installed with Plate which enables you to regulate the flow of exhaust a vertical or horizontal termination and must conform to gas.

  • Page 9: Termination Matrix

    139587_05 GF 200 DV IPI October 2015 Figure 8. Use 1/4” socket driver to loosen the Exhaust Restrictor dial and adjust as appropriate for your termination zone. 6.09 TERMINATION 4.57 3.04 1.82 1.52 1.21 NOTE: TERMINATION 4/6 VENT MAXIMUM RUN DIRECTLY OFF 4 Ft.

  • Page 10: Baffle & Deflector Use

    139587_05 GF 200 DV IPI October 2015 Exhaust Baffle / Air Deflector Use Air flow throughout the burner and firebox is critical to efficient combustion as well as promotion of a vibrant flame picture. The GF 200 IPI is supplied with...

  • Page 11: Vertical Termination

    139587_05 GF 200 DV IPI October 2015 Vertical Vent Termination The Jøtul GF 200 DV IPI can be vertically vented through a ceiling or to a roof termination with the following guidelines: Vertically terminated vent runs require 4/6 vent pipe.
  • Page 12 Co-linear Vent Installation #991 High Wind Cap Exhaust Gas The GF 200 DV IPI may be vented through a masonry or Class A prefabricated chimney using a Co-linear Flexible Intake Max. Co-linear Vent system approved for use with a solid-fuel burning Height - 35 ft.
  • Page 13 CODE AUTHORITY HAVING JURISDICTION MUST BE CONSULTED PRIOR TO PROCEEDING WITH THIS INSTALLATION METHOD. THIS INSTALLATION IS NOT APPROVED IN CANADA. The GF 200 DV IPI is approved for use with components 4” Flex Pipe of Simpson DuraVent Chimney Kit 46DVA-KMC and not included...

  • Page 14: Horizontal Termination

    139587_05 GF 200 DV IPI October 2015 Horizontal Termination Exhaust Restriction: Under normal circumstances, no 6”  152 mm exhaust restriction is recommended. Set the restriction shutter to Position A - fully open, fig. 8, pg. 9. Figure 19. Any horizontal termination must fall within the shaded ...

  • Page 15: Vent Terminal Clearances

    139587_05 GF 200 DV IPI October 2015 Horizontal Termination Clearance 2 1/2” 12 ” 64 mm 3” 76 mm Figure 24. Termination Clearance to overhangs. Vent Terminal Air Supply Terminals Prohibited in this Area Figure 23. Vent Terminal Clearances, Canada and United States Canadian Installations U.S.

  • Page 16: Fuel Conversion

    139587_05 GF 200 DV IPI October 2015 Fuel Conversion The GF 200 DV IPI gas stove is shipped from the factory equipped to burn NATURAL GAS only. If PROPANE gas is to be used as fuel, the appliance must first be converted for using Propane Conversion Kit 157669 included with the stove.
  • Page 17 139587_05 GF 200 DV IPI October 2015 Fuel Conversion Procedure 1. Turn off gas supply to stove. Pilot Shield 2. Remove the stove Top Plate. 3. Disengage the two Glass Frame Latches and lift the glass panel frame up and out of the stove.

  • Page 18: Gas Supply Connection

    139587_05 GF 200 DV IPI October 2015 Fuel Conversion, cont’d. 15. Correct gas pressure is essential for efficient and safe operation of this appliance. Use a manometer to check pressures as specified in the Gas Pressure section of OPEN this manual (page 19).

  • Page 19: Gas Pressure

    Correct gas pressure is essential for efficient and The decreased atmospheric pressure of higher safe operation of the GF 200 DV IPI gas stove. It is altitudes affects heat value of gaseous fuels. Most important that the correct pressure is established gas suppliers derate the gas intended for use at at the time of the installation.

  • Page 20: Optional Brick Panel Installation

    139587_05 GF 200 DV IPI October 2015 Optional Wall Thermostat 750003 Use only a 750 millivolt DC two-wire circuit wall 1. Lift the Top Plate from the stove. thermostat with this appliance. The thermostat should be placed in the same room as the heater, typically 5 2.

  • Page 21: Log Set Installation

    157666 before installing the log set. See page 20 or the instructions provided with that kit. The GF 200 DV IPI log set must be installed before operating the burner. The log set includes four log pieces, packaged inside the firebox. A quantity of ember stones is included with the log set.

  • Page 22: System Check

    139587_05 GF 200 DV IPI October 2015 System Check 1. PURGING THE GAS LINE: When lighting the appliance for the first time, it will take a few moments to clear the gas line of air. Once this purge is complete, the appliance will operate as described in the lighting instructions.

  • Page 23: Flame Picture Adjustment

    139587_05 GF 200 DV IPI October 2015 Flame Appearance / Air Shutter Adjustment The Air Shutter may be adjusted to provide the best flame picture for your specific installation. The factory setting for Natural gas is 1/16” (1.5mm) open. For Propane, the initial recommended setting is 1/8”...

  • Page 24: Operation

    139587_05 GF 200 DV IPI October 2015 Operation Important Notes WARNING: Check the build date on the shipping crate label. If it has been more than 6 months SEVERE INJURY. THIS APPLIANCE CAN BE SET TO since the build date, be prepared to replace OPERATE THERMOSTATICALLY.
  • Page 25 139587_05 GF 200 DV IPI October 2015 Operation Familiarize yourself with the controls of the GF 200 DV IPI and be sure that anyone else using the appliance is also familiar with the controls and operation procedures. Always follow the Lighting Instructions on the inside back...

  • Page 26: Maintenance

    REPLACE THE PANEL IF ANY SCRATCHES ARE FOUND. USE ONLY JOTUL PN 220576. DO NOT USE ANY OTHER TYPE Your Jøtul GF 200 DV IPI components and its venting OF GLASS. system should be inspected before use and at least annually by a qualified service technician.

  • Page 27: Optional Blower

    139587_05 GF 200 DV IPI October 2015 Optional Variable Speed Blower 155631 Blower Installation CONNECT THE GAS SUPPLY TO THE STOVE BEFORE INSTALLING THIS 1. Unpack and check the contents of the blower kit. There BLOWER. USE A 90° ELBOW OFF THE...

  • Page 28: Blower Operation

    139587_05 GF 200 DV IPI October 2015 Figure 52. 155631 Blower Kit Components used for GF 200 DV IPI Lillehammer. Blower Operation BLOWER The variable-speed blower will enhance heat circulation around the firebox and out into the room. The blower is...

  • Page 29: Appendix

    Figure 54. GF 200 DV IPI Proflame 1 Components Mobile Home Installation THIS APPLIANCE MAY BE INSTALLED AS AN OEM The GF 200 DV IPI can be installed for use in a mobile INSTALLATION IN A MANUFACTURED (MOBILE) HOME home in the U.S. and Canada provided: AND MUST BE INSTALLED IN ACCORDANCE WITH 1.

  • Page 30: Illustrated Parts Lists

    139587_05 GF 200 DV IPI October 2015 GF 200 DV IPI Lillehammer Illustrated Parts Breakdown Figure 55. Exterior cast iron parts. Replacement Log Set Parts / See pgs. 21-22. Cast Iron Parts Matte Black Brown Majolica Paint Enamel No. Part No.
  • Page 31 139587_05 GF 200 DV IPI October 2015 YEL/GRN Figure 56. GF 200 DV IPI Valve Assembly and DFC Components. No. Part No. Description No. Part No. Description 117917 Screw, #8 x 1/2” SL Blk Oxide 222924 Proflame 1 IPI Ignition Board...
  • Page 32 139587_05 GF 200 DV IPI October 2015 Figure 57. GF 200 DV IPI Pilot & Burner assembly and associated hardware. No. Part No. Description No. Part No. Description 225439 Pilot Shield, High Wind (Optional Kit 157685) 117917 Screw 8 x 12 1/2 SL Blk Oxide...

  • Page 33: Accessory Listing

    129781 Adaptor, 4 in. (Custom) 129783 Adaptor, 6 5/8 in. (Custom) 157674 Vertical Vent Adaptor Kit, 5/8-to-4/6 157684 Wire Harness, Controls - GF 200 DV IPI GF 200 DV IPI Accessories Description Part No. Remote Control 224910 Wall Thermostat 750003...

  • Page 34: Warranty Statement

    139587_05 GF 200 DV IPI October 2015 This warranty does not cover the following: Jøtul Gas Product 1) Repair or replacement of parts that are subject to normal wear and tear during the warranty period or to parts that may require replacement Limited Lifetime Warranty in connection with normal maintenance.

  • Page 35: Lighting Instructions

    139587_05 GF 200 DV IPI October 2015 LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. This appliance is equipped with an ignition device which automatically lights the pilot.
  • Page 36 139587_05 GF 200 DV IPI October 2015 This appliance must be installed in conformance with local and national building regulations. Before beginning the installation, it is important that these instructions be carefully read and understood. Jøtul maintains a policy of continual product development. Consequently, products may differ in specifi- cation, color or type of accessories from those illustrated or described in various publications.
