Unpacking

To protect your stove, we recommend that you do not
remove the plastic packaging from the stove until you have
completed assembly.

Service package

The service package comprises the following:
• Smoke gas connecting piece
• Ball valve
• Plastic plugs for transport safety bores at the bottom of
the stove
• Various tools
• Hook for shaker grate
• Glove
• Fire starters for first lighting
• Seal for connecting piece

Load bearing underlay

All of the products in our portfolio are classified as light-duty
fireplaces; in most cases, there is no need to reinforce the
floor, so you can typically use the normal floor.

Floor plate

The floor plate is designed to protect the floor and flammable
material against sparks.
As a general rule, the floor plate should cover the floor 300
mm to the front, and 150 mm to the side of the wood stove
door. The floor plate can be made of steel or glass, and
the stove can be installed on brick, natural stone or similar
materials.
This Scan wood oven has an integrated floor plate and is
approved for installation directly on flammable material.

Adjusting screw

Your Scan wood stove has two adjusting screws at the base
which you can use to level the stove.
Cover plate
A S S E M B LY

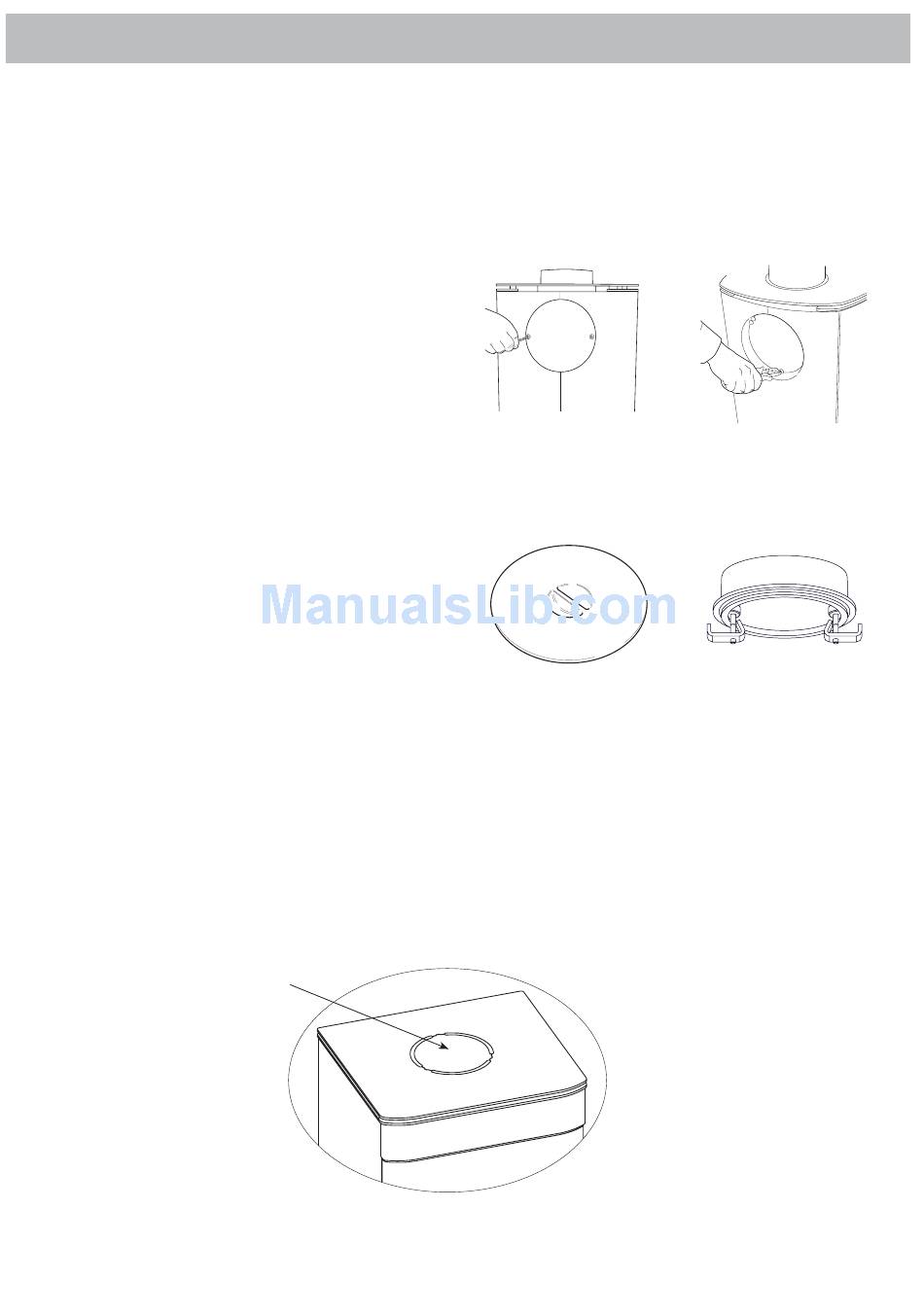

Setting up the stove for use with a
rear outlet

Smoke gas connecting piece rear outlet

1. Use the tools provided
to remove the cover plate
at the rear of the wood
stove.
3. Loosen the internal
cover (boiler plate) from
the inside and remove.
You will need this plate
later as a seal and cover
for the top plate.
5. Insert the boiler plate into the smoke outlet at the top.
Insert the cover plate into the hole in the top plate.
3
2. Use a pincers to cut off
the anchoring points on
the internal plate.
4. Attach the loose con-
necting piece from the
outside and fix in place
with the fittings provided
from the the service pack-
age.
