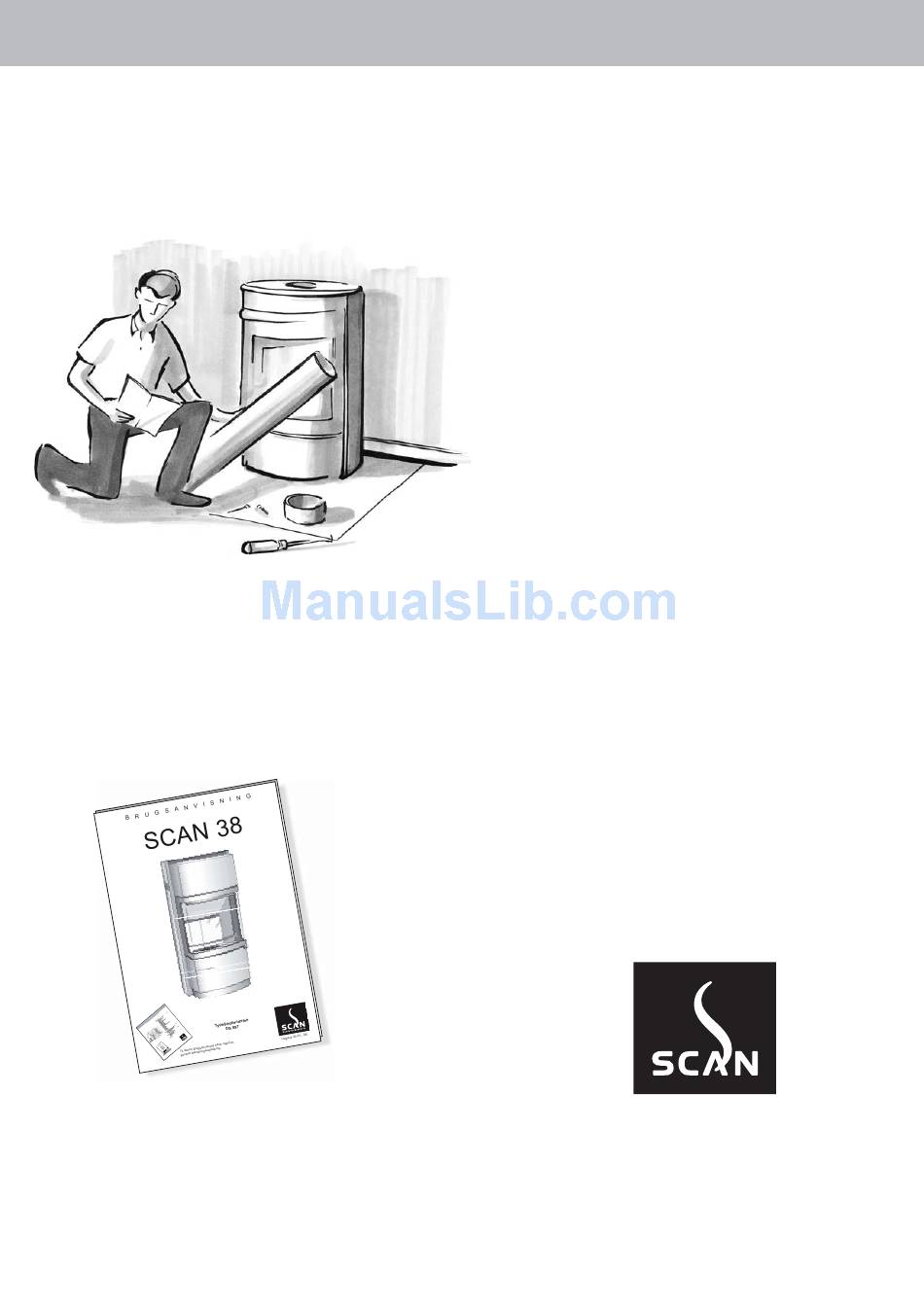

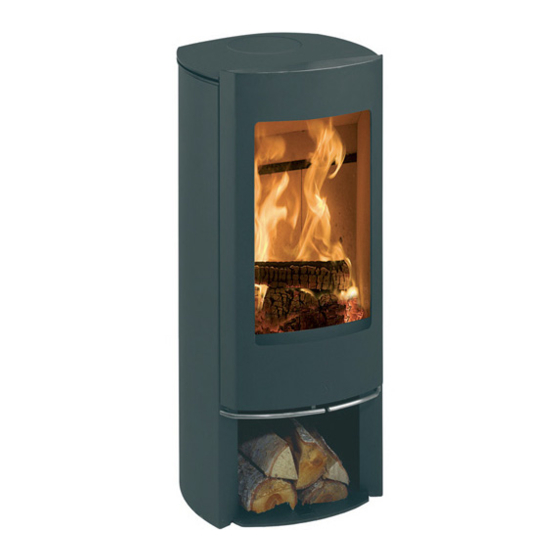

INST RUC TIONS F OR INS TALL ATION
Including Directions for Use and Stoking
We recommend that you read this manual as
well as the instructions for your specific model
before beginning the installation.
Contents:
General advice and instructions . . . . . . . .2-3
Mounting instructions . . . . . . . . . . . . . . . .4-7
chimney
Directions for use and stoking . . . . . . . . .8-11
Trouble shooting . . . . . . . . . . . . . . . . . . . . 12
Edition 05.10.2010 - GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCAN 45 Mini
Summary of Contents for SCAN 45 Mini
-
Page 1: Table Of Contents
INST RUC TIONS F OR INS TALL ATION Including Directions for Use and Stoking Contents: General advice and instructions ..2-3 Warranty conditions Approvals Before the installation Accessories Mounting of tiles and soapstones Quality control Inspection Connection to the chimney Bearing foundation... -
Page 2: General Advice And Instructions
Scan A/S instructions. We ask you please to read this manual as well as the • At any change in the original condition of the Scan prod- instructions for your specific model before beginning the uct or its accessories. -
Page 3: Quality Control
G ENERAL ADV IC E A ND IN STRUCTIO NS Quality control an original Scan base plate, floor tiles, or the like. We re- commend that the base plate extends at least 150 mm from the sides and at least 500 mm from the front of the stove All products have undergone a thorough quality control to prevent any sparks from ruining your carpet or floor. -
Page 4: Mounting Instructions
M OUNTIN G INS TRUCTI ONS Connection to an existing brick-built chimney Before starting the installation, it is important that you have your chimney inspected by the chimney sweep. This ensures that the chimney is dense and has the appropriate diameter for your stove. - Page 5 Preparation of the stove for Top outlet and elbow rear discharge to a brick-built chimney Scan 60 and 61: we refer to the specific instructions for these stoves. Fig. 1 (1-4) 2. Cut free the inner 1. Remove the cover...
-
Page 6: Top Discharge With Direct Connection To Steel
The safety fit- ting's function is to prevent the chimney sweep's tools from destroying the ceramic smoke deflector. Scan 60 and Scan 61: We refer to the specific instructions for these stoves. Read carefully the instructions from the chimney manu-... -
Page 7: External Fresh-Air Supply
This Several Scan stoves are also available with a special air con- can be done in various ways. For instance, you can mount a tainer (accessory) that takes the external air and introduces it damper in the external wall as close to the stove as possible. -
Page 8: Directions For Use And Stoking
Ceramic packing cord The stove is cleaned with a moist cloth. Spray lacquer is All Scan stoves are equipped with ceramic packing cord to available for repair of possible damages/scratches. Your ensure the tightness of the doors and the glasses. This pack- dealer has the right spray in the right colour. -
Page 9: Handling Of Wood
DI RECTIO NS FOR USE A ND STO KING Handling of wood Preparation It is absolutely prohibited to fire with You obtain the best fuel if you cut down, saw, and chop painted or chemically treated wood, or driftwood from the the wood before the 1 st May (Northern hemisphere). -
Page 10: Lighting And Stoking
D IREC TION S FOR USE AND STO KI NG Lighting and stoking Please refer to the specific installation instructions con- The first lighting cerning the recommended quantities of wood and the For lighting use pieces of crumbled paper (newspaper) and/ position of the regulation handles on your stove. - Page 11 D IREC TI ONS FO R U SE A ND STOKI NG Cleaning Open fireplace Be careful when you remove ash from the stove. There may If the stove is used as an open fireplace with open doors, you be embers left as long as 24 hours after the stove was last must use a spark guard of wire mesh or glass.
-
Page 12: Trouble Shooting
• Is the wood dry? • The door is closed too fast when refuelling. • The logs are too large. Scan A/S - DK-5492 Vissenbjerg...
