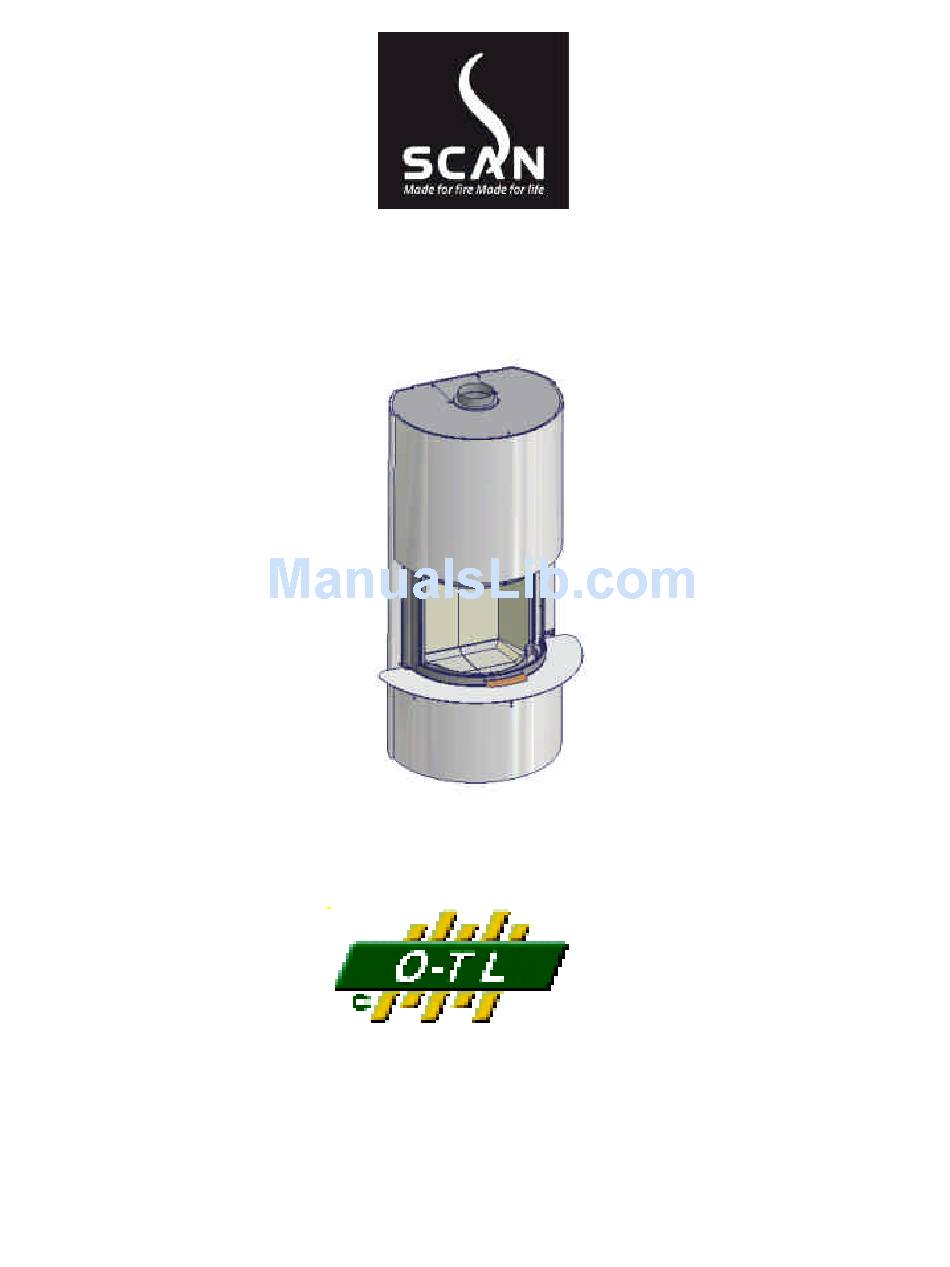

INSTRUCTIONS FOR
INSTALLATION AND USE
SCAN DSA 5
FREESTANDING STOVE
T e s t e d &
B e a v e r t o n
L i st e d b y
O r e g o n U S A
O M N I - T e s t L a b o r a t o r i e s , I n c .
Save these instructions
May 2004
KROG IVERSEN & CO. A/S, DK-5492 VISSENBJERG, DENMARK
1

Advertisement

Table of Contents
loading

Related Manuals for SCAN SCAN DSA 5

Summary of Contents for SCAN SCAN DSA 5

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND USE SCAN DSA 5 FREESTANDING STOVE T e s t e d & B e a v e r t o n L i st e d b y O r e g o n U S A O M N I - T e s t L a b o r a t o r i e s , I n c .

  • Page 2: Table Of Contents

    Table of contents: 1. INTRODUCTION..........................3 Safety and environment testing......................3 Important information:...........................3 SAFETY PRECAUTIONS........................4 Locking of the door:..........................5 Features and items included:........................5 2. INSTALLATION ..........................6 Pre Installation Check List:........................6 Specification............................7 Technical information..........................7 Floor Protection requirements: ......................8 Parallel installation:..........................8 Corner installation:..........................9 Ceiling Height ............................9 Combustible Wall Clearance: ......................10 Non-Combustible Wall Clearances:.....................10 Draft Requirements:..........................11...

  • Page 3: Introduction

    We welcome you as a new owner of a Scan DSA 5. In purchasing a DSA 5 you have joined the growing ranks of concerned individuals whose selection of energy systems reflects both a concern for the environment and aesthetics. The DSA 5 is one of the finest home stoves the world over. This manual will explain the installation, operation and maintenance of the DSA 5.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS USE A METAL CONTAINE R WITH A TIGHT FITTING LID TO DISPOSE OF ASHES. NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SI M ILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS STOVE.

  • Page 5: Locking Of The Door

    Locking of the door: When unpacking the stove the door is locked. To unlock the door pull out in the knob and turning it counter- clockwise. The lock should not be activated during normal use, as it will then be needlessly worn and scratch the steering axis.

  • Page 6: Installation

    2. INSTALLATION IF THE STOVE IS NOT INSTALLED PROPERLY, A HOME FIRE MAY RESULT, TO REDUCE THE RISK, PLEASE CAREFULLY FOLLOW THE DIRECTIONS FOR INSTALLATION DO NOT INSTALL IN A MOBILE HOME Pre Installation Check List: Before you begin an installation, review your plans, check to see: 1.

  • Page 7: Specification

    Specification inch 1650 34 1/2 24 1/4 9 1/2 Technical information Technical information Output 63.000 BTU 19 kw Min-Max output 27.500-63.000 BTU 8 - 19 kw Size of room 1400 - 2900 Sq f 140 - 290 M Fire box opening 16 7/8 x 22 5/8 inch 430 - 575 Mm Flue outlet with built on adapter...

  • Page 8: Floor Protection Requirements

    Floor Protection requirements: The floor protector must extend completely beneath the stove and to the front, sides and rear as indicated below. The floor protection needs only to be a standard ember protection. USA: For USA the protected area must cover the floor completely under the stove and extend 16" to the front of the fuel door opening and 8"...

  • Page 9: Corner Installation

    Corner installation: Floor protection measurements and clerence 16" 9" 86 ½” 121 ¾” Canada 2250 3182 Ceiling Height The stove must not be installed in a location where the ceiling height is less than 8' (240 cm) tall. Do not install in an alcove or confined space.

  • Page 10: Combustible Wall Clearance

    Combustible Wall Clearance: WARNING: Minimum clearance to combustibles must be observed when installing this stove. The listed clearances for your DSA 5 are determined in laboratory tests. If the stove is to be placed at side and back walls of combustible materials the following clearances must be kept: Clearances to combustible surfaces* *The clearances may only by reduced be means...

  • Page 11: Draft Requirements

    Draft Requirements: The DSA 5 is only one component of the total system. The venting system is equally important for achieving the required flow of combustion air to the firebox and for safely removing unwanted combustion by products from the stove. If the venting system’s design does not promote these ends, the system may not function properly.

  • Page 12: Chimney Height Requirements

    Chimney height requirements: The chimney must extend 3 feet above the level of roof penetration and a minimum of 2 feet higher than any roof surface within 10 feet. Check with your local building officials for additional requirements for your area. The condition of the chimney and height is very important;...

  • Page 13: Chimney Connection

    Chimney Connection The chimney connector is ether a single or double walled pipe, depending on the type of installation, used to connect the stove to the chimney. For use with the stove the chimney connector MUST be 6” in diameter, with a minimum thickness of 24 gauge black steel or 26 gauge blued steel. Aluminium and galvanized steel pipe is not acceptable for use with the stove.

  • Page 14: Operation

    Your stove is designed for burning dry natural well-seasoned wood only (If your wood supply is not seasoned, ask your authorized SCAN dealer where to obtain seasoned fuel in your area). Wood should be stored in a dry place for at least one year before being used for fuel. Some trees have very high moisture contents and it is necessary to thoroughly dry the wood.

  • Page 15: Smoke Detectors

    Smoke Detectors Since there are always several potential sources of fire in any home, we recommend installing smoke detectors. Do not install them too close to the stove as heat can activate them. Room Ventilation During the combustion, oxygen taken from the room air is used. In rare cases it may be necessary to mount a fresh-air duct on the stove.

  • Page 16: Maintenance

    4. MAINTENANCE DISPOSAL OF ASHES: ASHES SHOULD BE PLACED IN A METAL CONTAINER WITH A TIGHT FITTING LID. THE CLOSED CONTAINER OF ASHES SHOULD BE PLACED ON A NONCOMBUSTIBLE FLOOR OR ON THE GROUND, WELL AWAY FROM ALL COMBUSTIBLE MATERIALS, PENDING FINAL DISPOSAL.

  • Page 17: Removing Baffle Plate For Cleaning

    Removing baffle plate for cleaning The baffle plate must be placed according to the pictures below, fig 3 & 4. When the stove and the chimney are cleaned/swept, a layer of soot may be left on the baffle plate. This can be removed by tipping the baffle plate. The soot will then fall into the stove, where it is easily removed.

  • Page 18: Cleaning The Glass Panel

    Cleaning the glass panel The door must be dismounted from the stove before installing a new glass. When firing with moist wood, during the first lighting, or by a small fire/heat requirement, a bad combustion may arise, which can cause that the glass gets more or less sooty. The glass is easily and effectively cleaned when using a commercial glass cleaner designed for stoves (available at your dealer) do not use abrasive cleaners.

  • Page 19: Replacement Of Door Glass

    Replacement of door glass: 1. Swing out the door (see under "cleaning the glass panel", point 1-4). THE DOOR IS NOT TO BE UNLOCKED WHILE WORKING WITH IT. 2. Unscrew all visible screws (1, fig. 8) in the inner frame and remove the inner frame. 3.

  • Page 20: Dismounting/Mounting Of The Door

    Dismounting/mounting of the door Generally, we do not recommend dismounting the door. If you do, you must be at least two persons, so that one can hold the door, when the last screw is removed. 1. Swing out the door (see under "Cleaning the glass panel", point 1-4). THE DOOR MUST NOT BE UNLOCKED WHILE WORKING WITH IT.

  • Page 21: Replacement Of The Steering Axes/Counterweights

    Replacement of the steering axes/counterweights We recommend that this be done by the authorized SCAN-dealer. It is done in the following way: 1. Swing out the door or dismount it (it is only necessary to dismount the door when replacing the left counterweight).

  • Page 22: Troubleshooting

    Firebox lining layout 6. TROUBLESHOOTING Smoke: - Insufficient chimney draught! - Check chimney height. Recommended height is minimum 15 feet. - Check if the chimney has the right dimension. - Check if the smoke pipe or chimney is blocked. - Check if the chimney has the right height compared to the surroundings. - Wood with too high moisture content.

  • Page 23: Warranty Provisions

    7. WARRANTY PROVISIONS All SCAN wood stoves, inserts and stoves are subject to a strict quality control, before they are shipped to the customer and end user. However, an error may occur, wherefore we back all SCAN wood burning stoves, inserts and stoves with an extensive five years limited warranty.
