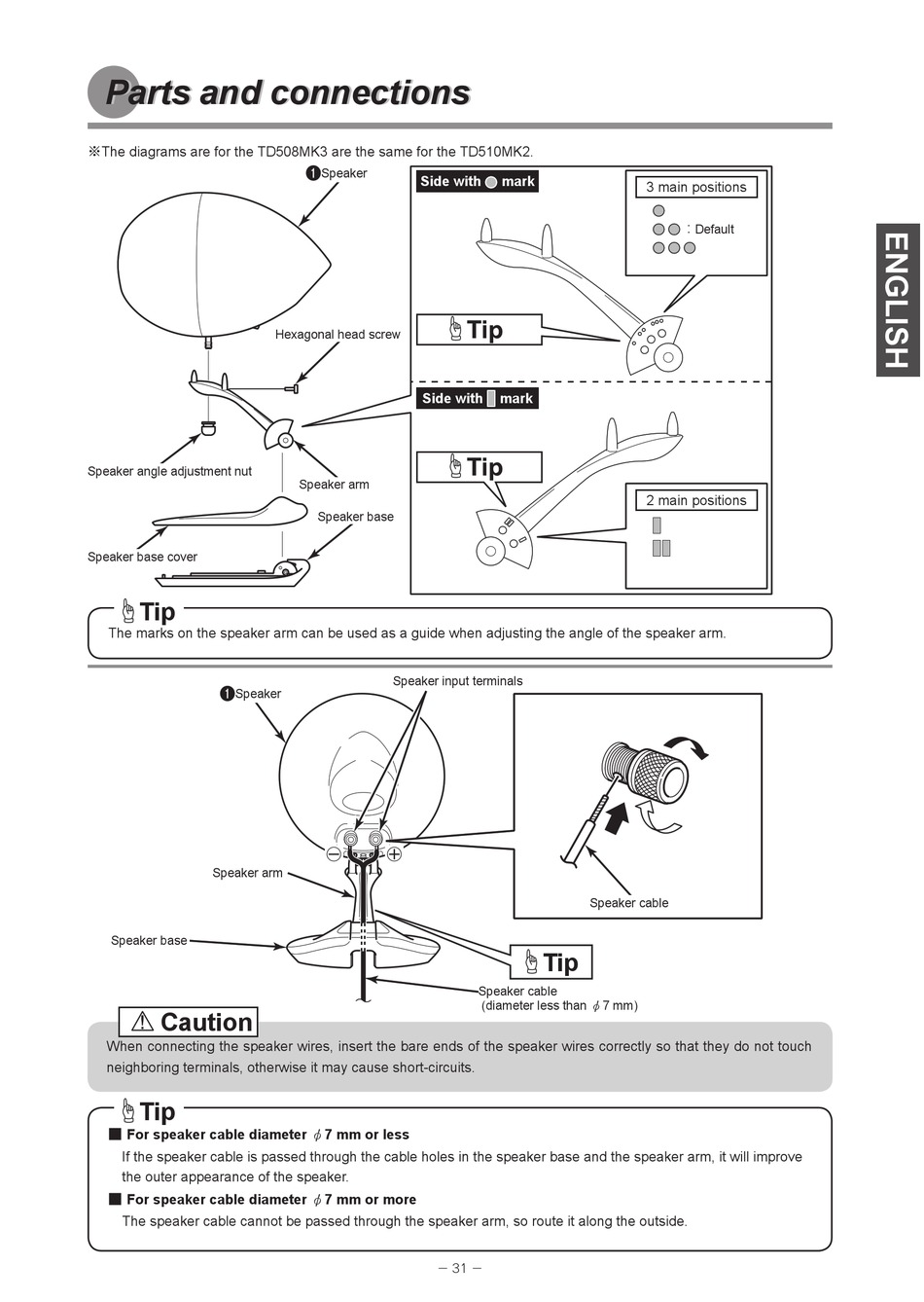

Parts and connections

Parts and connections
※ The diagrams are for the TD508MK3 are the same for the TD510MK2.
Speaker angle adjustment nut
Speaker base cover
Tip
The marks on the speaker arm can be used as a guide when adjusting the angle of the speaker arm.
❶
Speaker
Speaker arm
Speaker base
Caution
When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not touch
neighboring terminals, otherwise it may cause short-circuits.
Tip
■ For speaker cable diameter φ7 mm or less
If the speaker cable is passed through the cable holes in the speaker base and the speaker arm, it will improve
the outer appearance of the speaker.
■ For speaker cable diameter φ7 mm or more
The speaker cable cannot be passed through the speaker arm, so route it along the outside.
❶
Speaker
Side with
Hexagonal head screw
Side with
Speaker arm
Speaker base
Speaker input terminals
⊖ ⊕
− 31 −
mark
3 main positions
mark

2 main positions
Speaker cable
Tip
Speaker cable
(diameter less than φ7 mm)
 ：Default
