On a floor or shelf On a floor or shelf
- Adjusting the angle of the speaker arm -
Tip
･ If you wish to use the speaker at the standard angle position (as it is when removed from its packaging), there is
no need to adjust the angle.
･ You can increase the speaker angle by 15° from its standard position (as it is when removed from its packaging)
by adjusting the speaker arm. (The angle of the speaker [including fine adjustments➡refer to P.32] can be
adjusted by up to a maximum of +30°.)

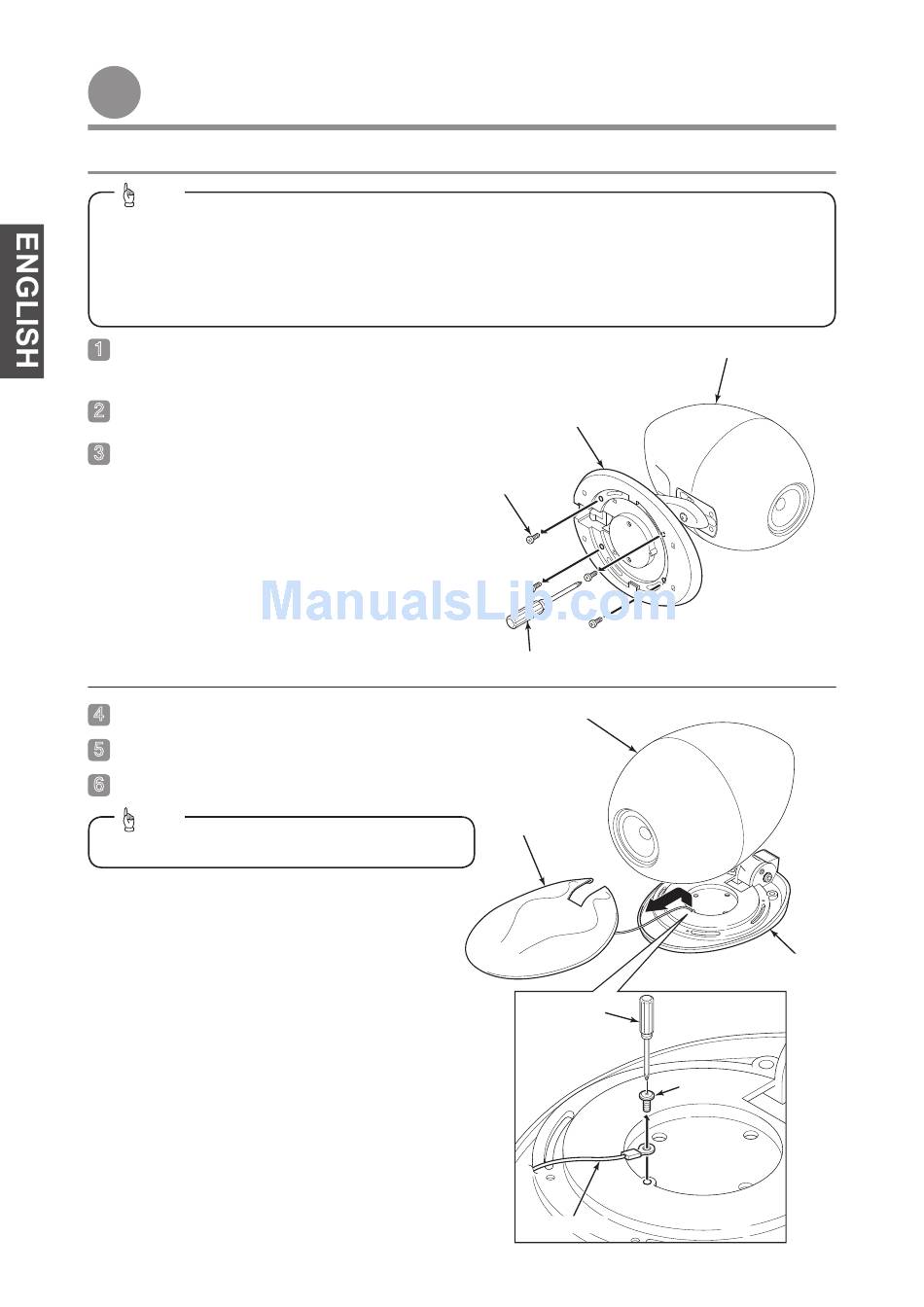

1

Spread a soft cloth over the floor in order to prevent
damaging the surface of the speaker.
2

Place the speaker on its side.
3

Remove the screws from the bottom of the speaker base
and keep to hand for use later.
4

Stand the speaker upright.
5

Remove the cover from the speaker base.
6

Remove the safety cable from the speaker base.
Tip
Keep screws to hand for use later.
Speaker base
Screws X4
Screwdriver
❶
Speaker
Speaker base cover
Screwdriver
Safety cable
− 3 −
❶
Speaker
Speaker base
Screw
