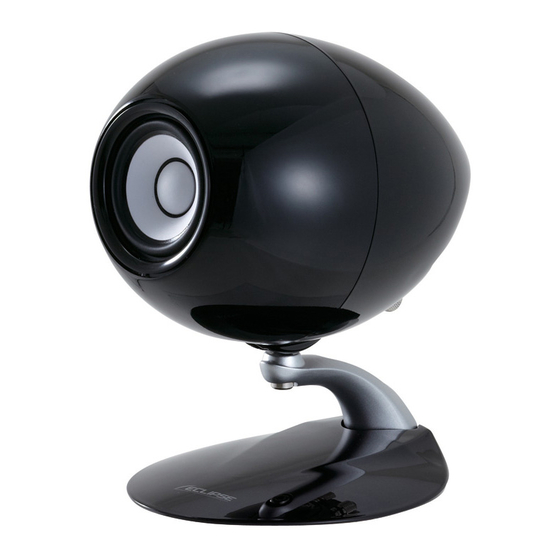

Eclipse TD307MK2A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

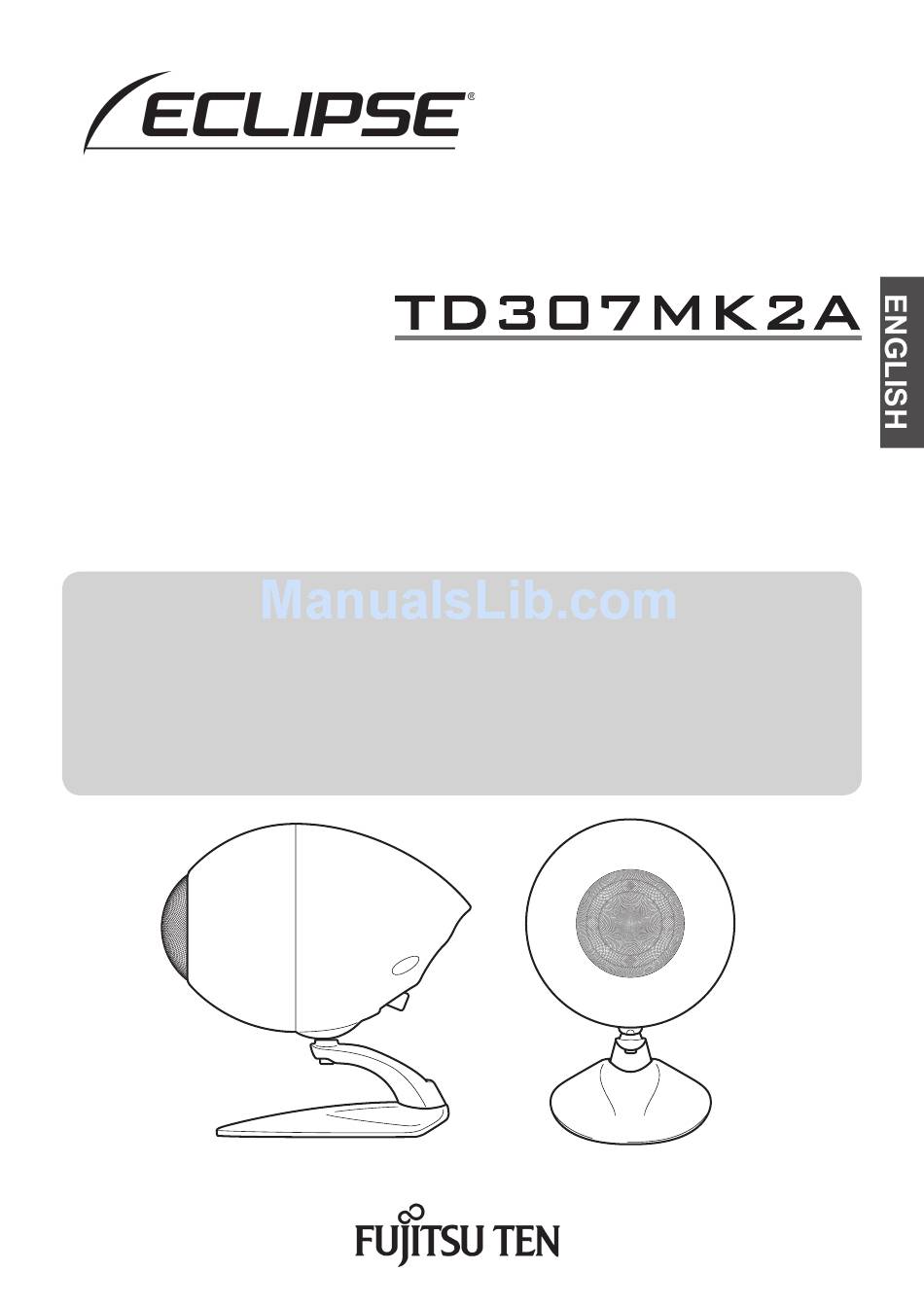

OWNER'S MANUAL
･Thank you for purchasing this product.
･Please read this owner's manual thoroughly prior to making any connections.
･ Depending on the specific installation specialised skills maybe required. In such a case, please consult a
qualified technician.
･Installation by two people is always advised.
Keep this Owner's Manual together with the Warranty Certificate in a safe place for future reference.
MANUAL No. 090001-14960700

Advertisement

Table of Contents
loading

Related Manuals for Eclipse TD307MK2A

Summary of Contents for Eclipse TD307MK2A

  • Page 1 MANUAL No. 090001-14960700 OWNER'S MANUAL ･Thank you for purchasing this product. ･Please read this owner's manual thoroughly prior to making any connections. ･ Depending on the specific installation specialised skills maybe required. In such a case, please consult a qualified technician. ･Installation by two people is always advised.

  • Page 2: Table Of Contents

    Contents Contents Parts list Before Safety guidelines installation Checklist before use Speaker installation example Parts and connections Adjusting the speaker angle Removing the speaker grille Installation Reversing the position of the speaker arm to the base On a ceiling or wall Care / Specifications Warranty and After-Service Parts list...

  • Page 3: Safety Guidelines

    Safety guidelines Safety guidelines The following WARNING and CAUTION signs are used throughout this owner’s manual as well as on the product. These signs alert the installer and users of important safety information to avoid risk of injury and damages to the product.

  • Page 4: Speaker Installation Example

    Speaker installation example Speaker installation example ･ Adjust the speaker angle. ➡Refer to P.22. Installation on a floor or shelf ･ Example of installation to a ceiling or wall. ➡ Refer to P.25. Ceiling installation ･ Install the speaker to the ceiling or wall. ➡Refer to P.26 - 30. ･...

  • Page 5: Parts And Connections

    Parts and connections Parts and connections ① Speaker ⊖ ⊕ (Black) (Red) Speaker arm Speaker input terminals Speaker wire Cable entry Speaker wire point Speaker base (diameter less than φ7 mm) Caution When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not touch neighboring terminals, otherwise it may cause short-circuits.

  • Page 6: Adjusting The Speaker Angle

    Adjusting the speaker angle Adjusting the speaker angle Use the Allen key (small) which is supplied with the speaker to loosen the angle adjustment bolt +30° underneath the speaker. -25° 　 The speaker is heavy, so hold it with your hand when adjusting the angle.

  • Page 7: Removing The Speaker Grille

    Removing the speaker grille Removing the speaker grille 　 You can remove the speaker grille of the speaker if desired. Insert the end of a flat-tipped screwdriver into the Speaker grille notch of the speaker grille, and lever it upward to lift the speaker grille.

  • Page 8: Reversing The Position Of The Speaker Arm To The Base

    Reversing the position of the speaker arm to the base Reversing the position of the speaker arm to the base 　 The TD307MK2A speaker can be installed in a variety of configurations by changing the way the speaker base and speaker arm are installed. 　...

  • Page 9: On A Ceiling Or Wall

    On a ceiling or wall On a ceiling or wall This product can be installed on ceilings and walls. If installing on a ceiling or a wall, you will need to use extra screws (sold separately). When installing the speaker, be sure to fit the safety cable. Caution ･...
  • Page 10 - Preparation for installation - Remove the screws from the bottom of the speaker Screwdriver base. 　 The screws which are removed will not be used. Screws x3 Retain these screws in case they are required in the future. Speaker base ①...
  • Page 11 Remove the hexagonal nut and washer which are ③ Allen key (large) securing the speaker unit and the speaker arm. Remove the speaker arm from the speaker unit. Hexagonal nut Washer Remove Caution The speaker unit is heavy, so use care when removing it.
  • Page 12 Fix the speaker base to the surface as shown using suitable screws (sold separately). Speaker base Caution • Securely fix the speaker base to prevent the speaker from falling down. • The screws which are used to fix the speaker base to the ceiling or wall are not provided with the Screws (sold separately) product, so purchase them separately.
  • Page 13 Route the speaker wires. Speaker base 　 Speaker wire ( 7 mm diameter or • To make it easier to connect the speaker wires to more) the speaker, leave about 8 inches (20 cm) of wire available. ■ For speaker wire diameter φ7 mm or less The speaker wires (sold separately) can be Approx.
  • Page 14 - Assembling the speaker - Hexagonal nut Securely fix the speaker arm to the speaker unit. Washer 　 Securely tighten the hexagonal nut and the washer. Speaker arm ① Speaker Install the safety cable to the ceiling. ② Safety cable Caution Install the safety cable securely to the ceiling to prevent the speaker from falling down.

  • Page 15: Care / Specifications

    Care / Specifications Care / Specifications ■Maintenance Before cleaning, be sure to turn off the power supply for all connected equipment and disconnect the power cords from the electrical outlets. Remove any dirt from the unit by lightly wiping with a soft dry cloth. If required moisten the cloth to remove surface dirt, then dry with a soft cloth.

  • Page 16: Warranty And After-Service

    ■Repairs and Enquiries Please contact the following or the store you purchased the goods. Eclipse TD (UK) Ltd. Tel : ＋44 (0) 20 7328 4499 Fax : ＋44 (0) 20 7624 6384 E-mail : info@eclipse-td.co.uk...
