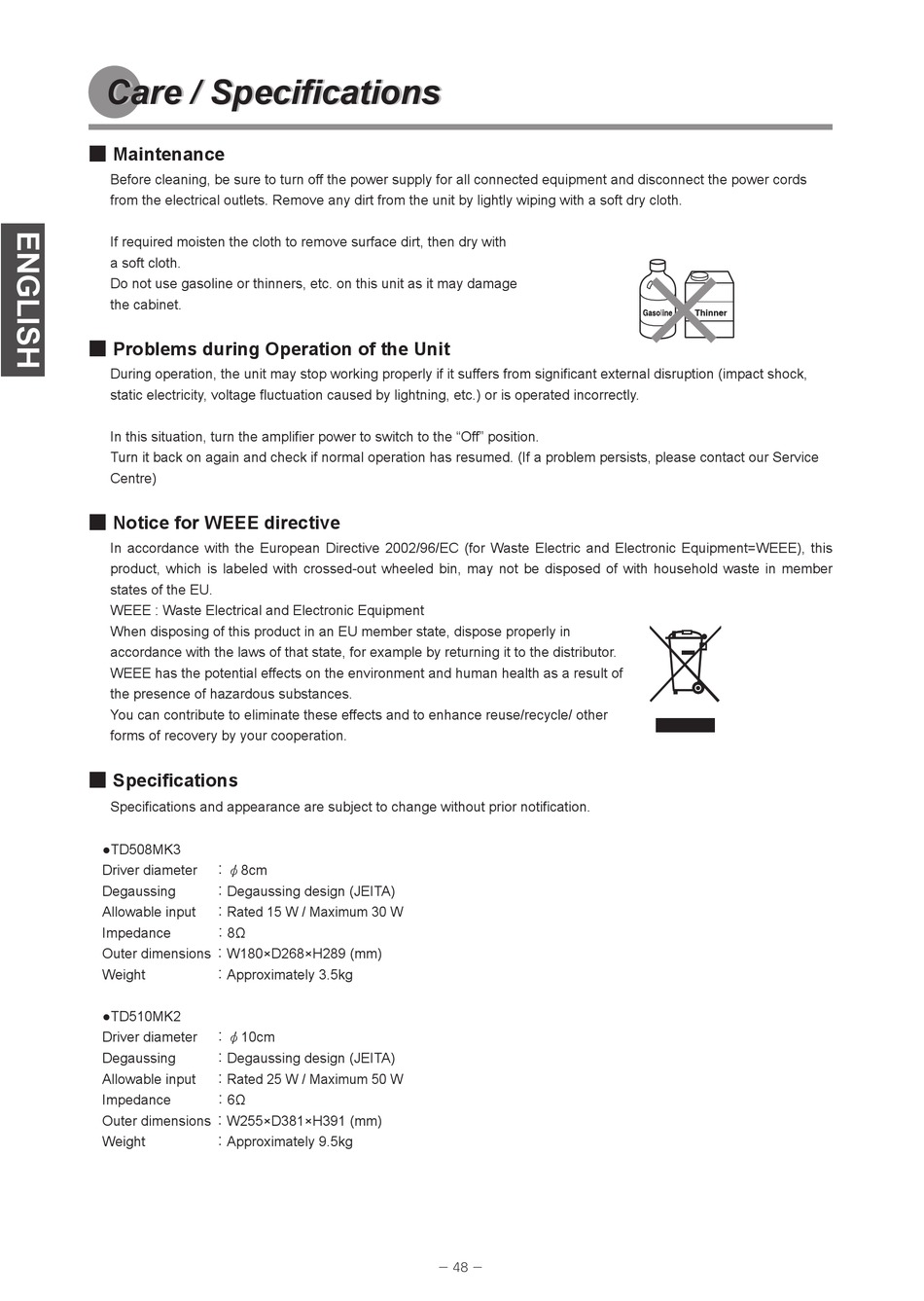

Care / Specifications

Care / Specifications
■ Maintenance
Before cleaning, be sure to turn off the power supply for all connected equipment and disconnect the power cords
from the electrical outlets. Remove any dirt from the unit by lightly wiping with a soft dry cloth.
If required moisten the cloth to remove surface dirt, then dry with
a soft cloth.
Do not use gasoline or thinners, etc. on this unit as it may damage
the cabinet.
■ Problems during Operation of the Unit
During operation, the unit may stop working properly if it suffers from significant external disruption (impact shock,
static electricity, voltage fluctuation caused by lightning, etc.) or is operated incorrectly.
In this situation, turn the amplifier power to switch to the "Off" position.
Turn it back on again and check if normal operation has resumed. (If a problem persists, please contact our Service
Centre)
■ Notice for WEEE directive
In accordance with the European Directive 2002/96/EC (for Waste Electric and Electronic Equipment=WEEE), this
product, which is labeled with crossed-out wheeled bin, may not be disposed of with household waste in member
states of the EU.
WEEE : Waste Electrical and Electronic Equipment
When disposing of this product in an EU member state, dispose properly in
accordance with the laws of that state, for example by returning it to the distributor.
WEEE has the potential effects on the environment and human health as a result of
the presence of hazardous substances.
You can contribute to eliminate these effects and to enhance reuse/recycle/ other
forms of recovery by your cooperation.
■ Specifications
Specifications and appearance are subject to change without prior notification.
●TD508MK3
Driver diameter ：φ8cm
Degaussing ：Degaussing design (JEITA)
Allowable input ：Rated 15 W / Maximum 30 W
Impedance ：8Ω
Outer dimensions ：W180×D268×H289 (mm)
Weight ：Approximately 3.5kg
●TD510MK2
Driver diameter ：φ10cm
Degaussing ：Degaussing design (JEITA)
Allowable input ：Rated 25 W / Maximum 50 W
Impedance ：6Ω
Outer dimensions ：W255×D381×H391 (mm)
Weight ：Approximately 9.5kg
− 8 −
