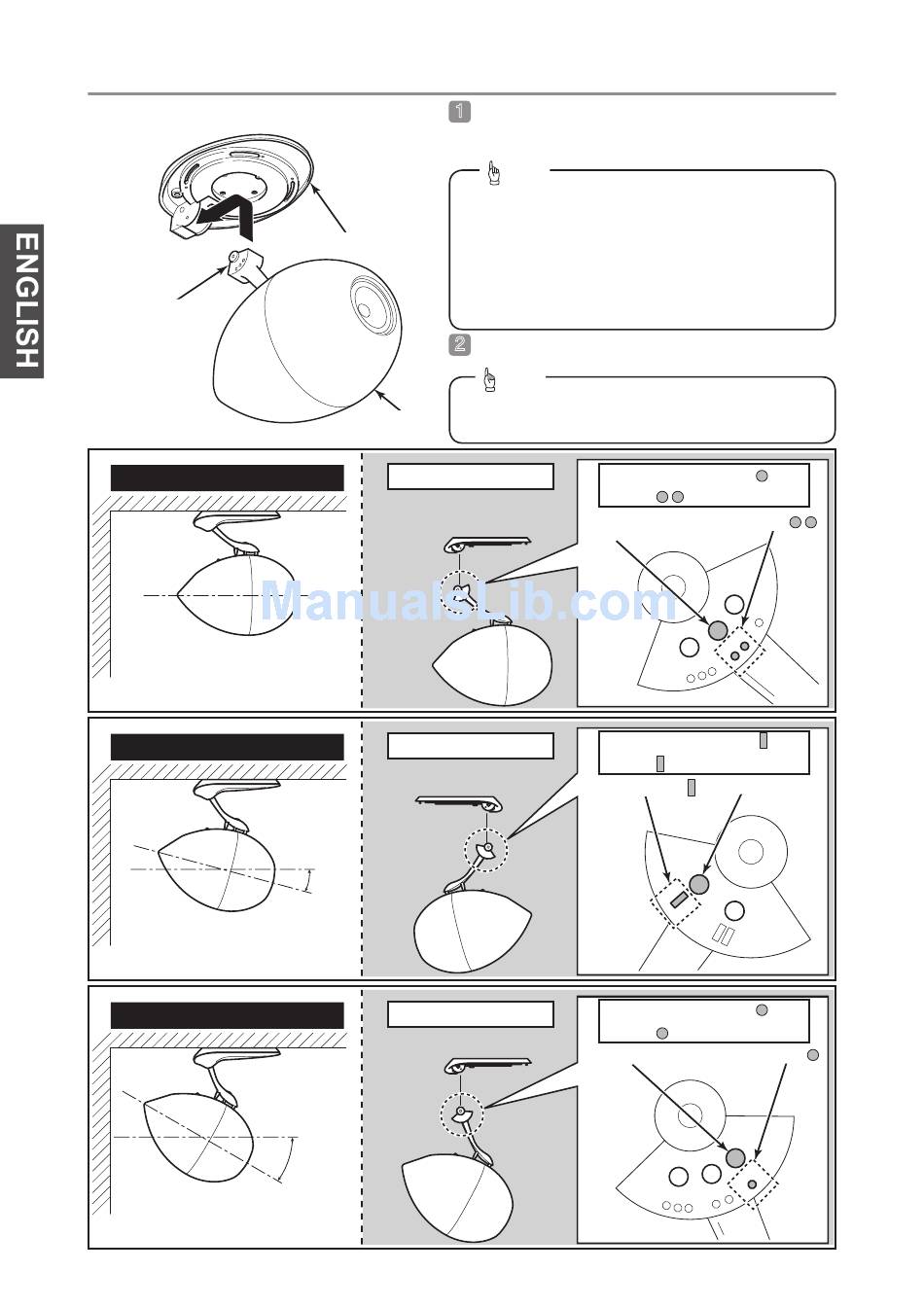

- Installing on a ceiling (installation example) -
■
Standard speaker arm type
Speaker arm
If the speaker angle is 0°
Fine adjustment range：−15° ～ 10°
➡
(
Refer to P.32.)
If the speaker angle is -15°
Fine adjustment range：−30° ～−5°
➡
(
Refer to P.32.)
If the speaker angle is -30°
Fine adjustment range：−45° ～−20°
➡
(
Refer to P.32.)
1
Speaker base
2
❶
Speaker
Speaker arm : Standard
０°
Speaker arm : Standard
−15°
Speaker arm : Standard
−30°
− 38 −

Select an installation method for the speaker arm in
accordance with the speaker installation angle that will
be used at the installation location.
Tip
･ The installation angle can be varied within a wide
range by means of the direction of the speaker arm
and the fixing holes used.
･ For examples of the speaker angles, refer to the
installation examples on pages 38 and 39.
･ The position of the fixing hole (mark) is important
when assembling the speaker and the speaker arm.
For details, refer to "Assembling the speaker" on P.46.

Install the speaker on the ceiling.
Tip
For details on the installation procedure, refer to P.41 -
47.
Fixing holes：Side with
（Mark：
Fixing holes
Fixing holes：Side with
（Mark： ）
Alignment mark ：
Fixing holes：Side with
（Mark：
Fixing holes
mark
）
Alignment mark：
mark
Fixing holes
mark
）
Alignment mark：
