Eclipse TD508MK3 Owner's Manual page 14

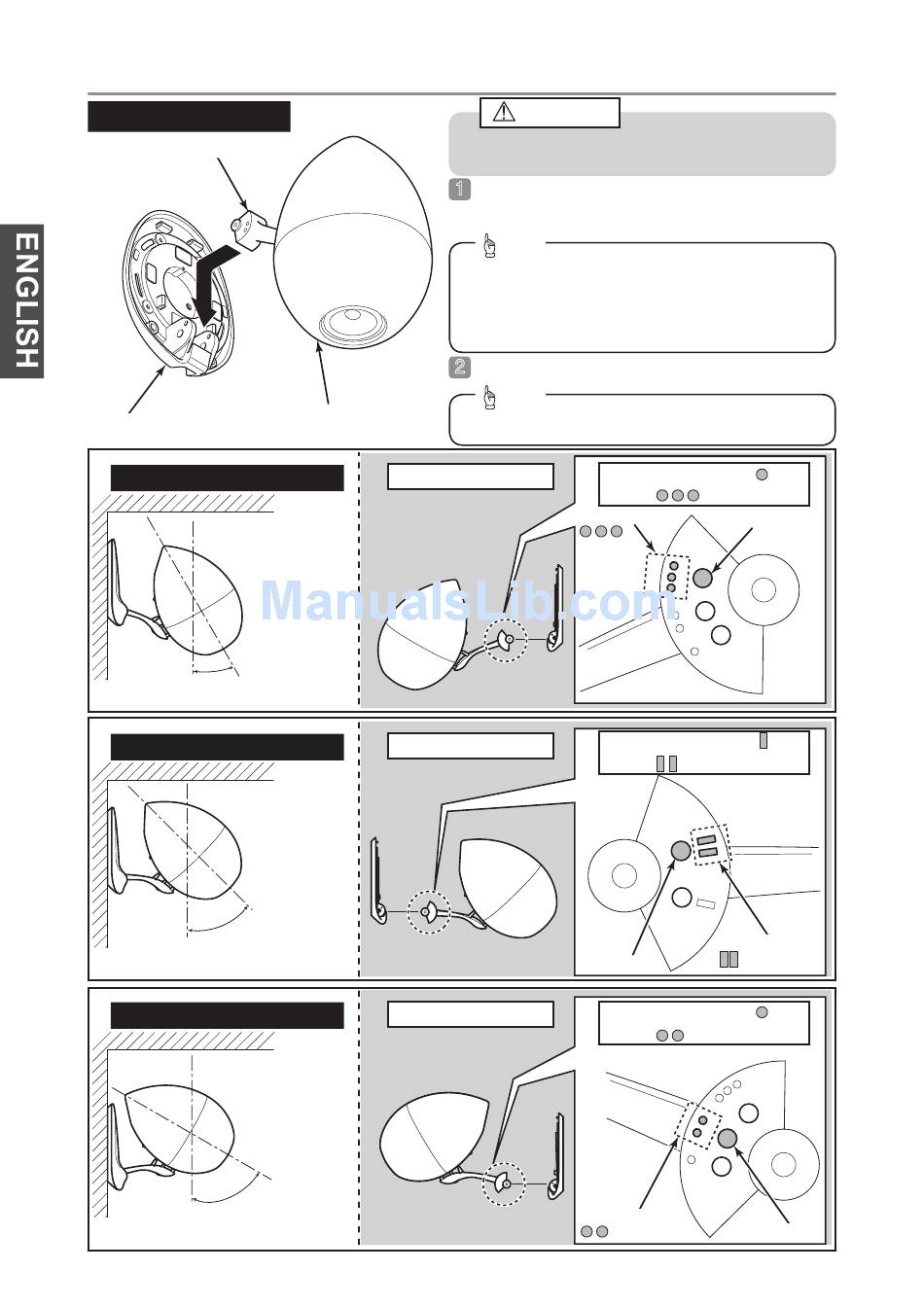

- Installing on a wall (installation example) -
For the TD508MK3
Speaker arm
Speaker base
If the speaker angle is 30°
30°
Fine adjustment range：20° ～ 45°
➡
(
Refer to P.32.)
If the speaker angle is 45°
45°
Fine adjustment range：35° ～ 60°
➡
(
Refer to P.32.)
If the speaker angle is 60°
60°
Fine adjustment range：50° ～ 75°
➡
(
Refer to P.32.)
The only speaker which can be installed on a wall is the
TD508MK3. The TD510MK2 cannot be installed on a wall.
1
2
❶
Speaker
For details on the installation procedure, refer to P.41 - 47.
Speaker arm : Reverse
Speaker arm : Reverse
Speaker arm : Reverse
− 0 −
Caution

Select an installation method for the speaker arm in
accordance with the speaker installation angle that will
be used at the installation location.
Tip
･ If installing the speaker on a wall, the direction of the
speaker arm is reversed.
･ The position of the fixing hole (mark) is important
when assembling the speaker and the speaker arm.
For details, refer to "Assembling the speaker" on P.46.

Install the speaker on the wall.
Tip
Fixing holes：Side with
（Mark：
Alignment mark：
Fixing holes：Side with
（Mark：
Fixing holes
Fixing holes：Side with
（Mark：
Alignment mark：
mark
）
Fixing holes
mark
）
角度調整ボルト穴
Alignment mark ：
mark
）
Fixing holes
