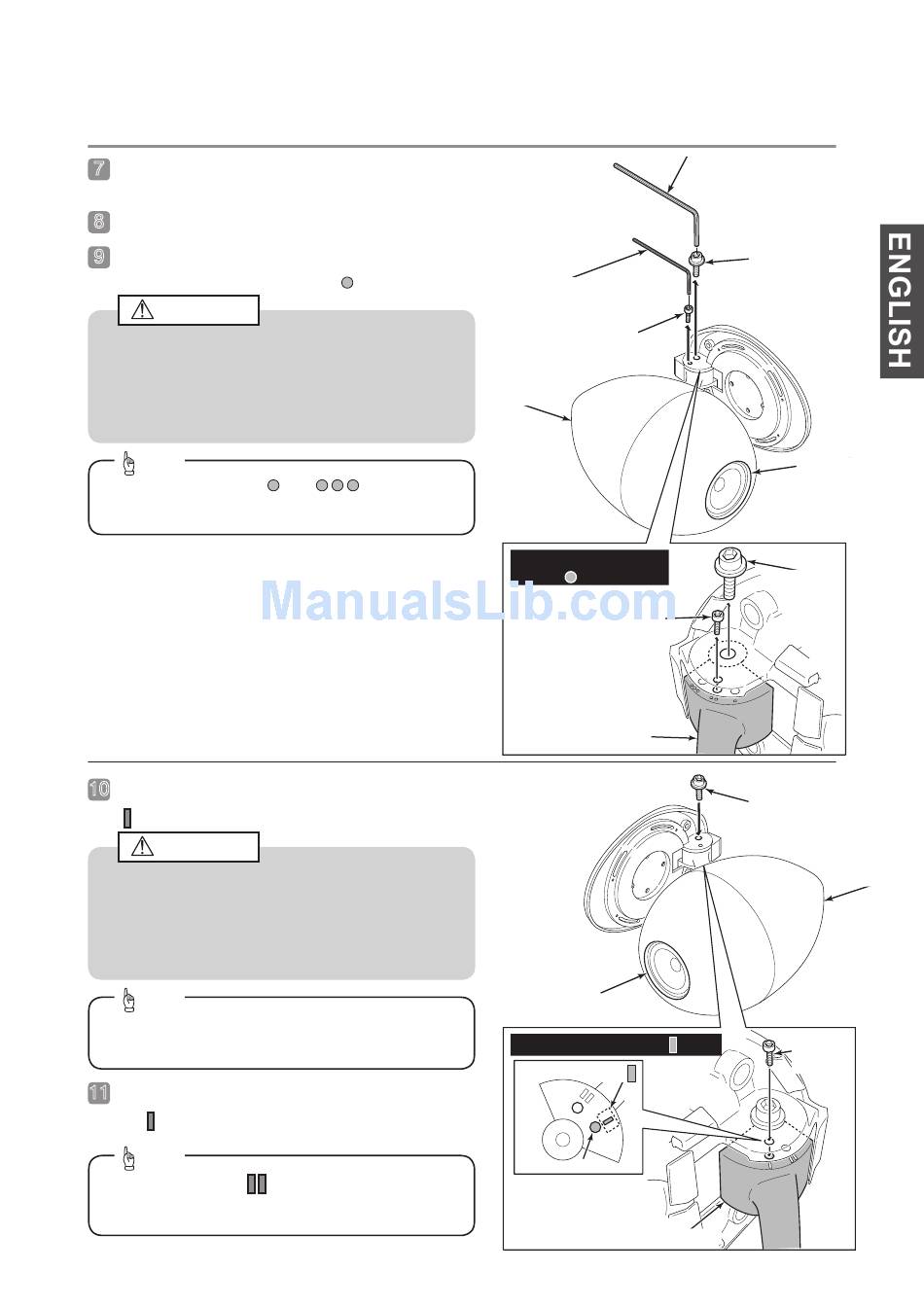

Eclipse TD508MK3 Owner's Manual page 9

7

Spread a soft cloth over the floor in order to prevent
damaging the surface of the speaker.
8

Place the speaker on its side.
9
Remove the retaining bolt and the angle adjustment bolt
from the speaker arm side with the
Caution
･ When the retaining bolt and locking screw have been
removed, ensure the speaker does not fall forwards
so neither the cone or cabinet is damaged.
･ Be careful not to get your hand or fingers caught in
the movable part of the speaker arm.
Tip
The fixing holes at the
speaker arm will not be used.
10

Install the retaining bolt to the speaker arm side with the
mark.
Caution
･ When the retaining bolt and locking screw have been
removed, ensure the speaker does not fall forwards
so neither the cone or cabinet is damaged.
･ Be careful not to get your hand or fingers caught in
the movable part of the speaker arm.
Tip
Remember to refit the locking bolt after adjusting the
angle.
11
Set the angle of the speaker arm so that it is aligned with

the mark, and then tighten the angle adjustment bolt.
Tip

The fixing hole at the
not be used.
mark.
and marks on the
mark on the speaker arm will
− 35 −
❹
Hexagonal wrench
(small)
Angle adjustment bolt
❶
Speaker
Speaker arm side with
mark
Angle adjustment bolt
Speaker arm
Speaker cone
Speaker arm side with
Mark ：
Fixing holes
Speaker arm
❸
Hexagonal wrench
(large)
Retaining bolt
Speaker cone
Retaining bolt
Retaining bolt
❶
Speaker
Angle

mark
adjustment
bolt
