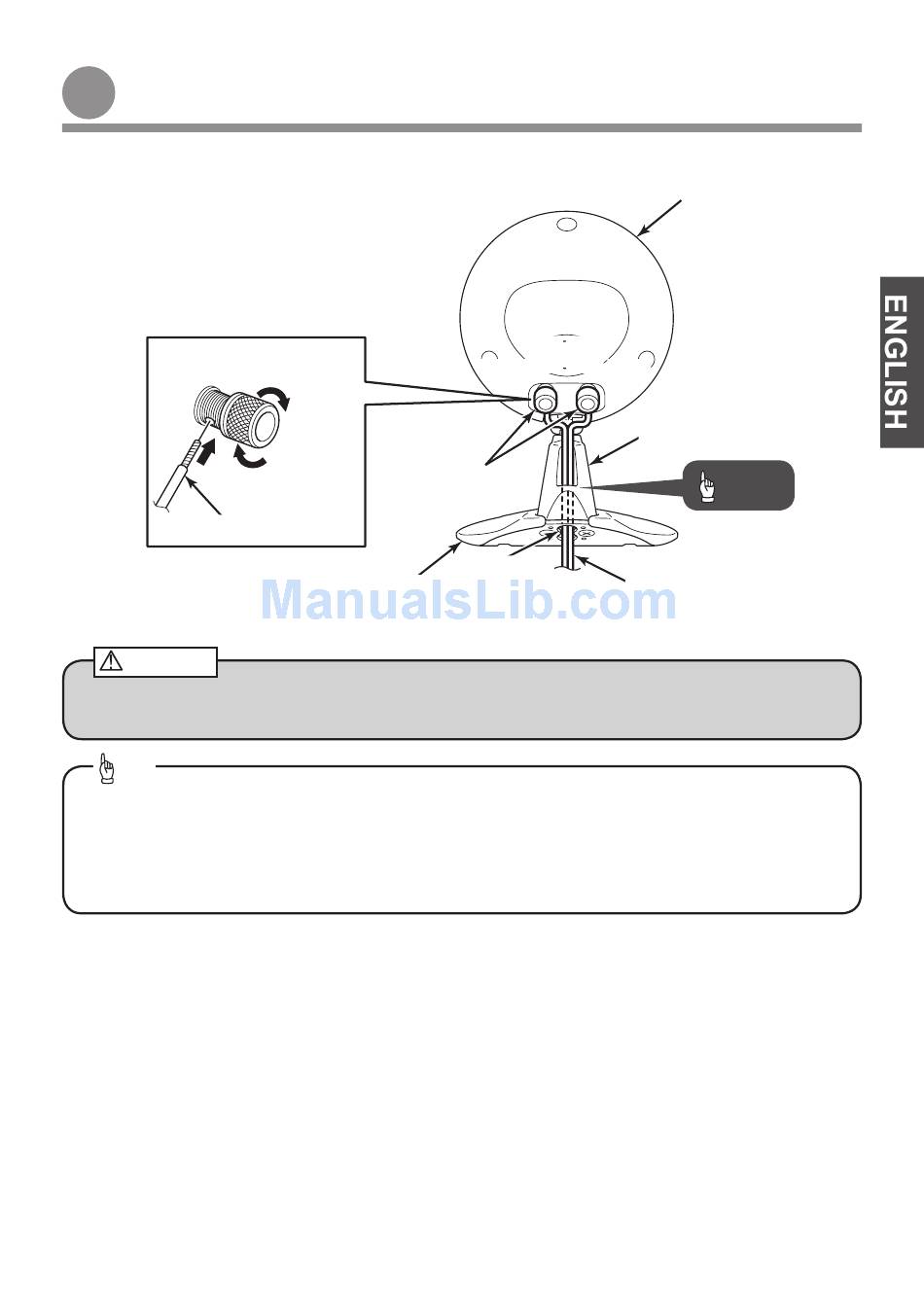

Parts and connections

Parts and connections
Speaker wire
Caution
When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not
touch neighboring terminals, otherwise it may cause short-circuits.

Tip
■ For speaker wire diameter φ7 mm or less
• If the speaker wire is passed through the cable entry point in the speaker base and the speaker arm, it will
improve the outer appearance of the speaker.
■ For speaker wire diameter φ7 mm or more
•The speaker wire cannot be passed through the speaker arm, so route it along the outside.
(Black)
Speaker input terminals
Cable entry
point
Speaker base
- 1 -
Speaker
(Red)
Speaker arm
Speaker wire
(diameter less than φ7 mm)
Tip
