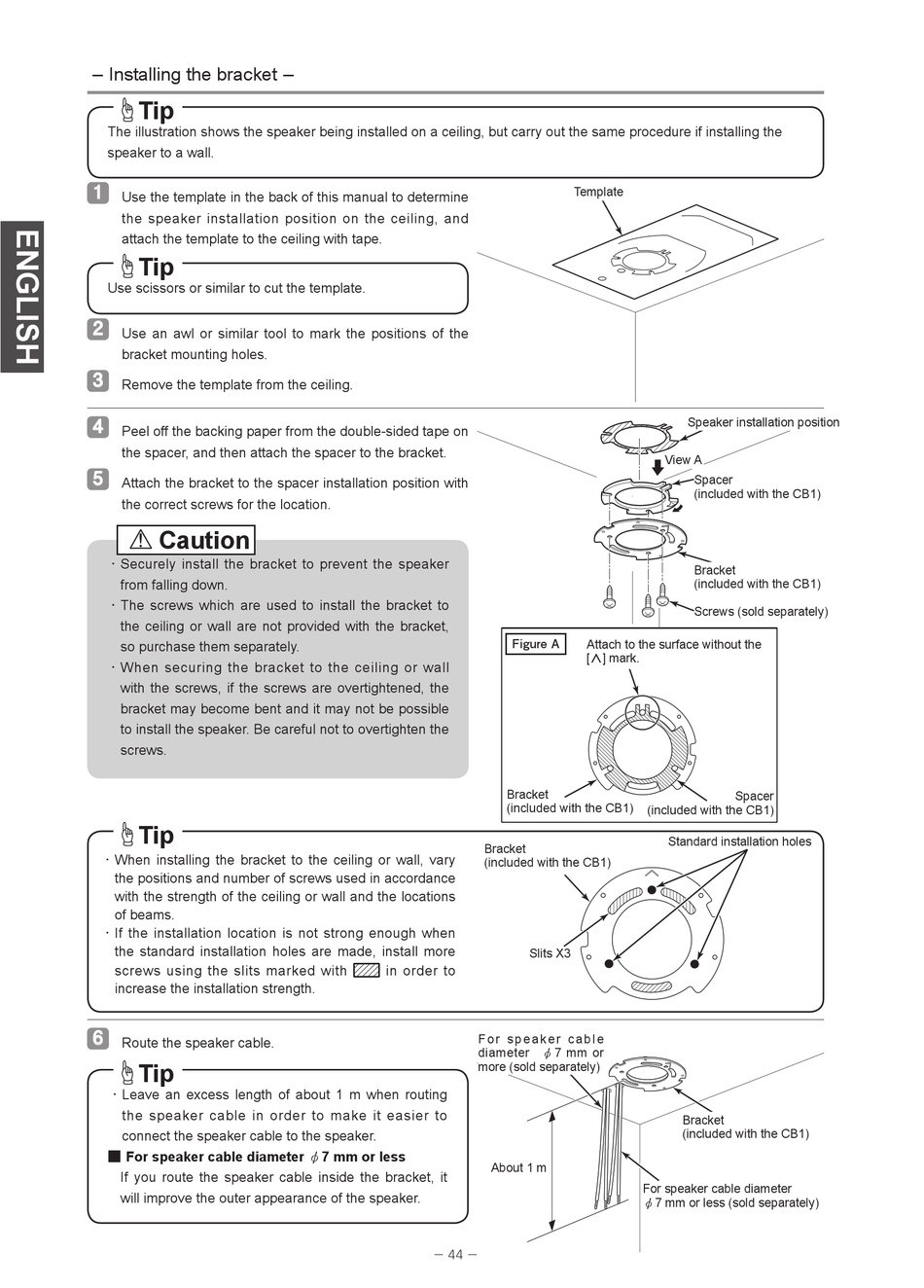

- Installing the bracket -
Tip
The illustration shows the speaker being installed on a ceiling, but carry out the same procedure if installing the
speaker to a wall.
1

Use the template in the back of this manual to determine
the speaker installation position on the ceiling, and
attach the template to the ceiling with tape.
Tip
Use scissors or similar to cut the template.
2

Use an awl or similar tool to mark the positions of the
bracket mounting holes.
3

Remove the template from the ceiling.
4

Peel off the backing paper from the double-sided tape on
the spacer, and then attach the spacer to the bracket.
5

Attach the bracket to the spacer installation position with
the correct screws for the location.
Caution
･ Securely install the bracket to prevent the speaker
from falling down.
･  T he screws which are used to install the bracket to
the ceiling or wall are not provided with the bracket,
so purchase them separately.
･ When securing the bracket to the ceiling or wall
with the screws, if the screws are overtightened, the
bracket may become bent and it may not be possible
to install the speaker. Be careful not to overtighten the
screws.
Tip
･ When installing the bracket to the ceiling or wall, vary
the positions and number of screws used in accordance
with the strength of the ceiling or wall and the locations
of beams.
･ If the installation location is not strong enough when
the standard installation holes are made, install more
screws using the slits marked with
increase the installation strength.
6

Route the speaker cable.
Tip
･ Leave an excess length of about 1 m when routing
the speaker cable in order to make it easier to
connect the speaker cable to the speaker.
■ For speaker cable diameter φ7 mm or less

I f you route the speaker cable inside the bracket, it
will improve the outer appearance of the speaker.
Figure A
Bracket
(included with the CB1)
Bracket
(included with the CB1)
Slits X3
in order to
F o r s p e a k e r c a b l e
diameter φ7 mm or
more (sold separately)
About 1 m
−  −
Template
Speaker installation position
View A
Spacer
(included with the CB1)
Bracket
(included with the CB1)
Screws (sold separately)
Attach to the surface without the
[∧] mark.
Spacer
(included with the CB1)
Standard installation holes
Bracket
(included with the CB1)
For speaker cable diameter
φ7 mm or less (sold separately)
