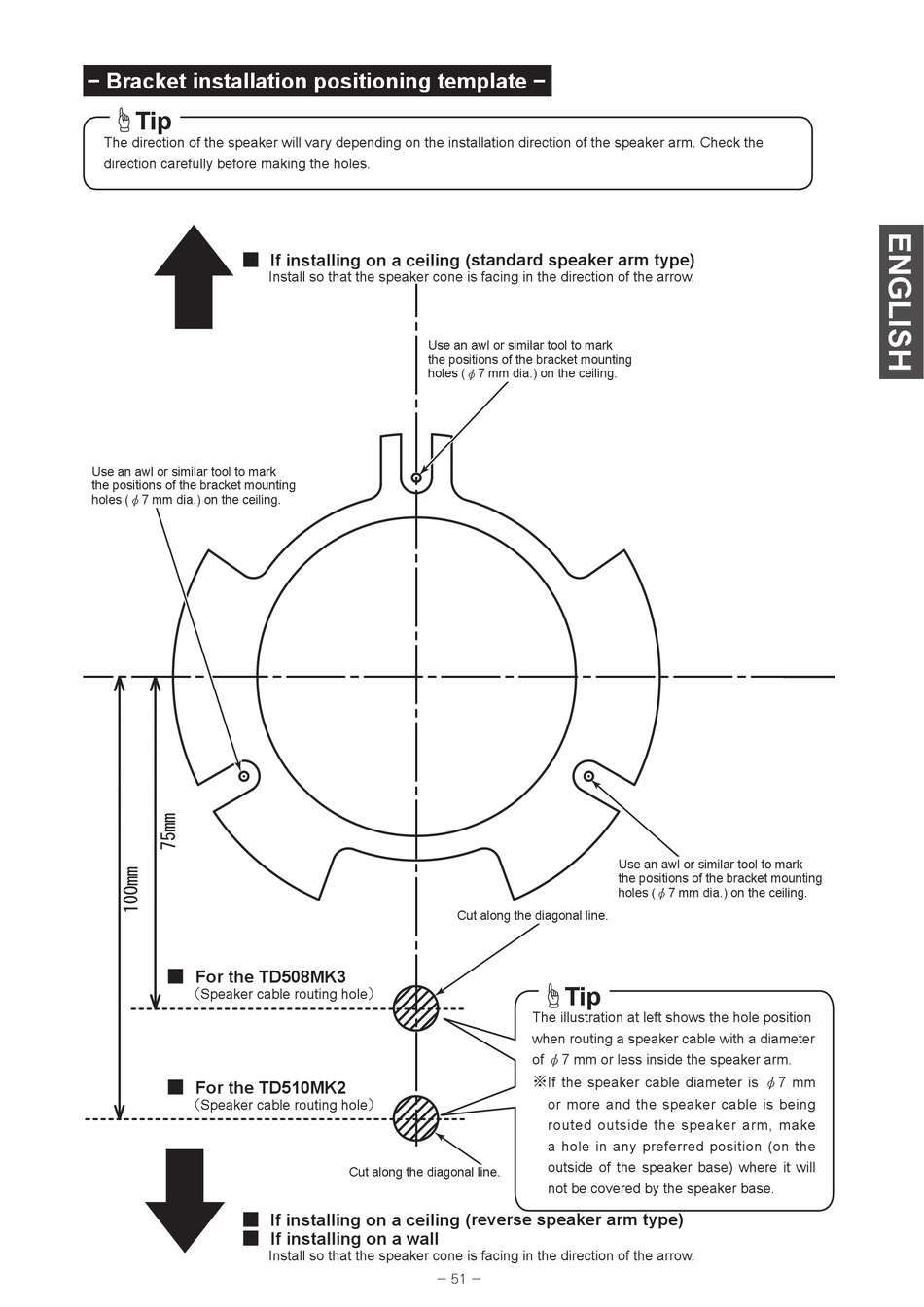

− Bracket installation positioning template −
Tip
The direction of the speaker will vary depending on the installation direction of the speaker arm. Check the
direction carefully before making the holes.
■ If installing on a ceiling (standard speaker arm type)
Use an awl or similar tool to mark
the positions of the bracket mounting
holes (φ7 mm dia.) on the ceiling.
■ For the TD508MK3
（ Speaker cable routing hole）
■ For the TD510MK2
（ Speaker cable routing hole）
■ If installing on a ceiling (reverse speaker arm type)
■ If installing on a wall
Install so that the speaker cone is facing in the direction of the arrow.
Use an awl or similar tool to mark
the positions of the bracket mounting
holes (φ7 mm dia.) on the ceiling.
Cut along the diagonal line.
Install so that the speaker cone is facing in the direction of the arrow.
− 51 −
Use an awl or similar tool to mark
the positions of the bracket mounting
holes (φ7 mm dia.) on the ceiling.
Cut along the diagonal line.
Tip
The illustration at left shows the hole position
when routing a speaker cable with a diameter
of φ7 mm or less inside the speaker arm.
※
I f the speaker cable diameter is φ7 mm
or more and the speaker cable is being
routed outside the speaker arm, make
a hole in any preferred position (on the
outside of the speaker base) where it will
not be covered by the speaker base.
