Eclipse TD508MK3 Owner's Manual page 15

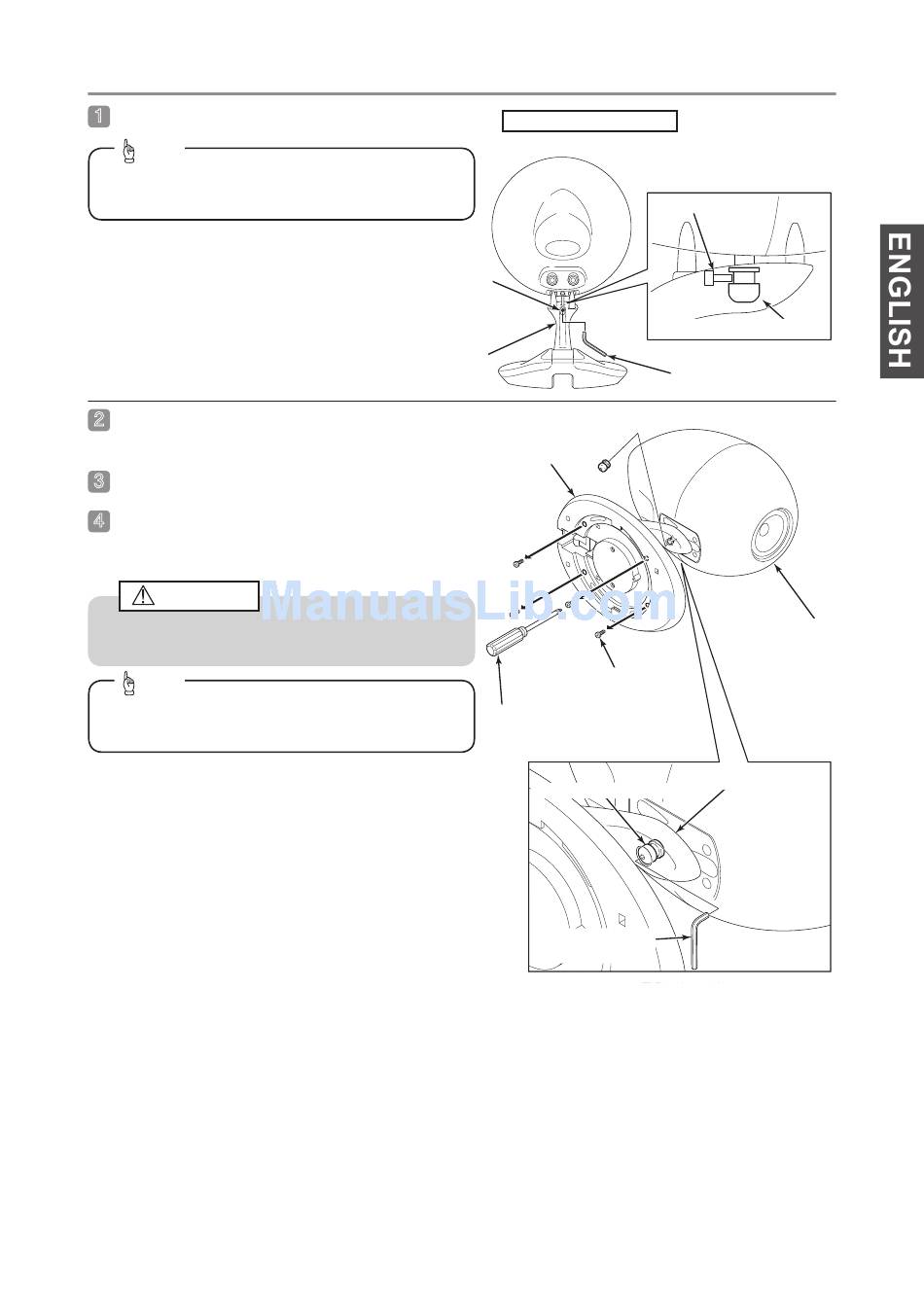

- Preparation for installation -
1

Remove the hexagonal head bolt from the speaker arm.
Tip
The hexagonal head bolt which is removed will be used
later, so be careful not to lose it.
2

Spread a soft cloth over the floor in order to prevent
damaging the surface of the speaker.
3

Place the speaker on its side.
4

Remove the screws from the bottom of the speaker base
and the speaker angle adjustment nut from the speaker
arm.
Caution
Retain the adjustment nut as it will be required to lock
the unit in position.
Tip
The 4 cover retaining screws can be kept with the
packing for future use.
Rear view of the speaker
Hexagonal head bolt
Speaker arm
Speaker base
Screwdriver
Speaker angle adjustment nut
❸
Hexagonal wrench
(large)
− 1 −
Hexagonal head bolt
Speaker angle adjustment nut
❹
Hexagonal wrench
(small)
Screws X4
Speaker arm
❶
Speaker
