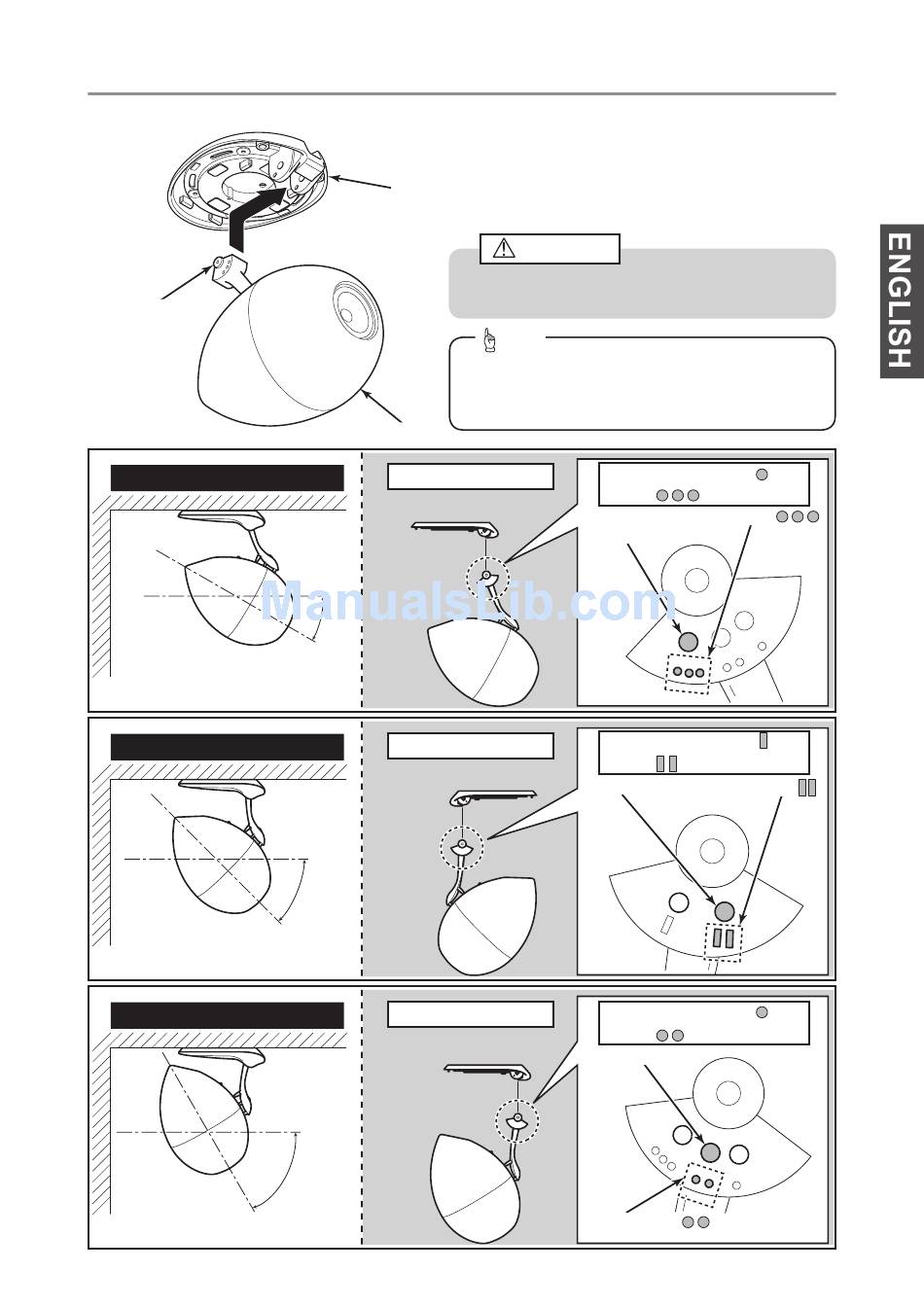

Reverse speaker arm type
Speaker arm
If the speaker angle is -30°
Fine adjustment range：−45° ～−20°
➡
(
Refer to P.32.)
If the speaker angle is -45°
Fine adjustment range：−60° ～−35°
➡
(
Refer to P.32.)
If the speaker angle is -60°
Fine adjustment range：−75° ～−50°
➡
(
Refer to P.32.)
Speaker base
❶
Speaker
Speaker arm : Reverse
−30°
Speaker arm : Reverse
−45°
Speaker arm : Reverse
−60°
− 39 −
Caution
Be careful not to get your hand or fingers caught in the
movable part of the speaker arm.
Tip
The position of the fixing hole (mark) is important when
assembling the speaker and the speaker arm. For
details, refer to "Assembling the speaker" on P.46.
Fixing holes：Side with
（Mark：
Fixing holes
Fixing holes：Side with
（Mark：
Fixing holes
Fixing holes：Side with
（Mark：
Fixing holes
Alignment mark：
mark
）
Alignment mark：
mark
）
Alignment mark ：
mark
）
