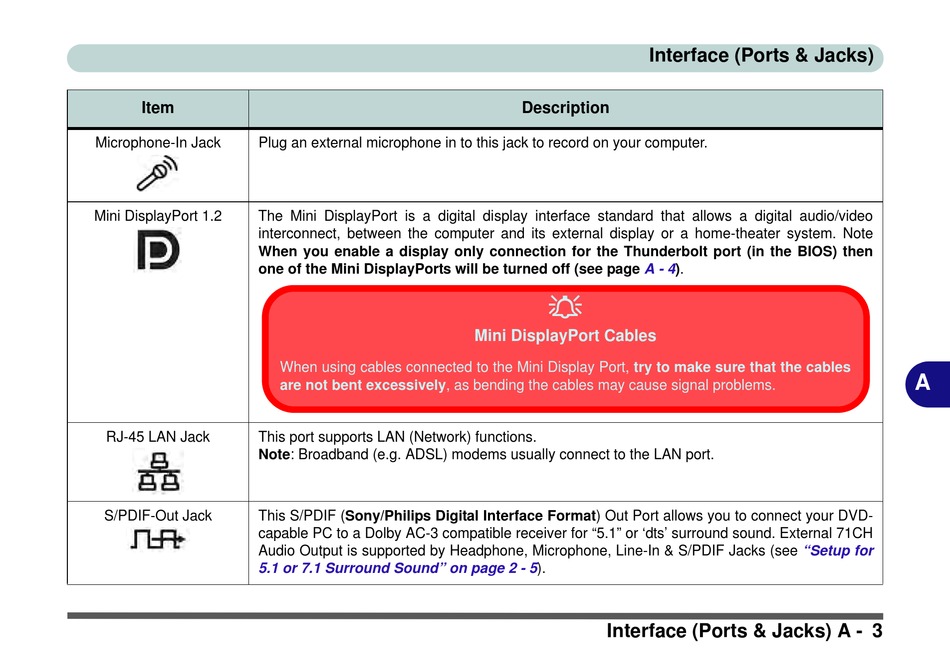

Item

Microphone-In Jack

Plug an external microphone in to this jack to record on your computer.
Mini DisplayPort 1.2 The Mini DisplayPort is a digital display interface standard that allows a digital audio/video
interconnect, between the computer and its external display or a home-theater system. Note
When you enable a display only connection for the Thunderbolt port (in the BIOS) then
one of the Mini DisplayPorts will be turned off (see page

RJ-45 LAN Jack

This port supports LAN (Network) functions.
Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

S/PDIF-Out Jack

This S/PDIF (Sony/Philips Digital Interface Format) Out Port allows you to connect your DVD-
capable PC to a Dolby AC-3 compatible receiver for "5.1" or 'dts' surround sound. External 71CH
Audio Output is supported by Headphone, Microphone, Line-In & S/PDIF Jacks (see
5.1 or 7.1 Surround Sound" on page 2 -
When using cables connected to the Mini Display Port, try to make sure that the cables
are not bent excessively, as bending the cables may cause signal problems.
