Item

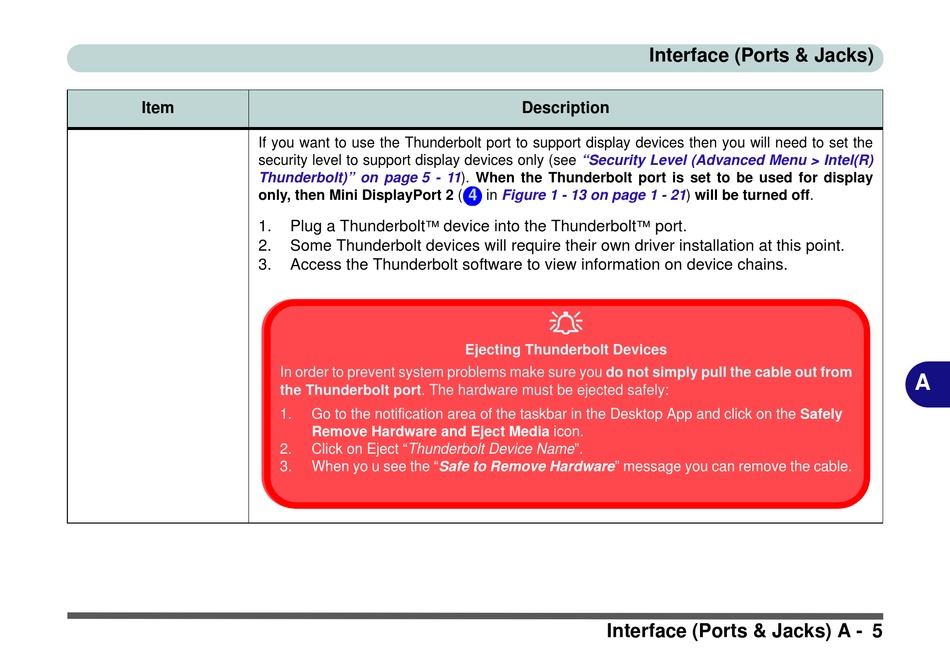

If you want to use the Thunderbolt port to support display devices then you will need to set the
security level to support display devices only (see
Thunderbolt)" on page 5 -
only, then Mini DisplayPort 2 (
1.
Plug a Thunderbolt
2.
Some Thunderbolt devices will require their own driver installation at this point.
3.
Access the Thunderbolt software to view information on device chains.
In order to prevent system problems make sure you do not simply pull the cable out from
the Thunderbolt port. The hardware must be ejected safely:
1.
Go to the notification area of the taskbar in the Desktop App and click on the Safely
Remove Hardware and Eject Media icon.
2.
Click on Eject "Thunderbolt Device Name".
3.
When yo u see the "Safe to Remove Hardware" message you can remove the cable.
Description
"Security Level (Advanced Menu > Intel(R)
11). When the Thunderbolt port is set to be used for display
4
in
Figure 1 - 13 on page 1 -
device into the Thunderbolt
™
Ejecting Thunderbolt Devices
Interface (Ports & Jacks)
21) will be turned off.
port.
™
Interface (Ports & Jacks) A - 5
A
