2.2 Intercom Setup

2.2.1 VoIP Intercom Connections

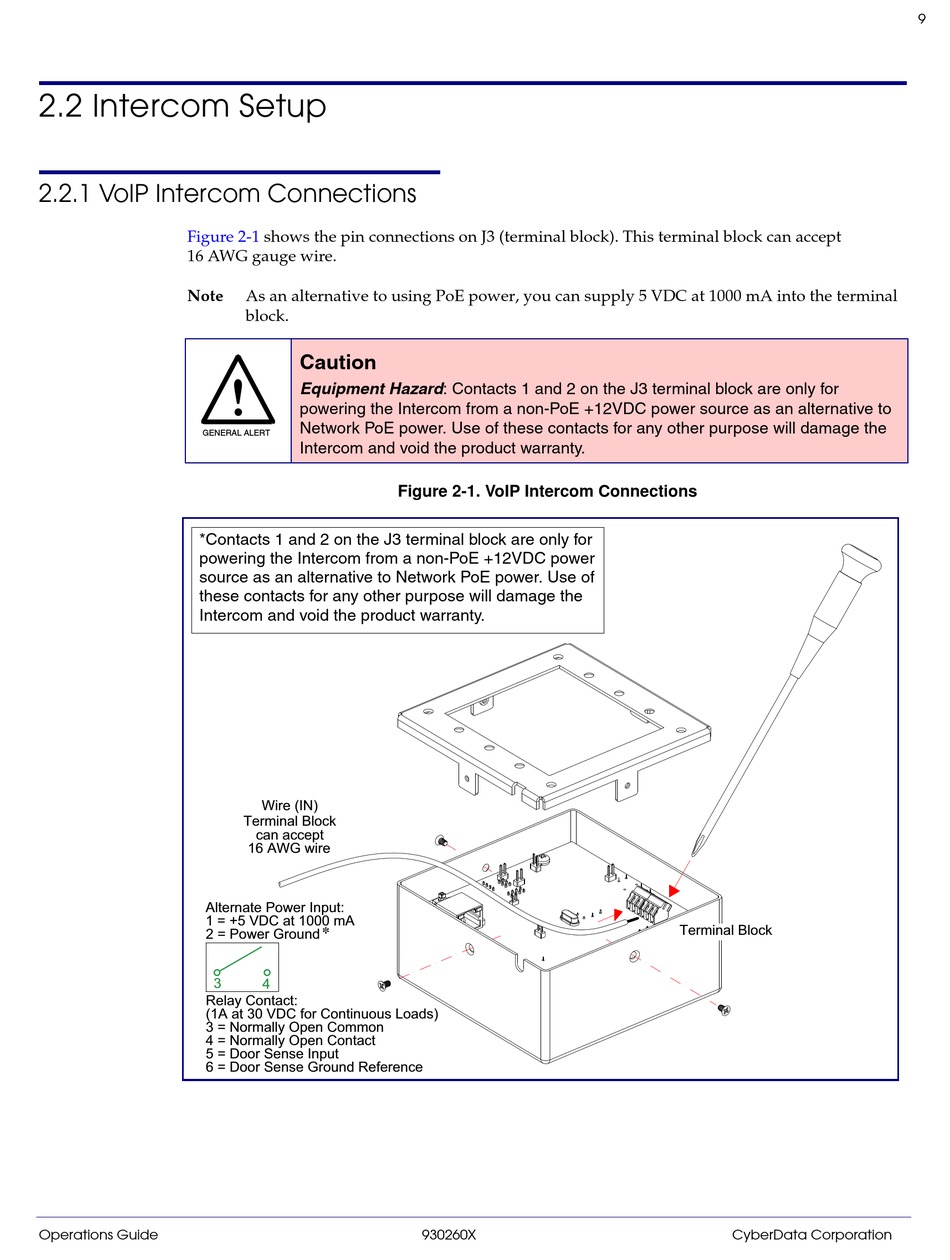

Figure 2-1
16 AWG gauge wire.
Note
GENERAL ALERT
*Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE +12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
Intercom and void the product warranty.
Alternate Power Input:
1 = +5 VDC at 1000 mA
2 = Power Ground
3
Relay Contact:
(1A at 30 VDC for Continuous Loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Operations Guide
shows the pin connections on J3 (terminal block). This terminal block can accept 
As an alternative to using PoE power, you can supply 5 VDC at 1000 mA into the terminal
block.
Caution
Equipment Hazard: Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE +12VDC power source as an alternative to
Network PoE power. Use of these contacts for any other purpose will damage the
Intercom and void the product warranty.
Figure 2-1. VoIP Intercom Connections
Wire (IN)
Terminal Block
can accept
16 AWG wire
*
4
930260X
Terminal Block
CyberData Corporation
9
