2. On the Device Configuration page, you may enter values for the parameters indicated in
Web Page Item
Volume Settings
Speaker Volume
Speaker Volume (0-9)
Line-In Playback Volume (0-9)
Relay Settings
Activate Relay with DTMF Code When selected, the relay can be activated with a DTMF code.
DTMF Activation Code
DTMF Activation Duration 
(in seconds)
Activate Relay During Ring
Activate Relay During Night
Ring
Activate Relay While Call Active When selected, the relay will be activated for as long as the call is
Miscellaneous Settings
Two Speakers Connected
Beep on Initialization
Auto-Answer Incoming Calls
Play Ringback Tone
Enable Line In Playback
Operations Guide
Table 2-12.

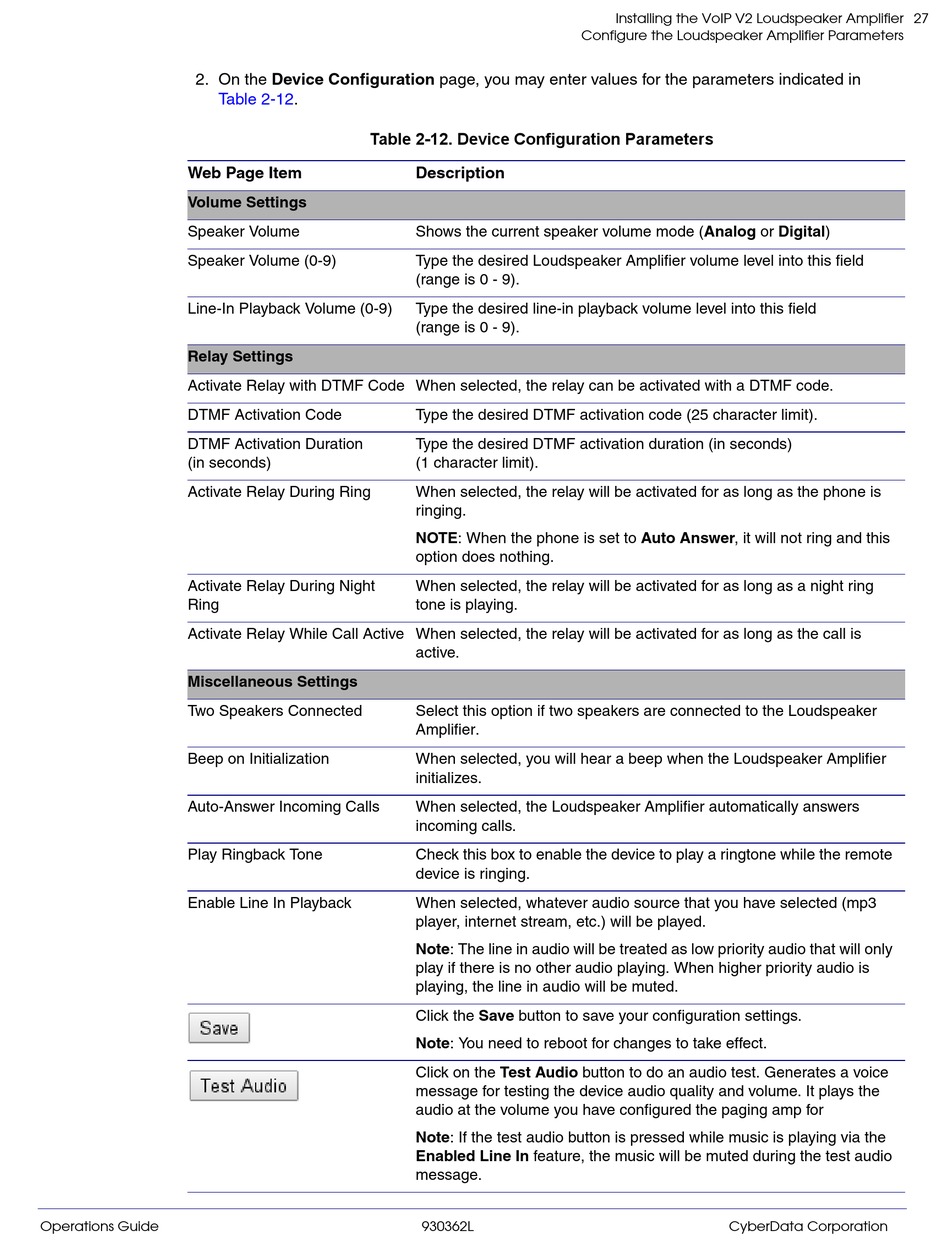

Table 2-12. Device Configuration Parameters
Configure the Loudspeaker Amplifier Parameters
Description
Shows the current speaker volume mode (Analog or Digital)
Type the desired Loudspeaker Amplifier volume level into this field 
(range is 0 - 9).
Type the desired line-in playback volume level into this field 
(range is 0 - 9).
Type the desired DTMF activation code (25 character limit).
Type the desired DTMF activation duration (in seconds)
(1 character limit).
When selected, the relay will be activated for as long as the phone is
ringing.
NOTE: When the phone is set to Auto Answer, it will not ring and this
option does nothing.
When selected, the relay will be activated for as long as a night ring
tone is playing.
active.
Select this option if two speakers are connected to the Loudspeaker
Amplifier.
When selected, you will hear a beep when the Loudspeaker Amplifier
initializes.
When selected, the Loudspeaker Amplifier automatically answers
incoming calls.
Check this box to enable the device to play a ringtone while the remote
device is ringing.
When selected, whatever audio source that you have selected (mp3
player, internet stream, etc.) will be played.
Note: The line in audio will be treated as low priority audio that will only
play if there is no other audio playing. When higher priority audio is
playing, the line in audio will be muted.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Test Audio button to do an audio test. Generates a voice
message for testing the device audio quality and volume. It plays the
audio at the volume you have configured the paging amp for
Note: If the test audio button is pressed while music is playing via the
Enabled Line In feature, the music will be muted during the test audio
message.
