7013-XXX

ADF removal

1.
Tilt the flatbed cover to the upright position.
2.
Lift the ADF up and away from the flatbed.
3.

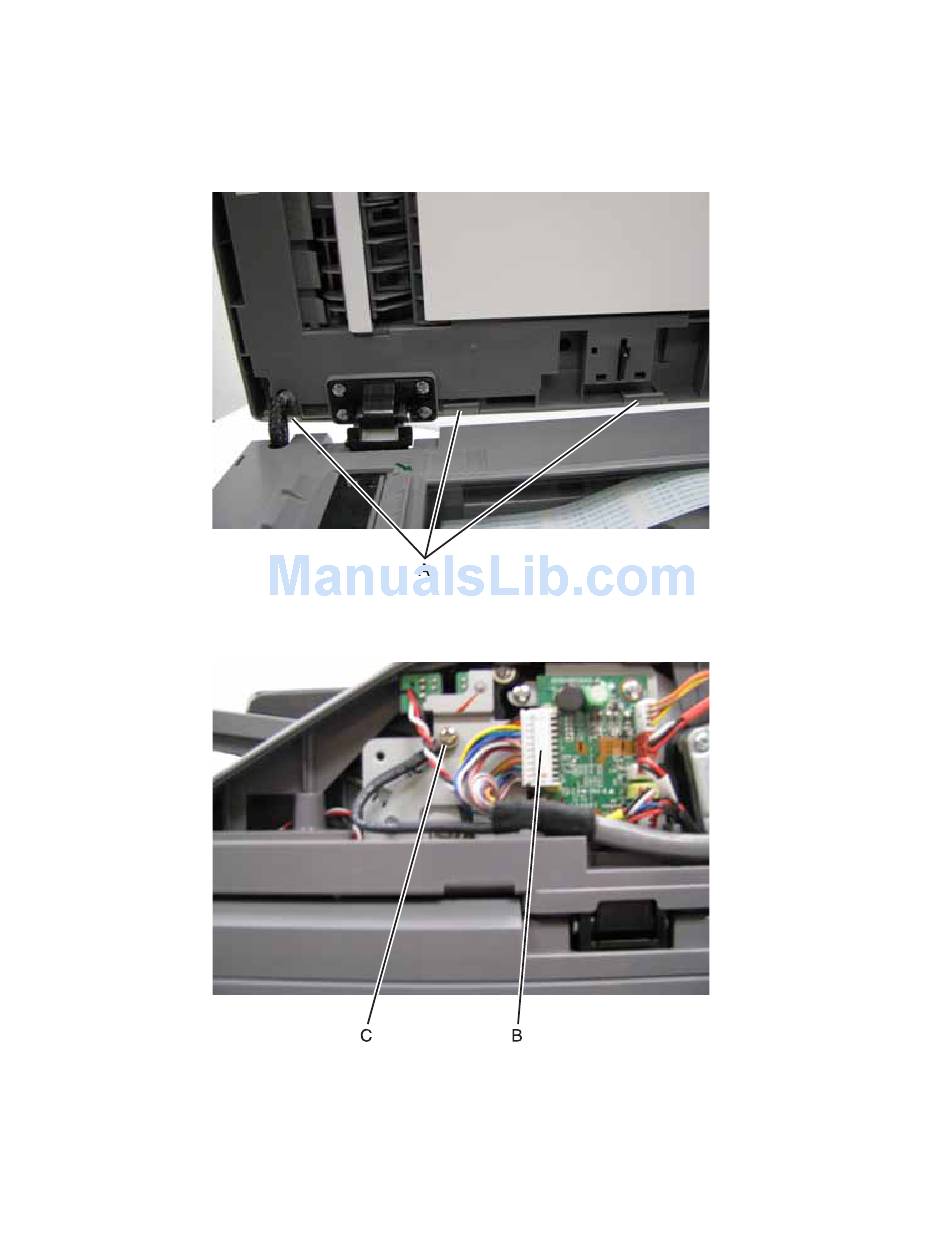

While lifting the ADF, use a flatblade screwdriver to pry open the two tabs of the Simplex, or the three tabs
(A) of the Duplex on the bottom of the ADF cover.
4.
Remove the ADF rear cover from the ADF assembly.
Note: Save the ADF rear cover for use on the new ADF unit.
5.
Disconnect the ADF cable (B) and the ground cable (C) from the ADF assembly.
