Operator panel removal

1.
Remove the front scanner cover. See
2.
Remove the right side scanner cover. See
3.
Remove the left side scanner cover. See
4.

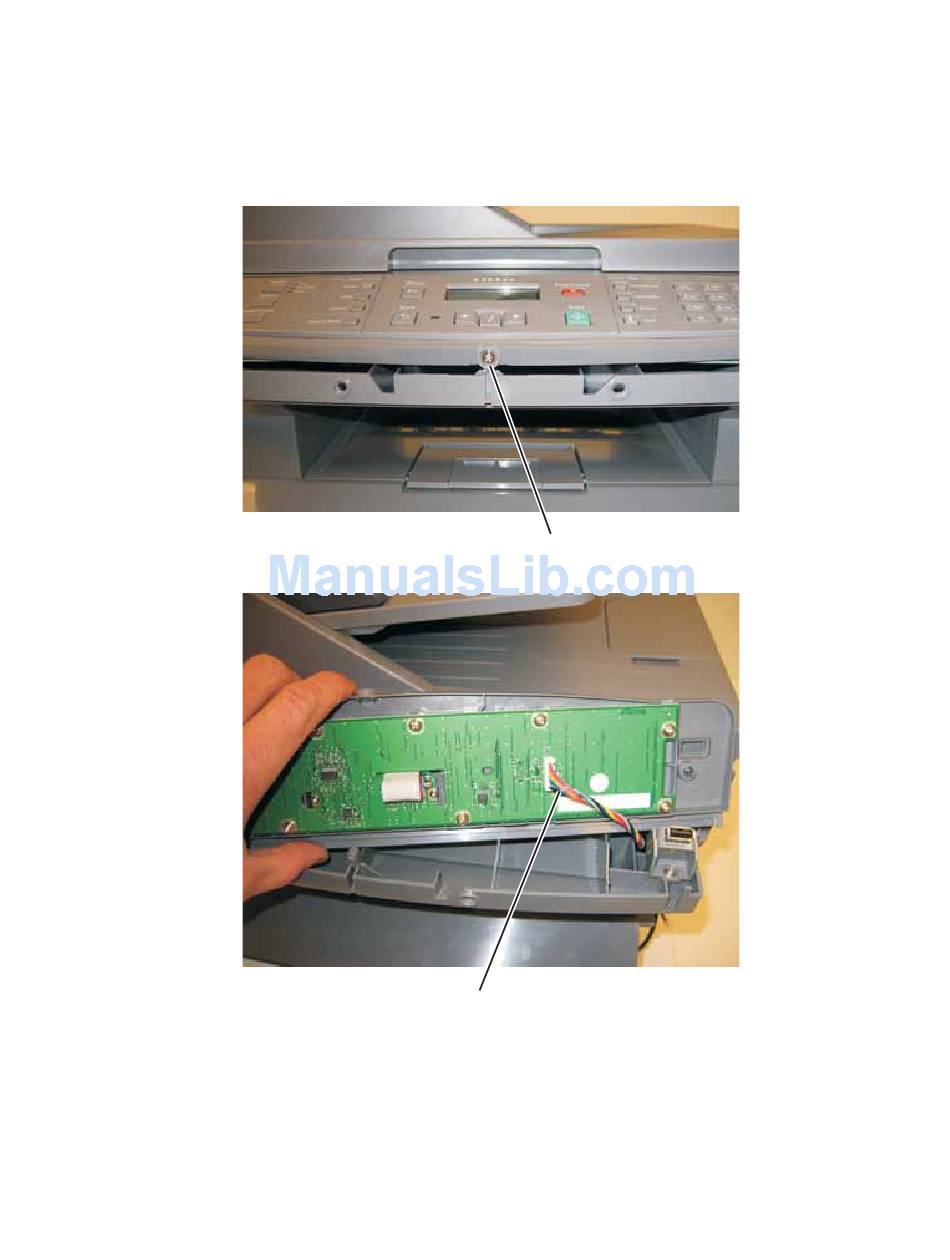

Remove the screw (A) from the front of the printer.
5.
Lift the operator panel, and disconnect the cable (B).
6.
Remove the operator panel.
7.
Remove the bezel from the operator panel.
"Front scanner cover removal" on page
"Right side scanner cover removal" on page
"Left side scanner cover removal" on page
A
B
7013-XXX
4-29.
4-73.
4-35.
4-63
Repair information
