7013-XXX

Media ACM ASM feeder removal

1.
Remove the left side printer cover. See
2.
Remove the LVPS/HVPS. See
3.
Remove the duplex. See
4.
Remove the main motor gear drive. See
5.
Remove the media feed clutch. See
6.

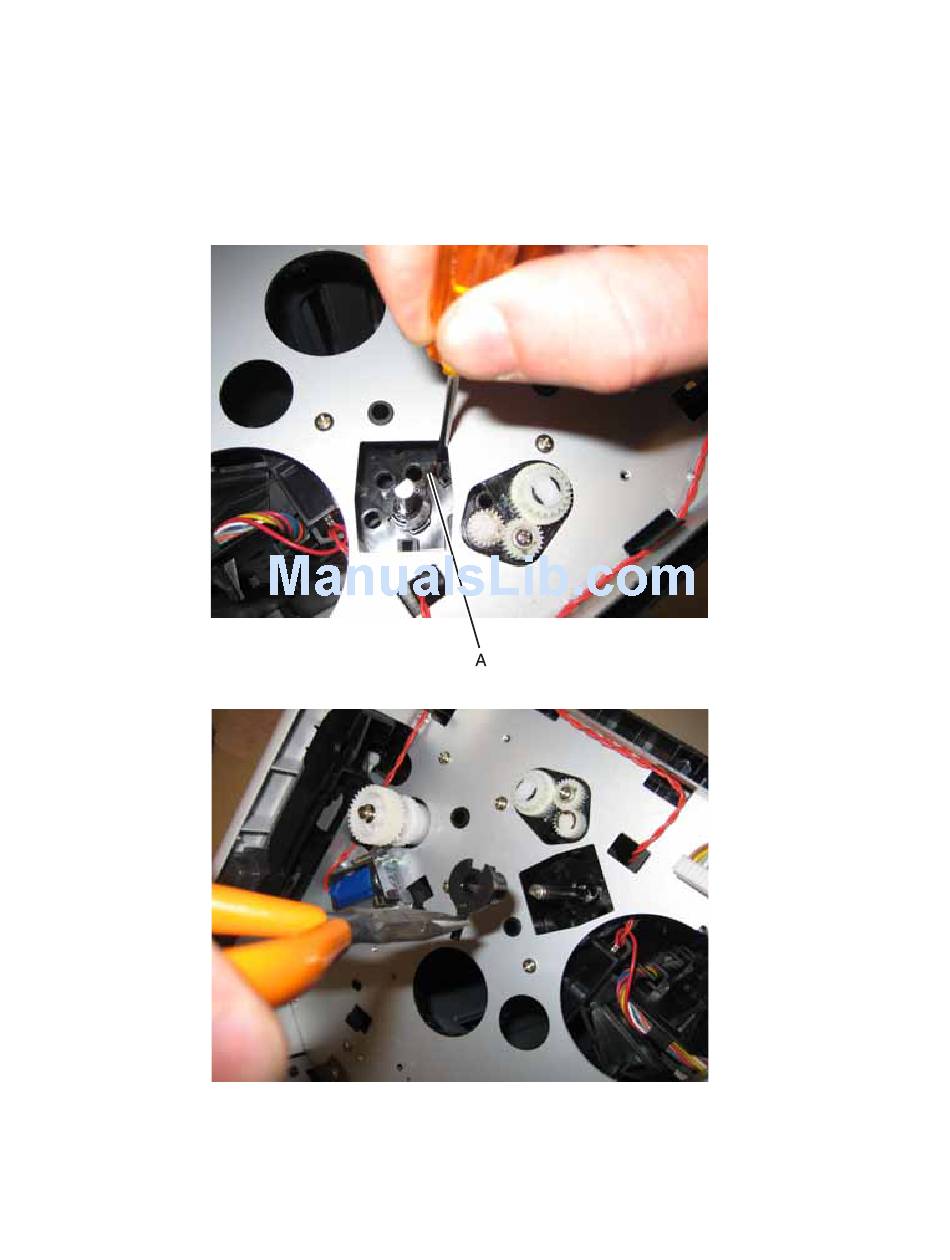

Use a screwdriver to pop the shaft retainer tab (A) loose from the ACM feed shaft.
7.
Use a small pair of pliers to remove the shaft retainer tab.
4-48
Service Manual
"Left side printer cover removal" on page
"LVPS/HVPS removal" on page
"Duplex removal" on page
"Main motor gear drive removal" on page
"Media feed clutch with cable removal" on page
4-39.
4-16.
4-33.
4-42.
4-51.
