4 . 1 3 . 4 S t a t u s
4 . 1 3 . 4 S t a t u s

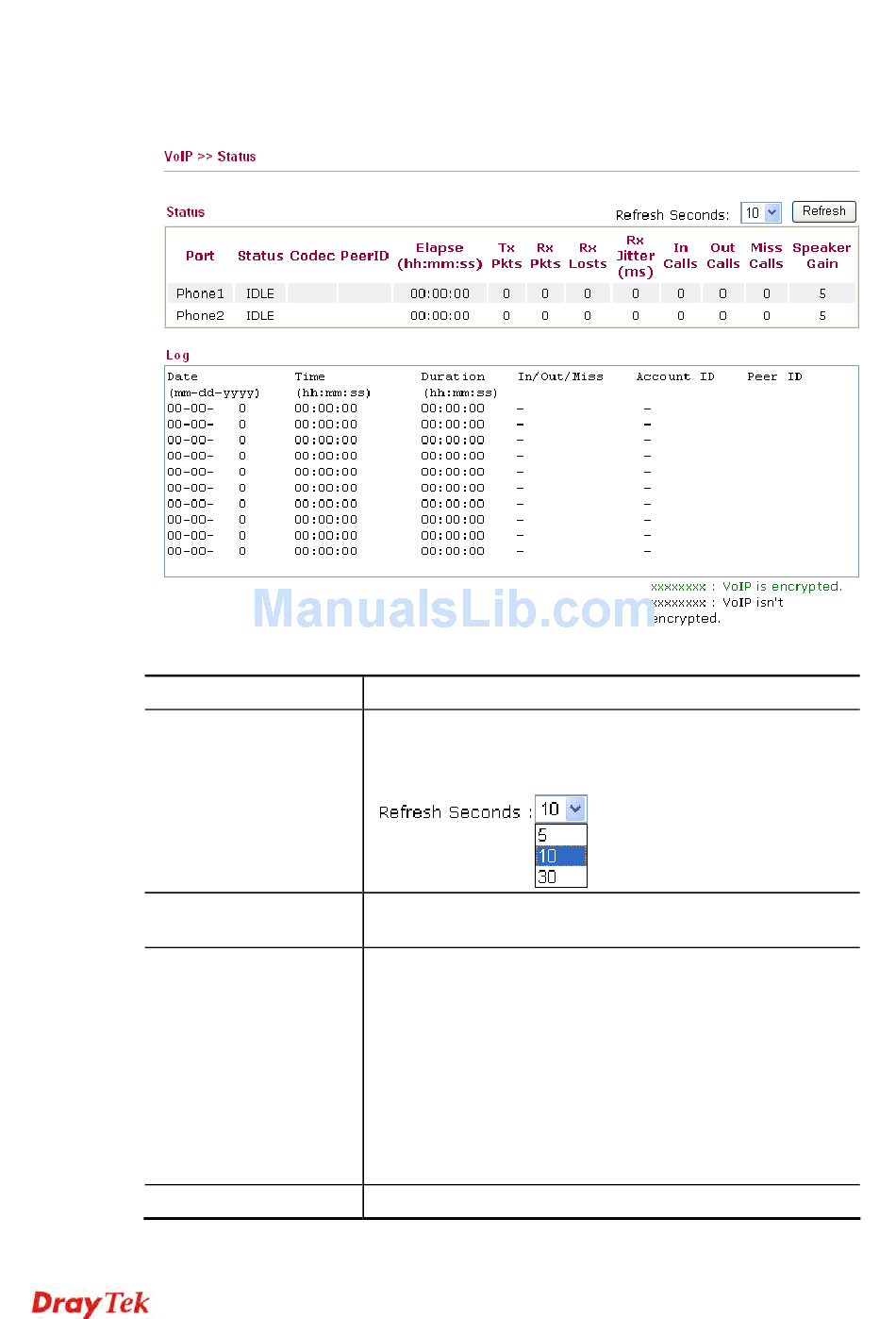

From this page, you can find codec, connection and other important call status for each port.
Each item is explained as follows:
Item
Refresh Seconds
Port

Status

Codec
Description
Specify the interval of refresh time to obtain the latest VoIP
calling information. The information will update immediately
when the Refresh button is clicked.
It shows current connection status for Phone(s) and ISDN
ports.
It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established
(busy tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and
waiting for remote user's answer.
ALERTING - Indicates that a call is coming.
ACTIVE-Indicates that the VoIP connection is launched.
Indicates the voice codec employed by present channel.
341
Vigor2920 Series User's Guide
