1 . 2 L E D I n d i c
1 . 2 L E D I n d i c

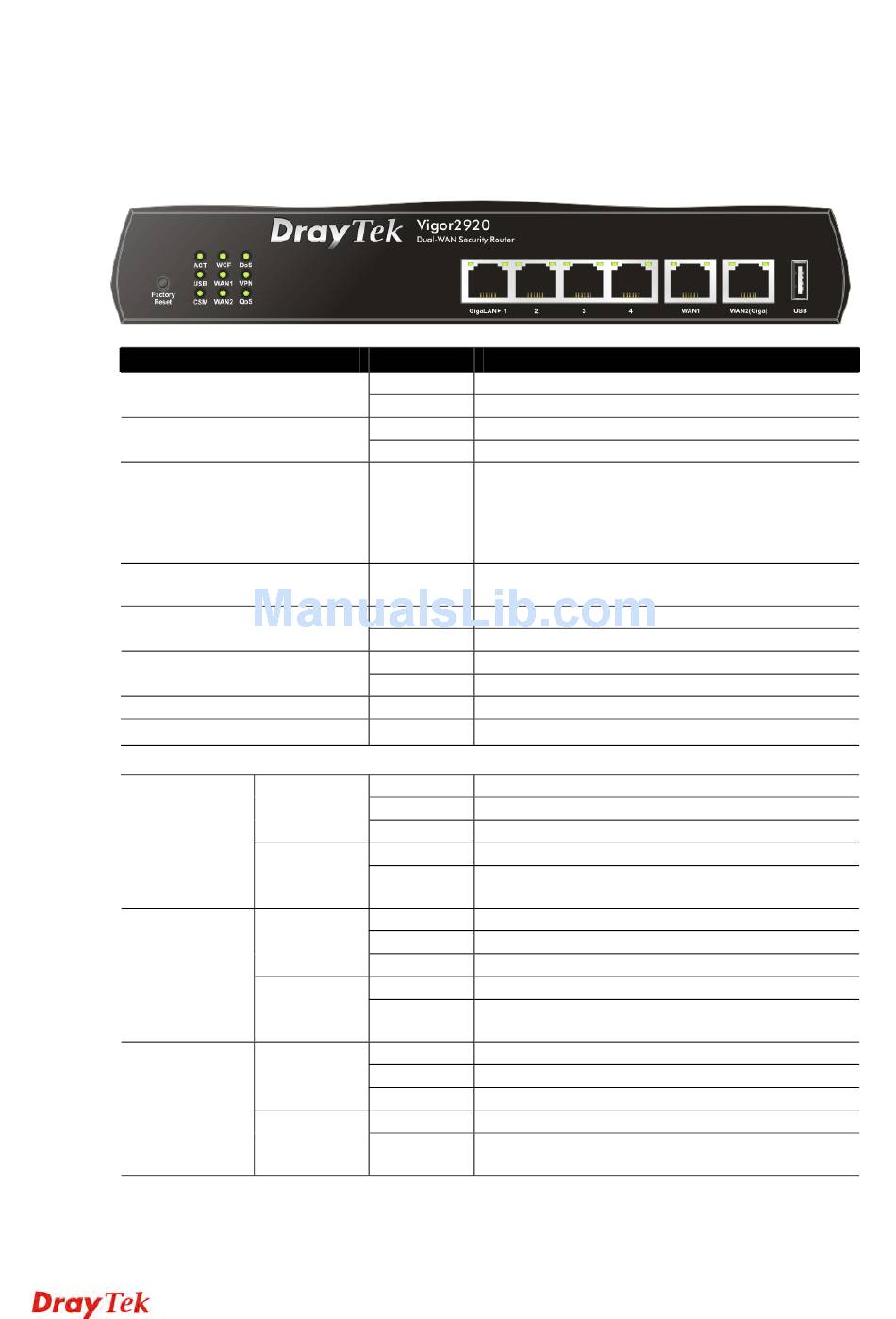

Before you use the Vigor router, please get acquainted with the LED indicators and connectors
first.
1 . 2 . 1 F o r V i g o
1 . 2 . 1 F o r V i g o
LED
ACT (Activity)
USB
CSM
WCF
WAN1/2
DoS
VPN
QoS
LED on Connector
WAN1
WAN2(Giga)
GigaLAN
1/2/3/4
a t o r s a n d C o n
a t o r s a n d C o n
r 2 9 2 0
r 2 9 2 0
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
n e c t o r s
n e c t o r s
Status Explanation
Blinking The router is powered on and running normally.
Off The router is powered off.
On USB device is connected and ready for use.
Blinking The data is transmitting.
On The profile(s) of CSM (Content Security
Management) for IM/P2P, URL/Web Content Filter
application is enabled from Firewall >>General
Setup. (Such profile must be established under
CSM menu).
On The Web Content Filter is active. (It is enabled
from Firewall >> General Setup).
On The WAN1 or WAN2 connection is ready.
Blinking It will blink while transmitting data.
On The DoS/DDoS function is active.
Blinking It will blink while an attack is detected.
On The VPN tunnel is active.
On The QoS function is active.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is connected with 10Mbps when left LED
is on.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps when left
LED is on.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps when left
LED is on.
3
Vigor2920 Series User's Guide
