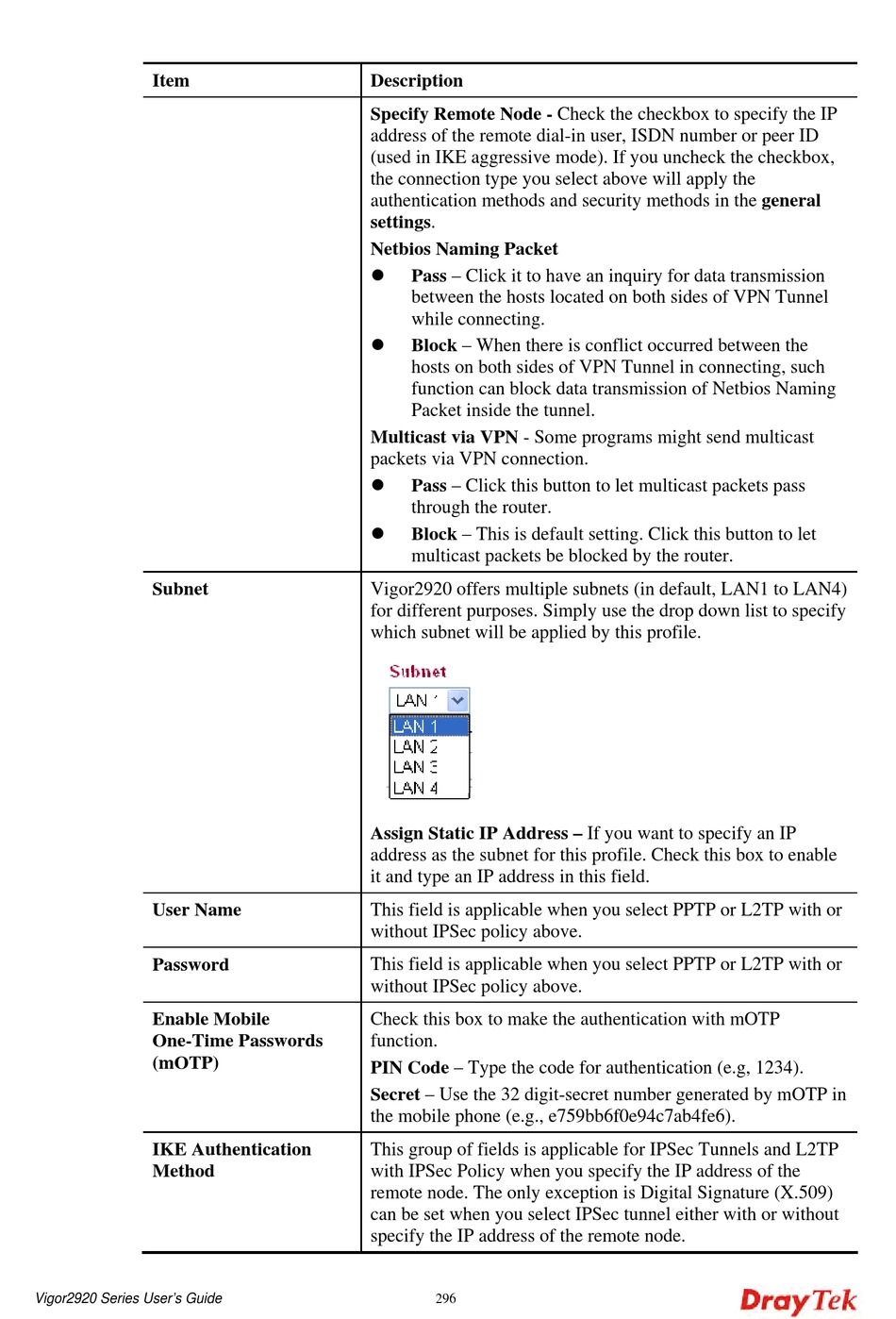

Draytek Vigor2920 Series User Manual page 306

Item
Subnet
User Name
Password
Enable Mobile
One-Time Passwords
(mOTP)
IKE Authentication
Method
Vigor2920 Series User's Guide
Description
Specify Remote Node - Check the checkbox to specify the IP
address of the remote dial-in user, ISDN number or peer ID
(used in IKE aggressive mode). If you uncheck the checkbox,
the connection type you select above will apply the
authentication methods and security methods in the general
settings.
Netbios Naming Packet

Pass – Click it to have an inquiry for data transmission
between the hosts located on both sides of VPN Tunnel
while connecting.

Block – When there is conflict occurred between the
hosts on both sides of VPN Tunnel in connecting, such
function can block data transmission of Netbios Naming
Packet inside the tunnel.
Multicast via VPN - Some programs might send multicast
packets via VPN connection.

Pass – Click this button to let multicast packets pass
through the router.

Block – This is default setting. Click this button to let
multicast packets be blocked by the router.
Vigor2920 offers multiple subnets (in default, LAN1 to LAN4)
for different purposes. Simply use the drop down list to specify
which subnet will be applied by this profile.
Assign Static IP Address – If you want to specify an IP
address as the subnet for this profile. Check this box to enable
it and type an IP address in this field.
This field is applicable when you select PPTP or L2TP with or
without IPSec policy above.
This field is applicable when you select PPTP or L2TP with or
without IPSec policy above.
Check this box to make the authentication with mOTP
function.
PIN Code – Type the code for authentication (e.g, 1234).
Secret – Use the 32 digit-secret number generated by mOTP in
the mobile phone (e.g., e759bb6f0e94c7ab4fe6).
This group of fields is applicable for IPSec Tunnels and L2TP
with IPSec Policy when you specify the IP address of the
remote node. The only exception is Digital Signature (X.509)
can be set when you select IPSec tunnel either with or without
specify the IP address of the remote node.
296
