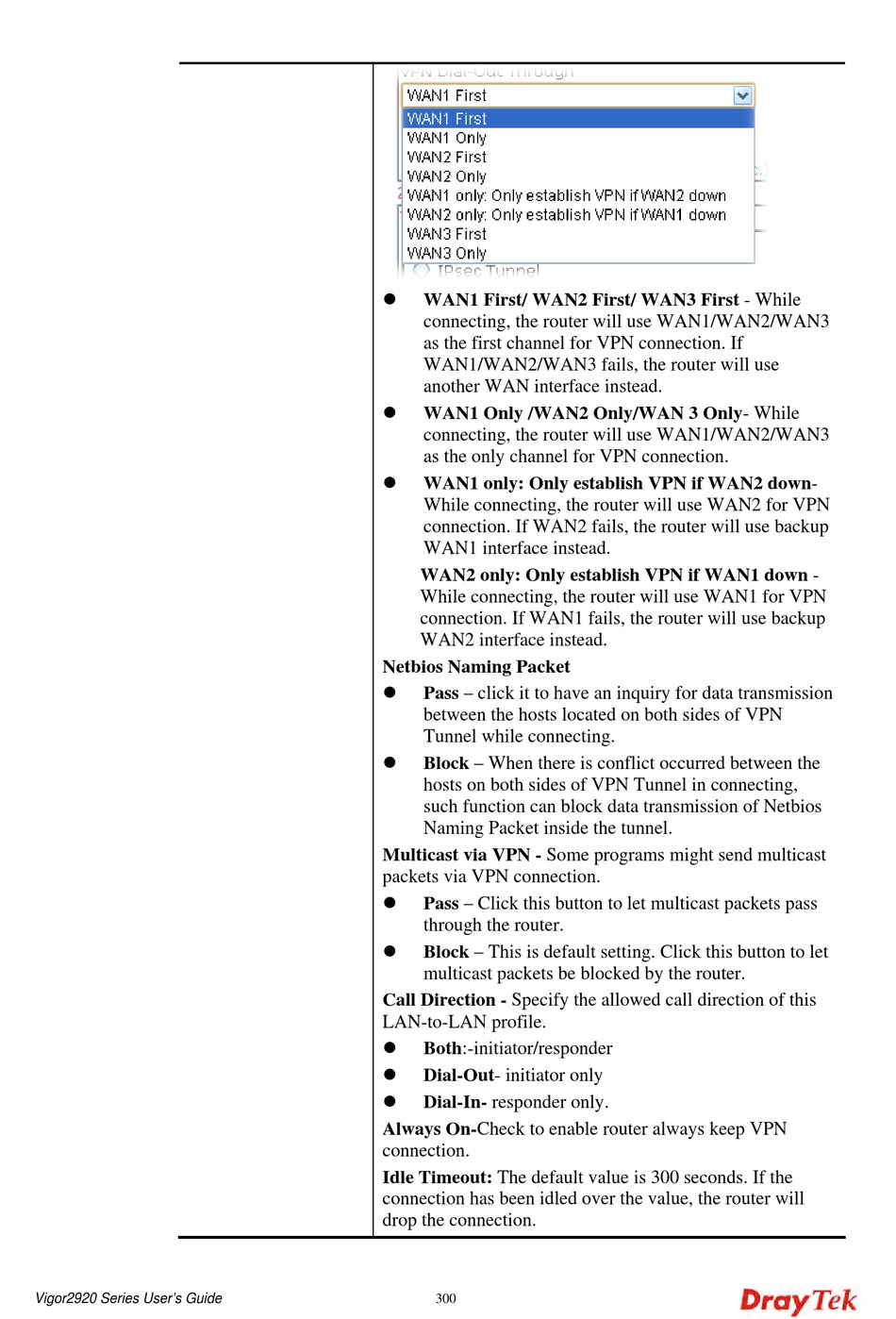

Draytek Vigor2920 Series User Manual page 310

Vigor2920 Series User's Guide

WAN1 First/ WAN2 First/ WAN3 First - While
connecting, the router will use WAN1/WAN2/WAN3
as the first channel for VPN connection. If
WAN1/WAN2/WAN3 fails, the router will use
another WAN interface instead.

WAN1 Only /WAN2 Only/WAN 3 Only- While
connecting, the router will use WAN1/WAN2/WAN3
as the only channel for VPN connection.

WAN1 only: Only establish VPN if WAN2 down-
While connecting, the router will use WAN2 for VPN
connection. If WAN2 fails, the router will use backup
WAN1 interface instead.
WAN2 only: Only establish VPN if WAN1 down -
While connecting, the router will use WAN1 for VPN
connection. If WAN1 fails, the router will use backup
WAN2 interface instead.
Netbios Naming Packet

Pass – click it to have an inquiry for data transmission
between the hosts located on both sides of VPN
Tunnel while connecting.

Block – When there is conflict occurred between the
hosts on both sides of VPN Tunnel in connecting,
such function can block data transmission of Netbios
Naming Packet inside the tunnel.
Multicast via VPN - Some programs might send multicast
packets via VPN connection.

Pass – Click this button to let multicast packets pass
through the router.

Block – This is default setting. Click this button to let
multicast packets be blocked by the router.
Call Direction - Specify the allowed call direction of this
LAN-to-LAN profile.

Both:-initiator/responder

Dial-Out- initiator only

Dial-In- responder only.
Always On-Check to enable router always keep VPN
connection.
Idle Timeout: The default value is 300 seconds. If the
connection has been idled over the value, the router will
drop the connection.
300
