Replacement:
1. Position the Media Hub Shaft in the printer and secure using the three screws
2. Replace the Power Supply Board and the Guide Plate.
3. Slide the Media Hub and its internal parts on to the Media Hub Shaft in the order shown.

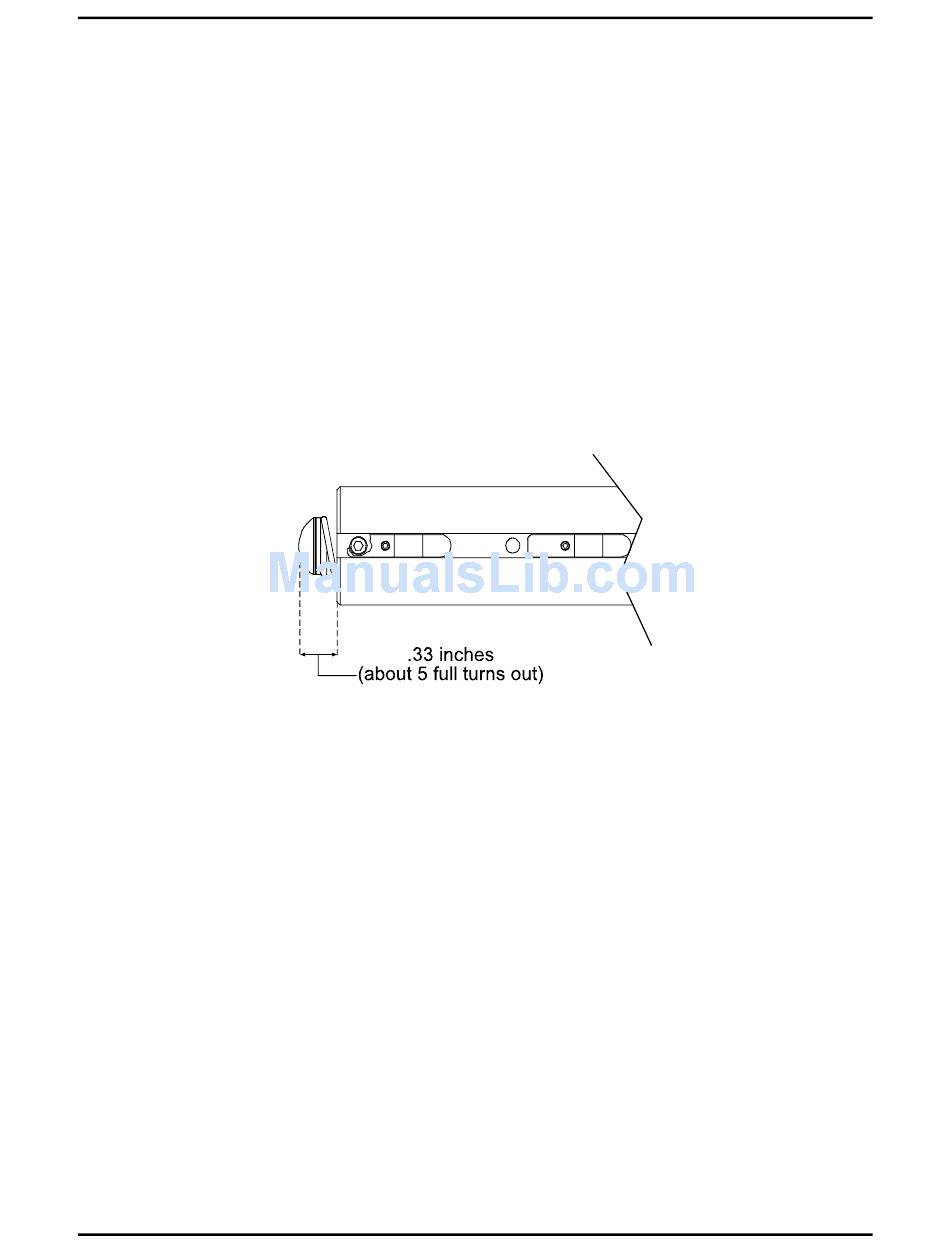

4. Reinstall the Spring, Washers and Socket Head Screw into the end of the Media Hub Shaft, as shown.
Tightening the screw increases the torque (the amount of drag) of the Media Hub; loosening the
screw decreases the torque.
Removal and Replacement
4-19
