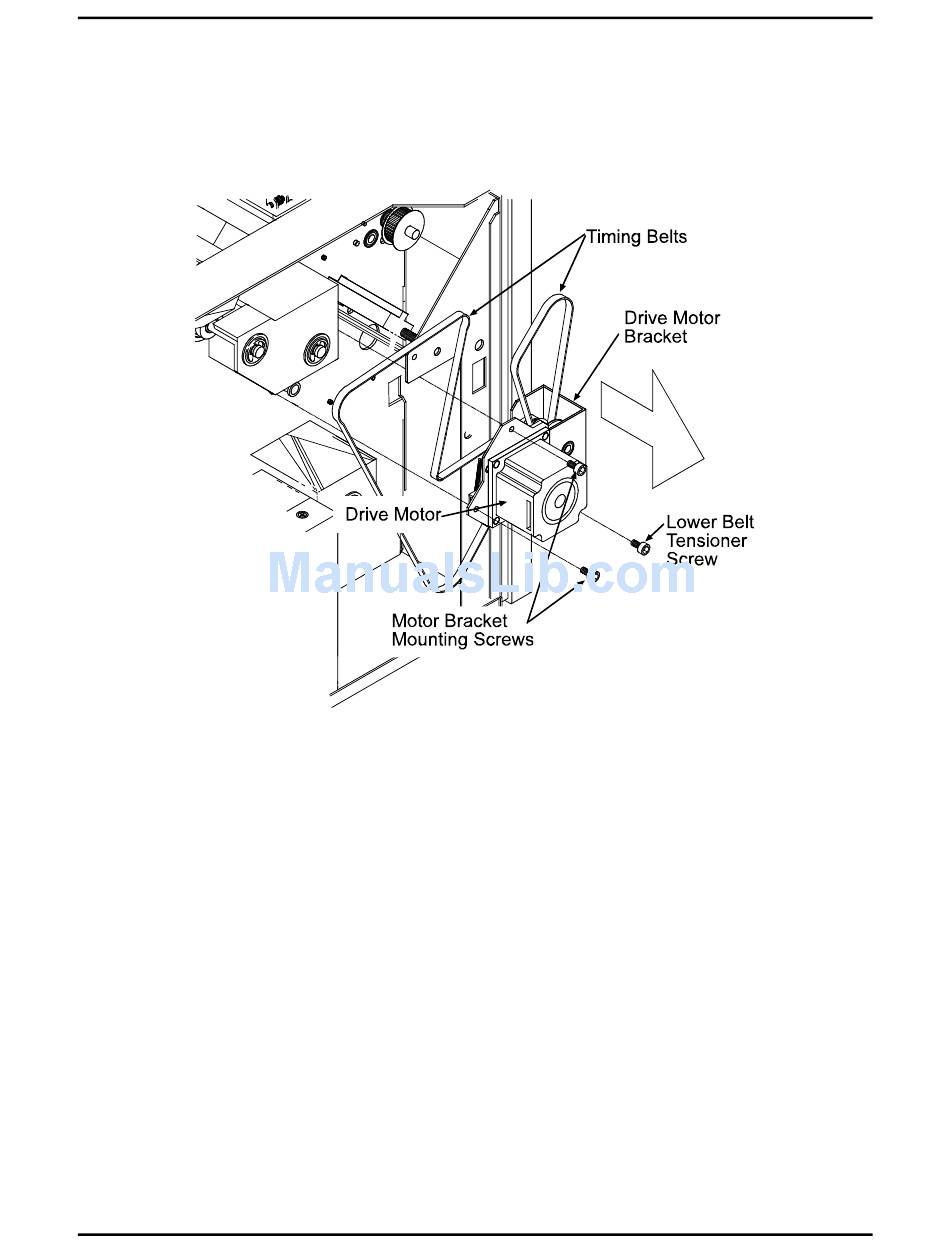

6. First loosen the two Motor Bracket Mounting Screws, and then free the Timing Belts from their
pulleys within the printer.
7. Remove the two Motor Bracket Mounting Screws that secure the Drive Motor Bracket to the chassis
of the printer and carefully remove the entire assembly.
8. Remove the two Drive Motor Mounting Screws that the secure the Drive Motor to the Drive Motor
Bracket.
