Wiring the network cable
The cable can be terminated as either a patch cable or a crossover cable (figure 2-8)
and must be properly terminated for your application:
•
Patch (straight) cable — Connection of the ISS to an Ethernet hub, router, or
switcher that also hosts a controlling computer.
•
Crossover cable — Direct connection between the ISS and a controlling
computer.
Side
Clip Down
Pins
1
2 3 4 5 6 7 8
1
2 3 4 5 6 7 8
1&2
3&6 4&5

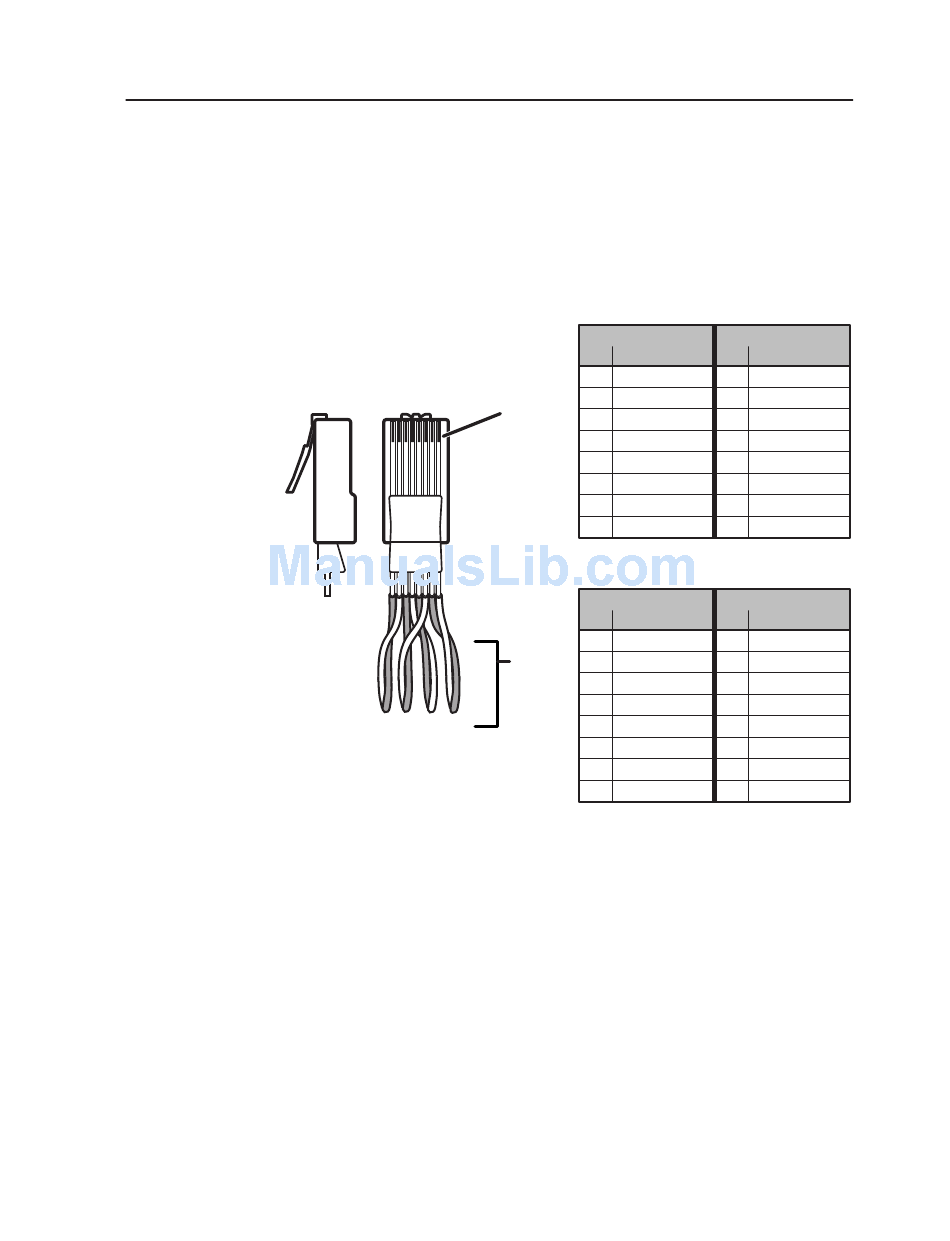

Figure 2-8 — RJ-45 connector pinout table
Side 1
Pin
Wire color
1
White-orange
2
Orange
RJ-45
3
White-green
connector
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
Side 1
Pin
Wire color
1
White-orange
Twisted
2
Orange
Pairs
3
White-green
7&8
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
Integration Seamless Switcher • Installation
Patch (straight) cable
Side 2
Pin
Wire color
1
White-orange
2
Orange
3
White-green
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
Crossover cable
Side 2
Pin
Wire color
1
White-green
2
Green
3
White-orange
4
Blue
5
White-blue
6
Orange
7
White-brown
8
Brown
2-7
