ATTENTION:
•
Installation and service must be performed by authorized personnel only. UL listed junction boxes
are recommended.
•
L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement. Des boîtiers
électriques approuvés UL sont recommandés.
•
The length of the exposed wires in the stripping process is critical. The ideal length is 3/16 inches
(5 mm). If they are any longer, the exposed wires may touch, causing a short circuit between them.
If they are any shorter, the wires can be easily pulled out even if tightly fastened by the captive
screws.
•
La longueur des câbles exposés est primordiale lorsque l'on entreprend de les dénuder. La
longueur idéale est de 5 mm (3/16 inches). S'ils sont un peu plus longs, les câbles exposés
pourraient se toucher et provoquer un court circuit. S'ils sont un peu plus courts, ils pourraient
sortir, même s'ils sont attachés par les vis captives.

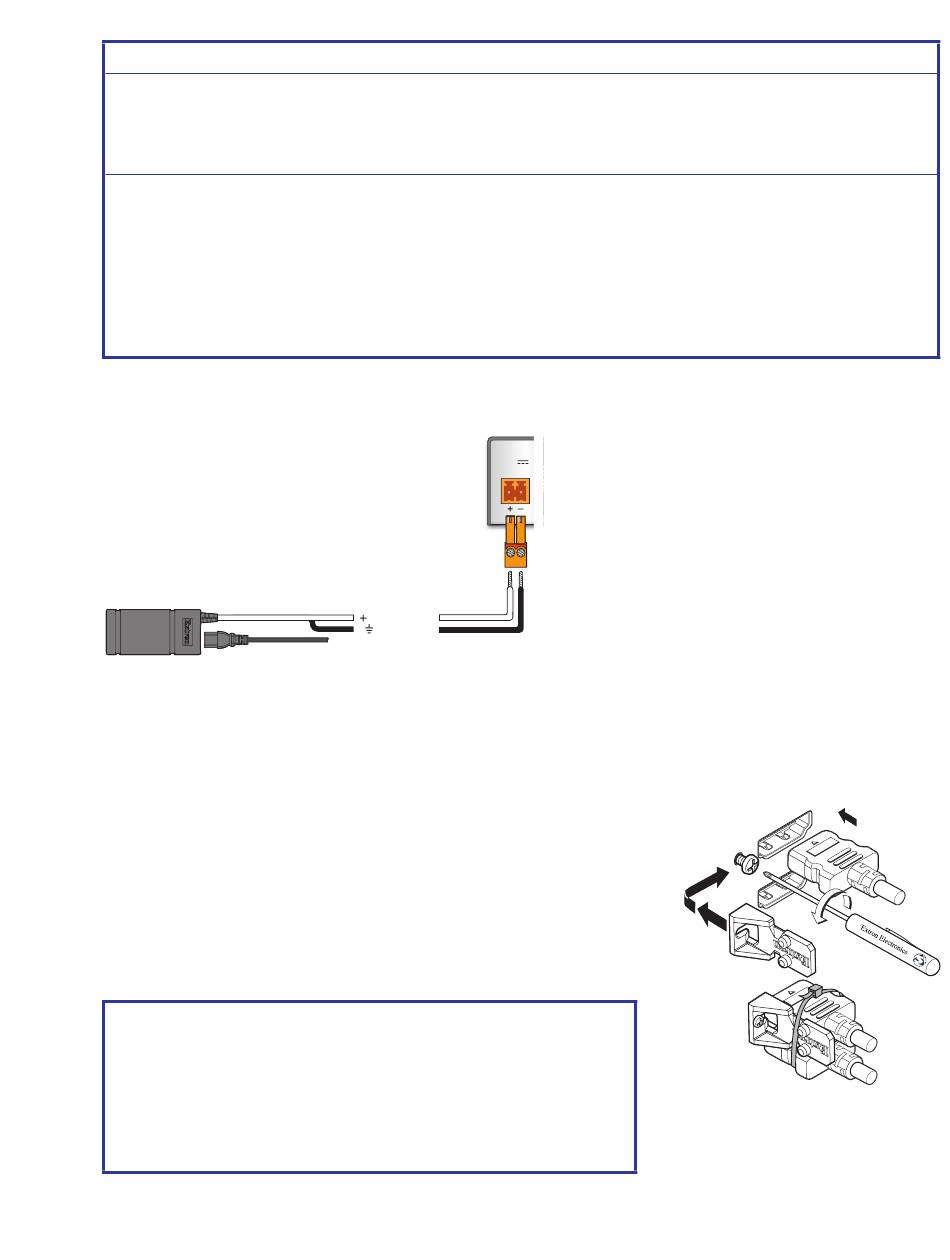

2. Plug the connector into the orange 2-pole captive screw power connector on the rear panel. In the example
shown in figure 11, a power supply is being connected to the power connector of a DXP HD 4K PLUS.
External
Power Supply
(1.5 A, 12 VDC)
Figure 11. Connecting a Power Supply to a DXP 42 HD 4K PLUS
Securing the HDMI Connectors Using the LockIt HDMI Cable Lacing Bracket
After connecting an input or output device to an HDMI connector, secure the
connector in place with the provided LockIt bracket (see the illustration at
night):
1. Plug one or both HDMI cables into the panel connection (
2. Loosen the HDMI connection mounting screw from the panel enough
to allow the LockIt lacing bracket to be placed over it (
3. Place the LockIt lacing bracket onto the screw and slide it up against
the HDMI connectors. Tighten the screw to secure the bracket (
ATTENTION:
•
Do not overtighten the HDMI connector mounting screw.
The shield to which it fastens is very thin and can easily be
stripped.
•
Ne serrez pas trop la vis de montage du connecteur HDMI.
Le blindage auquel elle est attachée est très fin et peut
facilement être dénudé.
12 VDC Input
Ground
Ground all devices.
POWER
12V
1.5A MAX
HDMI
).
1
3 3 3
).
2
).
3
DXP HD 4K PLUS Series • Installation
1 1 1
2 2 2
5 5 5
4 4 4
15
