Cabling and Rear Panel Views

All connectors are on the rear panel (figure 2-2).
100- 240 50/60 Hz
1.2A MAX.
1

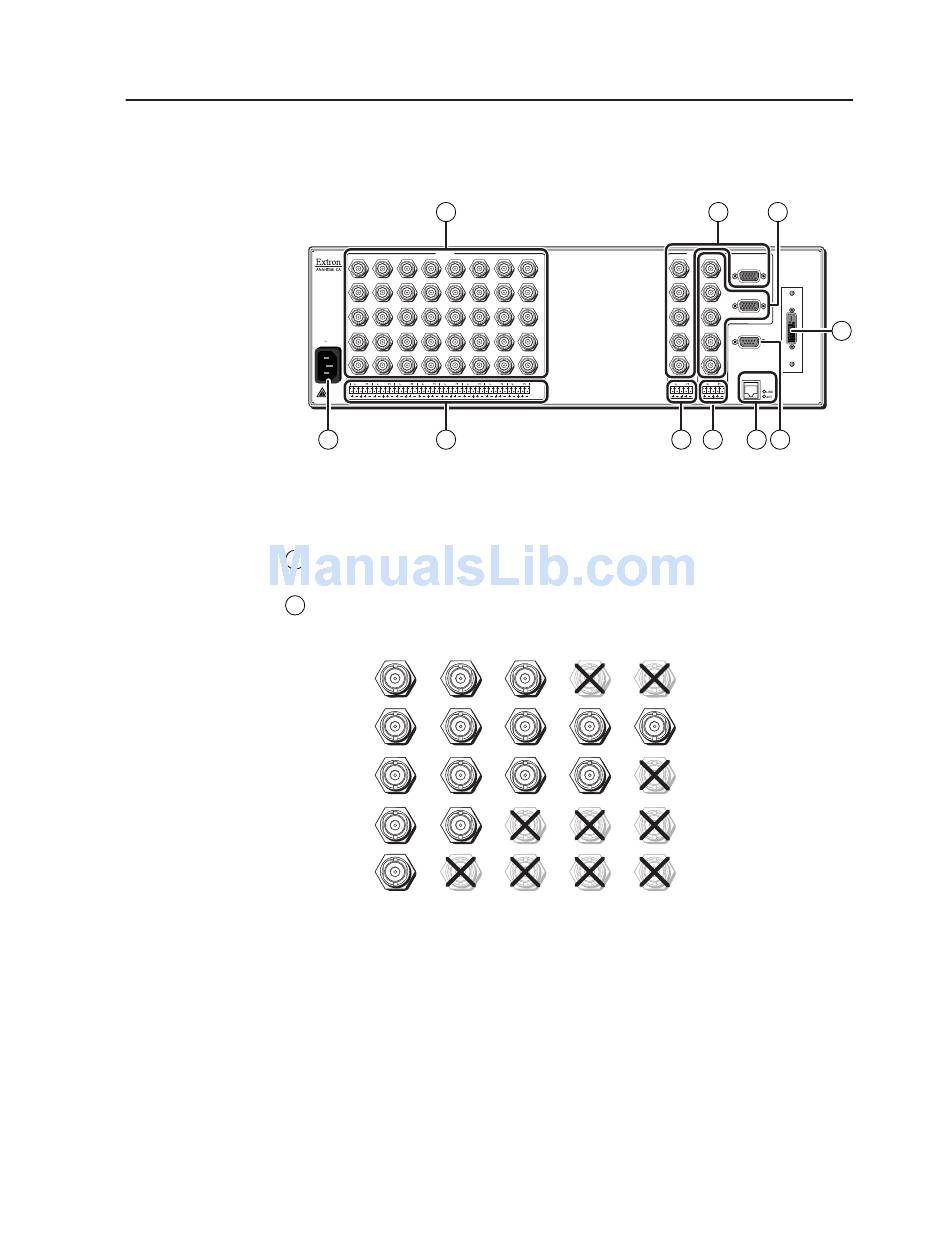

Figure 2-2 — ISS 408 rear panel connectors

Input connections

AC power connector — Plug a standard IEC power cord into this connector
1
to connect the switcher to a 100 to 240 VAC, 50 Hz or 60 Hz power source.
Input video connectors — Connect computer or RGB video, component
2
video, S-video, or composite video to these female BNC connectors.
Figure 2-3 shows how to connect the various video formats.
Figure 2-3 — Connections for various input video formats
2
INPUTS
1 2 3 4 5 6 7 8
R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y
G/Y G/Y G/Y G/Y G/Y G/Y G/Y G/Y
VID VID VID VID VID VID VID VID
B/C B/C B/C B/C B/C B/C B/C B/C
B-Y B-Y B-Y B-Y B-Y B-Y B-Y B-Y
H/HV H/HV H/HV H/HV H/HV H/HV H/HV H/HV
V V V V V V V V
1 2 3 4 5 6 7 8
3
R/R-Y R/R-Y R/R-Y
G/Y G/Y
VID VID
B/C B/C
B-Y B-Y
H/HV H/HV
V V
RGBHV RGBS or RGsB or
Video RGBcvS Component
Video Video
Integration Seamless Switcher • Installation
4
OUTPUTS
PROGRAM PREVIEW
R
G
B
H/HV H/HV
V
6 7
R/R-Y R/R-Y
G/Y G/Y G/Y
VID VID VID
B/C B/C B/C
B-Y B-Y B-Y
H/HV H/HV H/HV
V V V
S-Video Composite
Video
5
PROGRAM
R
PREVIEW
DVI OUT
G
B
8
RS-232
V
ETHERNET
9 10
2-3
