Operation, cont'd
3.
CUT

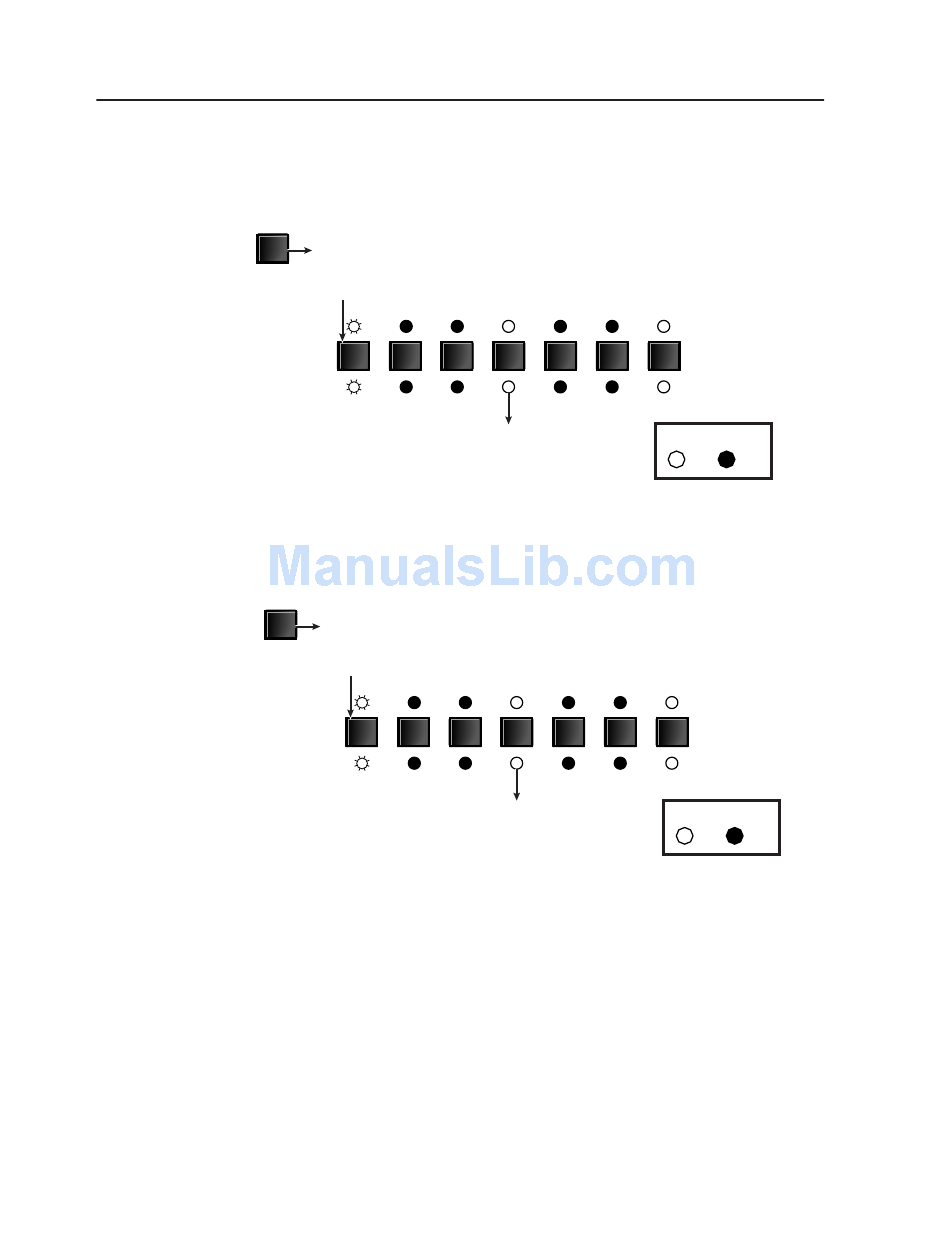

Figure 3-7 — Cutting to the selected input
DISSOLVE
Figure 3-8 — Dissolving to the selected input
3-6
Integration Seamless Switcher • Operation
Press and release either the Cut or Dissolve button.
Cut button — The ISS immediately switches the input selected as the preview
output to the program output, with no switching effects added (figure 3-7).
Press and release the Cut button.
The Input 3 video (upper) LED and Input 3 audio (lower) LED
immediately light steadily to indicate that the video and audio
inputs are selected, the video is scaled, and output as the
program output.
3
4
5
3
4
5
The Input 6 video (upper) LED and Input 6 audio (lower) LED go
out to indicate that the video and audio inputs are deselected.
Dissolve button — The ISS switches the input selected as the preview output
to the program output using the dissolve effect (figure 3-8).
Press and release the Dissolve button.
After a user-defined interval, the Input 3 video (upper) LED
and Input 3 audio (lower) LED light steadily to indicate that
the video and audio inputs are selected, the video is scaled,
and output as the program output.
3
4
5
3
4
5
The Input 6 video (upper) LED and Input 6 audio (lower) LED go
out to indicate that the video and audio inputs are deselected.
6
7
8
VIDEO
6
7
8
AUDIO
LED key:
6
7
8
VIDEO
6
7
8
AUDIO
LED key:
= on,
= off
= on,
= off
