Using the control program
Many items found in the ISS/ISM Control Program are also accessible via front
panel controls and the LCD menus, see chapter 3, Operation, and under SIS control,
see chapter 4, Programmer's Guide. The ISS/ISM Help Program provides
information on settings and on how to use the control program itself.
1.
To run the control program, double-click the ISS/ISM Control Pgm icon in the

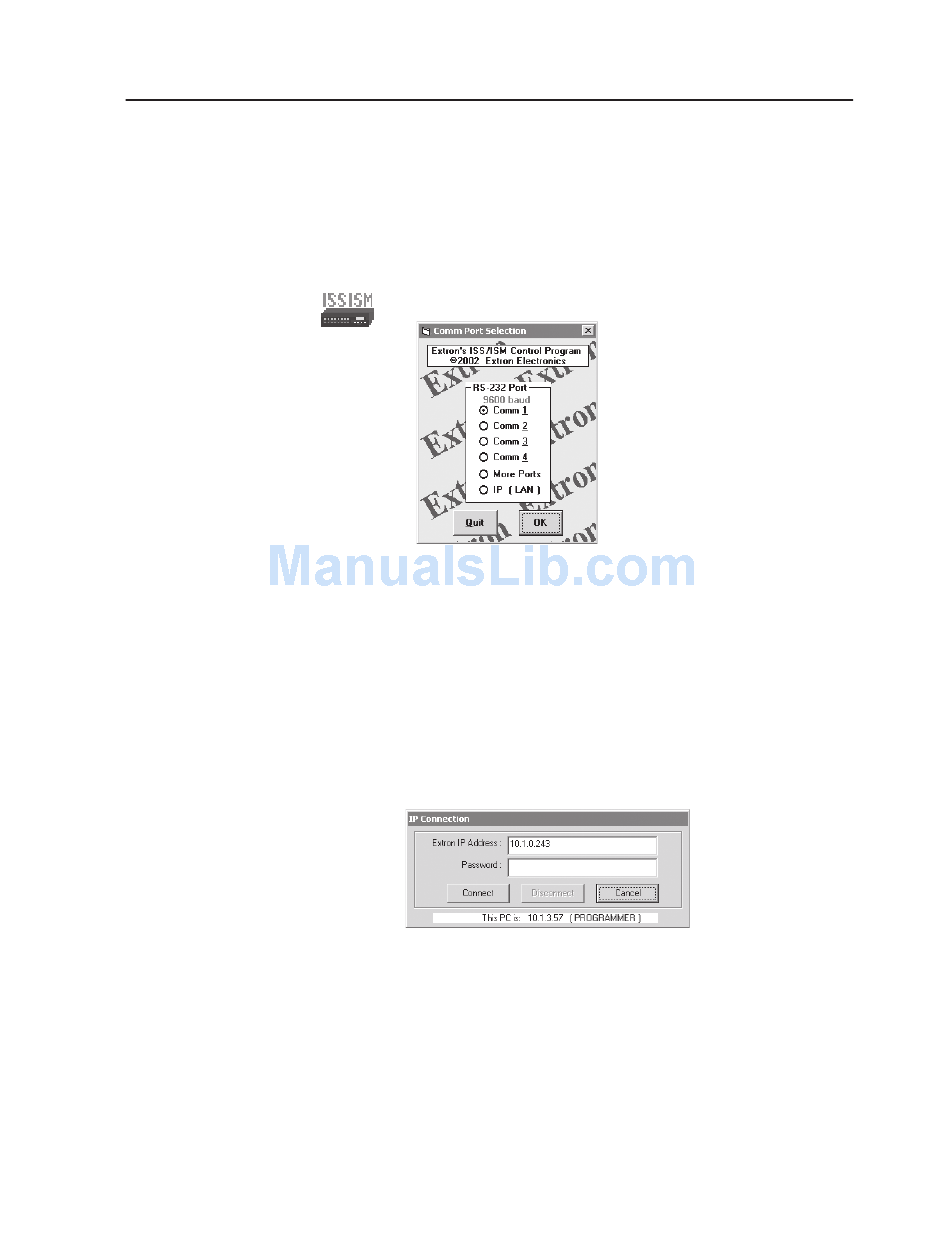

Figure 5-1 — Comm port selection window
2.
Select the comm port that is connected to the ISS's Remote port or select
IP [LAN] and click OK.
If you selected a comm port, proceed to step 5.
If you selected IP [LAN], proceed to step 3.
3.
If you selected IP [LAN] in step 2, the IP connection window appears
(figure 5-2). The window displays the last IP address that this computer was
logged on to via the ISS/ISM Control program. If no one has logged on to the
ISS from this computer, enter the switcher's ISS IP address. If the address has
not been changed, the factory-specified default is 192.168.254.254.
Figure 5-2 — Address and password entry
If you selected IP [LAN] in step 2, when prompted, enter the appropriate
4.
administrator or user password and click Connect.
If you logged on using the administrator password, the Windows program
connects you to the ISS with all of the administrator rights and privileges.
If you logged on using the user password, the Windows program connects
you to the ISS with only user capabilities.
If an incorrect password was entered, the program beeps and returns to the
password entry display.
Extron Electronics group or folder. The Comm menu appears on
the screen (figure 5-1).
Integration Seamless Switcher • Switcher Software
5-3
