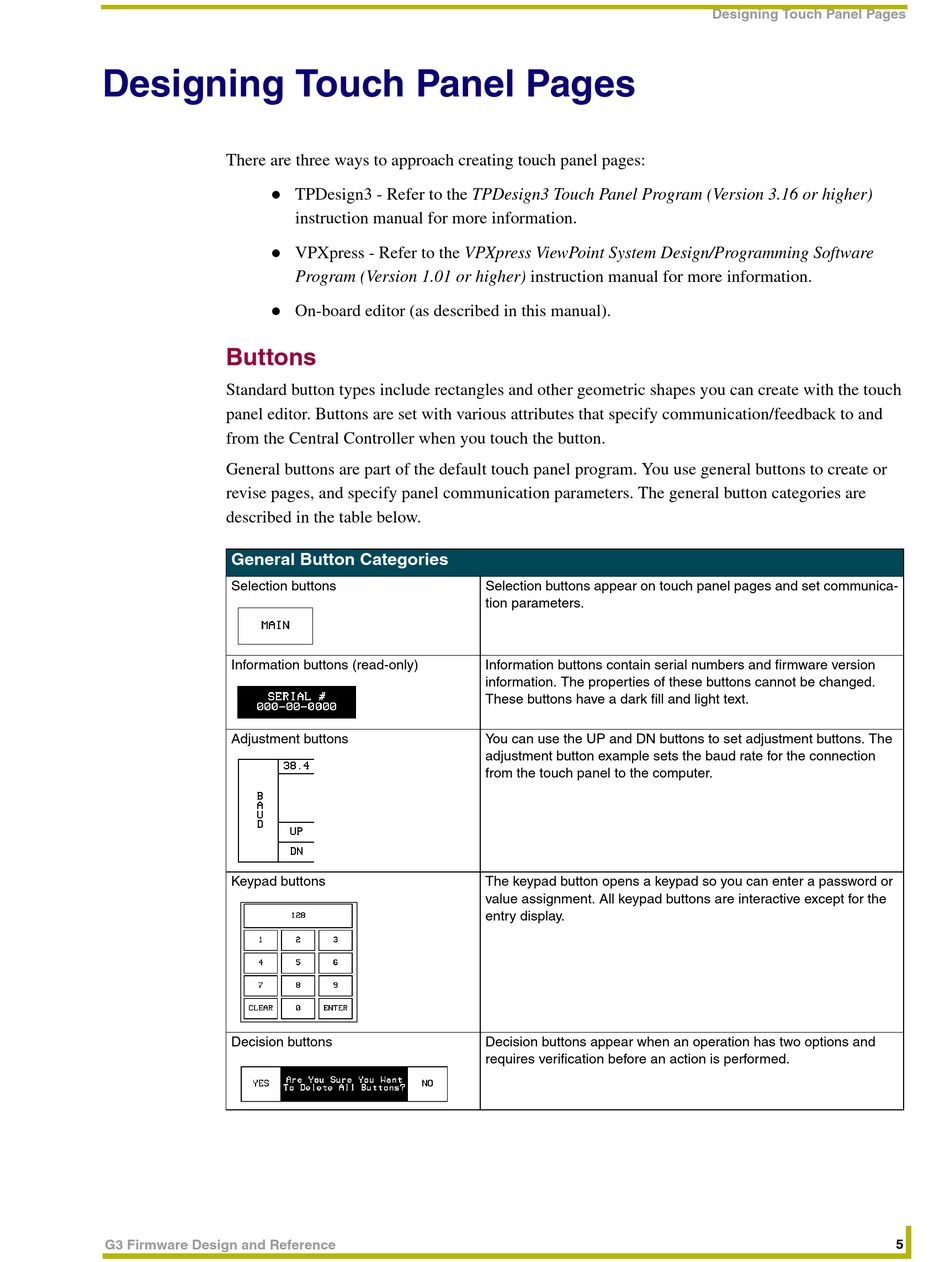

Designing Touch Panel Pages
There are three ways to approach creating touch panel pages:
!
!
!
Buttons
Standard button types include rectangles and other geometric shapes you can create with the touch
panel editor. Buttons are set with various attributes that specify communication/feedback to and
from the Central Controller when you touch the button.
General buttons are part of the default touch panel program. You use general buttons to create or
revise pages, and specify panel communication parameters. The general button categories are
described in the table below.
General Button Categories
Selection buttons
Information buttons (read-only)
Adjustment buttons
Keypad buttons
Decision buttons
G3 Firmware Design and Reference
TPDesign3 - Refer to the TPDesign3 Touch Panel Program (Version 3.16 or higher)
instruction manual for more information.
VPXpress - Refer to the VPXpress ViewPoint System Design/Programming Software
Program (Version 1.01 or higher) instruction manual for more information.
On-board editor (as described in this manual).
Selection buttons appear on touch panel pages and set communica-
tion parameters.
Information buttons contain serial numbers and firmware version
information. The properties of these buttons cannot be changed.
These buttons have a dark fill and light text.
You can use the UP and DN buttons to set adjustment buttons. The
adjustment button example sets the baud rate for the connection
from the touch panel to the computer.
The keypad button opens a keypad so you can enter a password or
value assignment. All keypad buttons are interactive except for the
entry display.
Decision buttons appear when an operation has two options and
requires verification before an action is performed.
Designing Touch Panel Pages
5
