Controls and displays
03

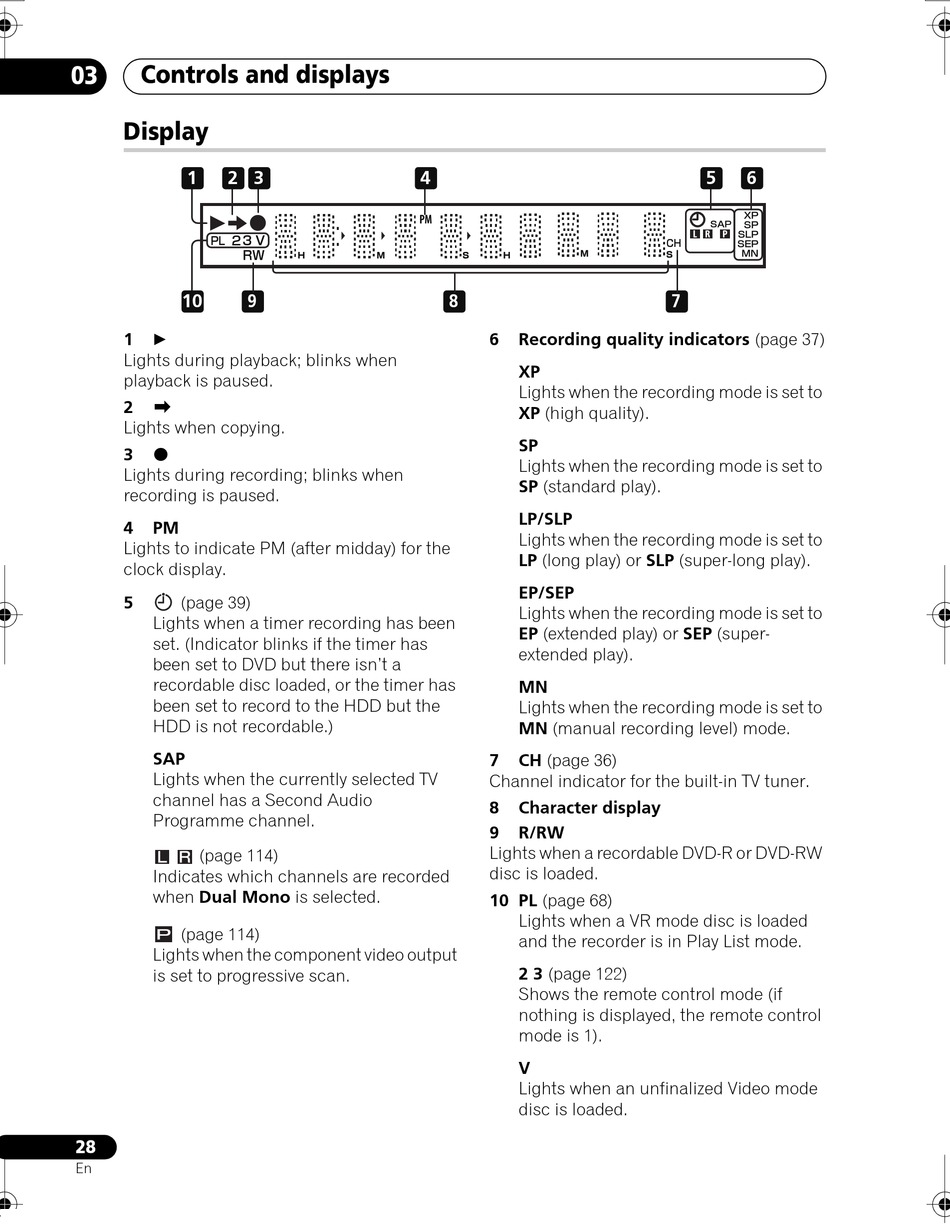

Display

1 2
10

1
Lights during playback; blinks when
playback is paused.

2
Lights when copying.

3
Lights during recording; blinks when
recording is paused.
4 PM
Lights to indicate PM (after midday) for the
clock display.
5 (page 39)
Lights when a timer recording has been
set. (Indicator blinks if the timer has
been set to DVD but there isn't a
recordable disc loaded, or the timer has
been set to record to the HDD but the
HDD is not recordable.)
SAP
Lights when the currently selected TV
channel has a Second Audio
Programme channel.
(page 114)
Indicates which channels are recorded
when Dual Mono is selected.
(page 114)
Lights when the component video output
is set to progressive scan.
28
En
3
9
4
PM
8
Recording quality indicators (page 37)
6
XP
Lights when the recording mode is set to
XP (high quality).
SP
Lights when the recording mode is set to
SP (standard play).
LP/SLP
Lights when the recording mode is set to
LP (long play) or SLP (super-long play).
EP/SEP
Lights when the recording mode is set to
EP (extended play) or SEP (super-
extended play).
MN
Lights when the recording mode is set to
MN (manual recording level) mode.
CH (page 36)
7
Channel indicator for the built-in TV tuner.
8 Character display
9 R/RW
Lights when a recordable DVD-R or DVD-RW
disc is loaded.
10 PL (page 68)
Lights when a VR mode disc is loaded
and the recorder is in Play List mode.
2 3 (page 122)
Shows the remote control mode (if
nothing is displayed, the remote control
mode is 1).
V
Lights when an unfinalized Video mode
disc is loaded.
5 6
L R P
7
