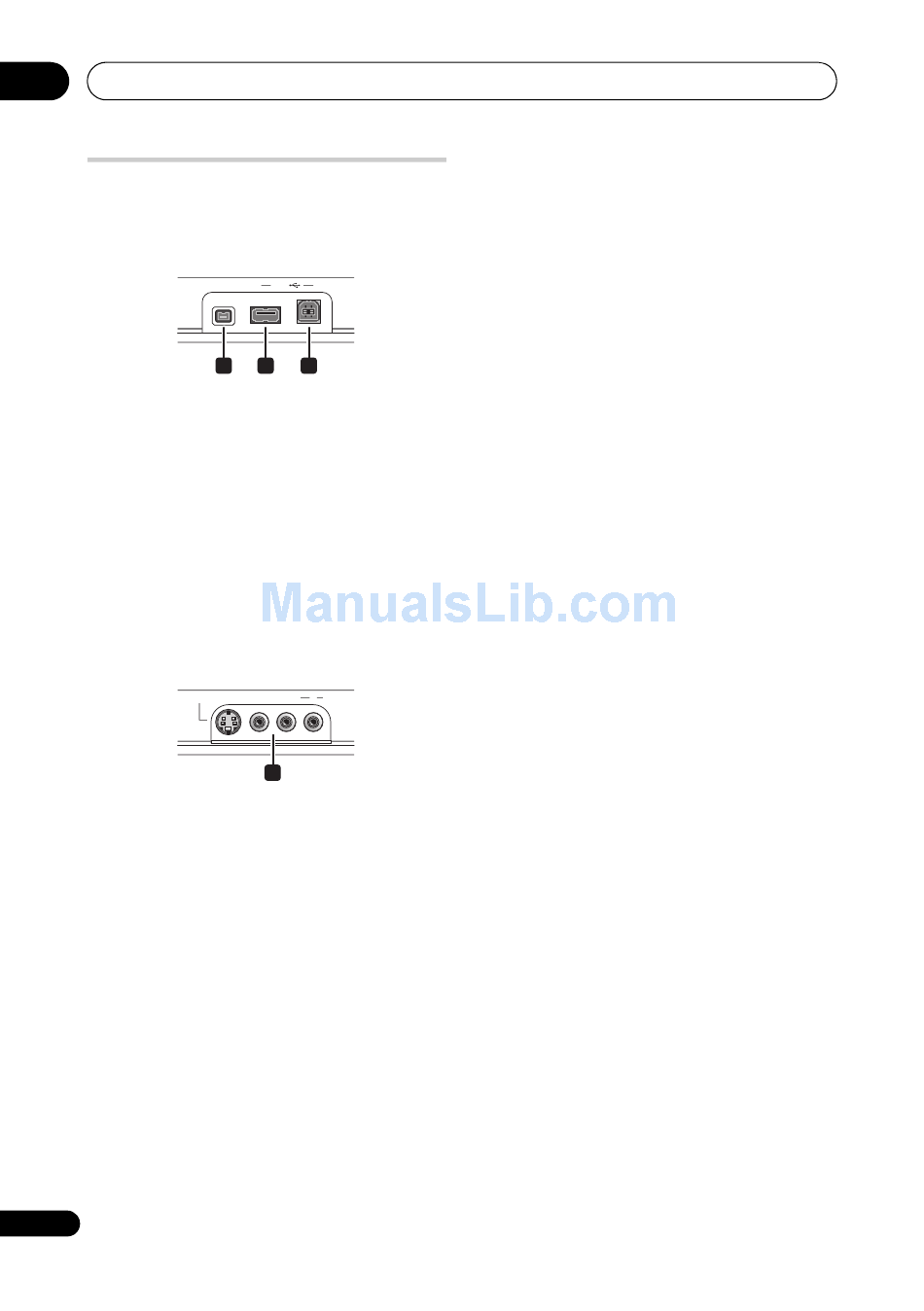

Front panel connections

On the front panel there is a flip-down cover
that hides more connections.
Left side:
1 DV IN
A DV input i.LINK connector, suitable for
connecting a DV camcorder.
2 USB port (Type A)
USB port for connecting an HDD
camcorder, digital camera, keyboard or
other USB device.
3 USB port (Type B)
USB port for connecting a PictBridge-
compatible printer or PC.
Right side:
INPUT 2
4 INPUT 2
Audio/video input (stereo analog audio;
composite and S-Video), especially suitable
for camcorders, game consoles, portable
audio, etc.
16
En
DV IN USB
1 2 3
S-VIDEO VIDEO L(MONO) R AUDIO
4
