Connections
02
Connect PC with this device, your PC
must run either the Windows XP Home
Edition (SP2), Windows XP Professional
(SP2) or Windows Vista Home Premium
operating system and be able to run
Windows Media Player 11. Even if your
PC can run Windows Media Player 11,
we cannot guarantee that it will function
properly with this device. For more
details see the 'Help' section of Windows
Media Player 11.

Network connection

(DVR-660H-K only)
This recorder can be connected to a local
area network (LAN) via the Ethernet port on
the rear panel.
When this recorder is connected to a
network, audio and video files stored on a PC
can be copied, and Audio CD title names can
be searched for on the Internet.
When the router connected to the LAN
terminal of this unit has the DHCP server
function, the network settings of this unit
can be made unnecessary by enabling the
DHCP server function of the router.
When the connected router does not have
the DHCP function, make the network
settings of this unit after connecting the
router — see Network (DVR-660H-K only) on
page 121 for detailed instructions.
For best performance, we recommend using
a 100BASE-TX compatible PC and Ethernet
hub.
26
En

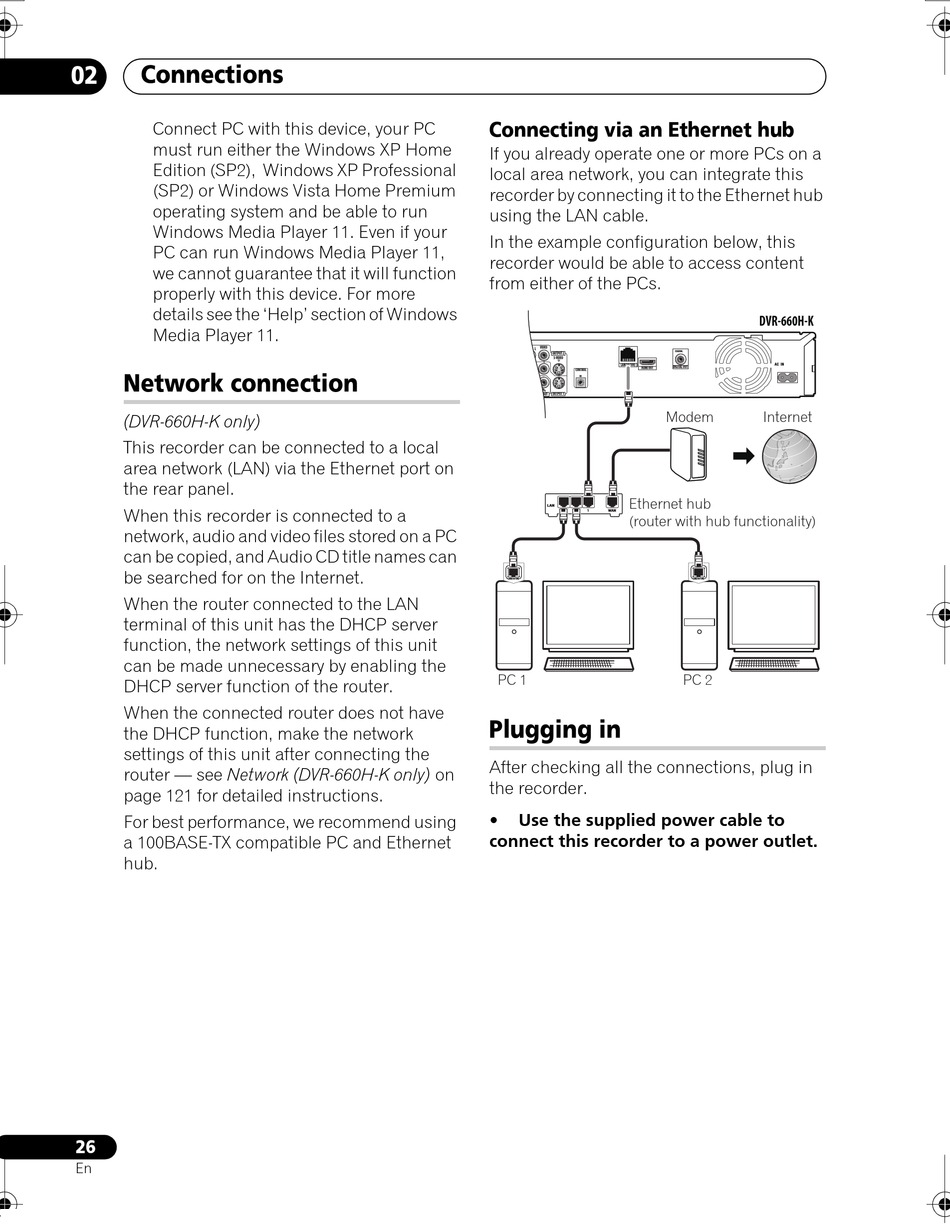

Connecting via an Ethernet hub
If you already operate one or more PCs on a
local area network, you can integrate this
recorder by connecting it to the Ethernet hub
using the LAN cable.
In the example configuration below, this
recorder would be able to access content
from either of the PCs.
VIDEO
L
OUTPUT 2
S-VIDEO
LAN(10/100)
HDMI OUT
CONTROL
IN
P
B P
R
OUTPUT 1
NENT VIDEO OUT
Ethernet hub
LAN
3 2 1 WAN
(router with hub functionality)
LAN(10/100)
PC 1

Plugging in

After checking all the connections, plug in
the recorder.
• Use the supplied power cable to
connect this recorder to a power outlet.
DVR-660H-K
COAXIAL
AC IN
DIGITAL OUT
Modem Internet

LAN(10/100)
PC 2
