Connections
Connecting to an AV

amplifier/receiver

To enjoy multichannel surround sound you
need to connect this recorder to an AV amp/
receiver using the digital coaxial output. In
addition to the digital connection, we
recommend also connecting using the
stereo analog connection.
You'll probably also want to connect a video
output to your AV amp/receiver. Use the
standard (composite) video output (as
shown here), or the S-video or component
video connections.
See also Audio Out on page 115 for how to
set up the digital audio output. (Noise may
be output from your speakers if the recorder
is not set up to work with your AV amp/
receiver.)
Important
• Do not connect this recorder to your TV
'through' your VCR or other component
using A/V cables. Always connect it
directly to your TV.
Note
1 If your AV amp/receiver doesn't have an coaxial digital input, but has a optical type, converter boxes that convert
from coaxial to optical are available at specialist audio dealers.
1
ANTENNA
Antenna/cable TV
IN (RF IN)
wall outlet
ANTENNA
AUDIO VIDEO
R L
IN
OUTPUT 2
INPUT 3
S-VIDEO
S-VIDEO
AUDIO VIDEO
R L
CONTROL
IN
OUT
INPUT 1/AUTO START REC Y P B P R
COMPONENT VIDEO OUT OUTPUT 1
ANTENNA
OUTPUT 1
OUT
2
1
To audio/
video input
AV amp/receiver
To antenna
input
TV

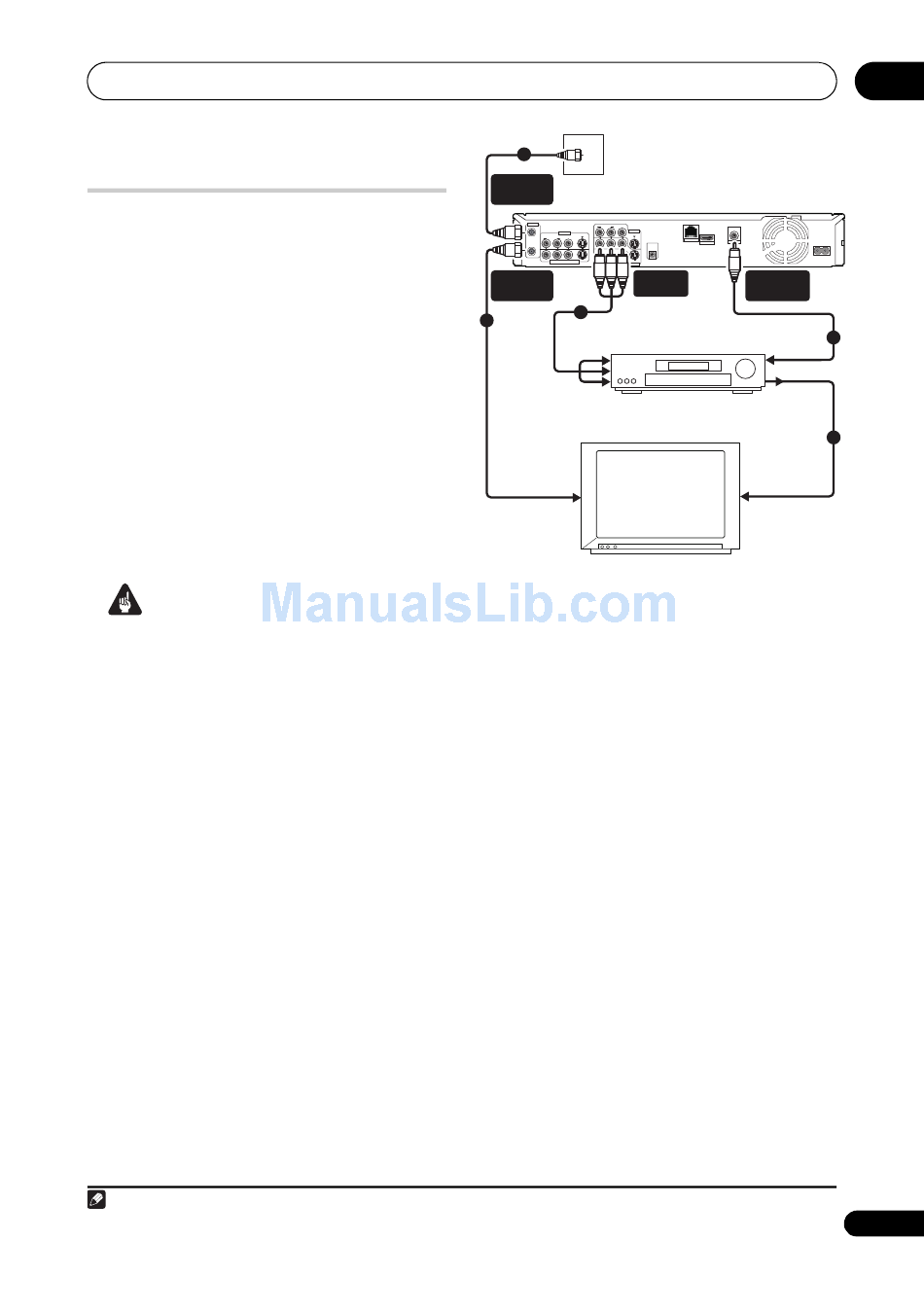

1 Connect RF antenna cables as shown.
This enables you to watch and record TV
channels.
2 Connect the AUDIO and VIDEO
OUTPUT jacks (1 or 2) on this recorder to
a set of audio/video inputs on your AV
amp/receiver.
3 Use an coaxial digital audio cable (not
supplied) to connect the DIGITAL AUDIO
OUT (COAXIAL) jack on this recorder to
an coaxial digital input on your AV amp/
receiver.
This enables you to listen to multichannel
1
surround sound.
4 Connect the AV amp/receiver's video
output to a video input on your TV.
DVR-660H-K
COAXIAL
LAN(10/100) AC IN
DIGITAL OUT
HDMI OUT
DIGITAL
AUDIO OUT
3
To digital input
From video
output
4
To video input
