Connections
Chapter 2
Connections

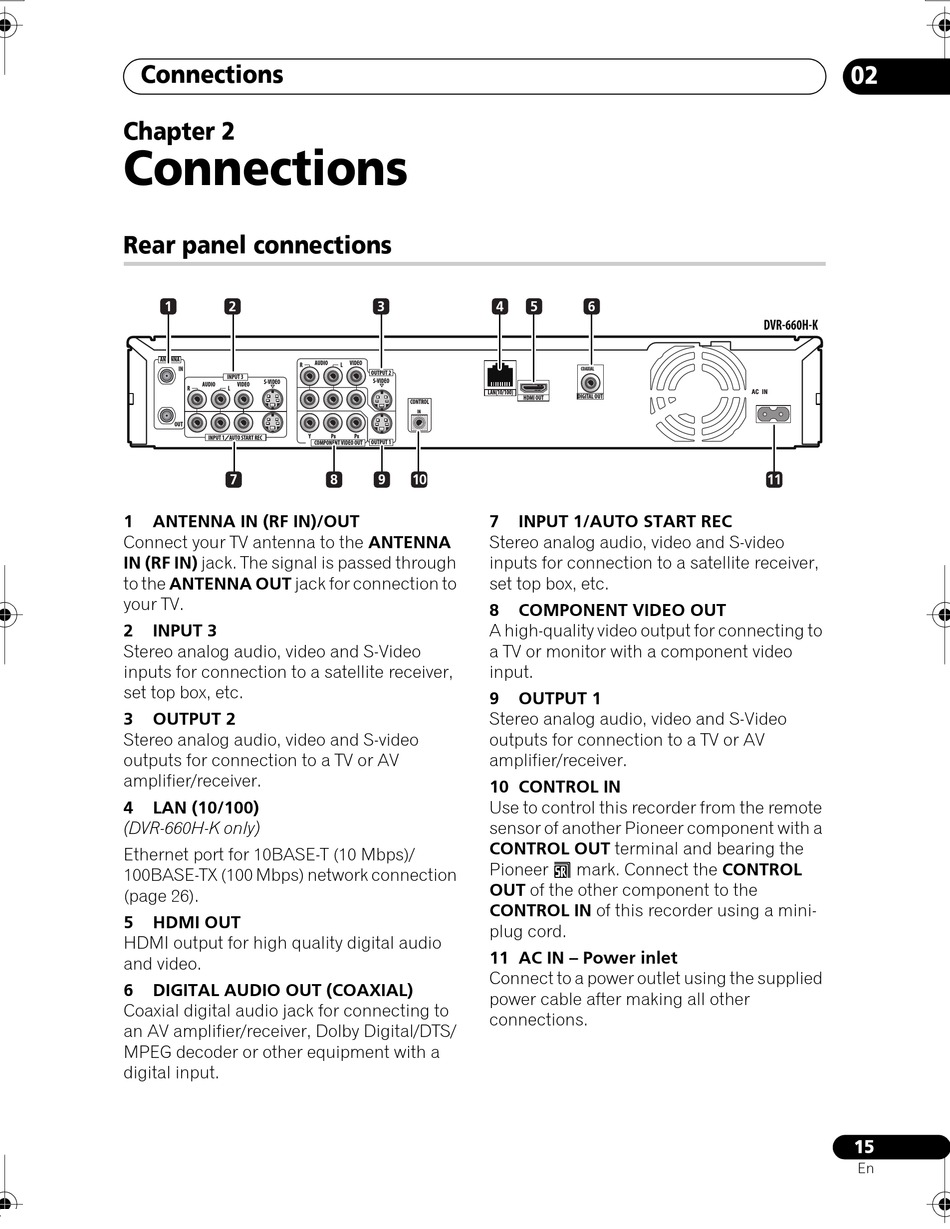

Rear panel connections

1 2
ANTENNA
IN
INPUT 3
S-VIDEO
AUDIO VIDEO
R L
OUT
INPUT 1/AUTO START REC
7
1 ANTENNA IN (RF IN)/OUT
Connect your TV antenna to the ANTENNA
IN (RF IN) jack. The signal is passed through
to the ANTENNA OUT jack for connection to
your TV.
2 INPUT 3
Stereo analog audio, video and S-Video
inputs for connection to a satellite receiver,
set top box, etc.
3 OUTPUT 2
Stereo analog audio, video and S-video
outputs for connection to a TV or AV
amplifier/receiver.
4 LAN (10/100)
(DVR-660H-K only)
Ethernet port for 10BASE-T (10 Mbps)/
100BASE-TX (100 Mbps) network connection
(page 26).
5 HDMI OUT
HDMI output for high quality digital audio
and video.
6 DIGITAL AUDIO OUT (COAXIAL)
Coaxial digital audio jack for connecting to
an AV amplifier/receiver, Dolby Digital/DTS/
MPEG decoder or other equipment with a
digital input.
3
AUDIO VIDEO
R L
OUTPUT 2
S-VIDEO
CONTROL
IN
Y P P
B R
OUTPUT 1
COMPONENT VIDEO OUT
8 9 10
4 5 6
COAXIAL
LAN(10/100)
DIGITAL OUT
HDMI OUT
7 INPUT 1/AUTO START REC
Stereo analog audio, video and S-video
inputs for connection to a satellite receiver,
set top box, etc.
8 COMPONENT VIDEO OUT
A high-quality video output for connecting to
a TV or monitor with a component video
input.
9 OUTPUT 1
Stereo analog audio, video and S-Video
outputs for connection to a TV or AV
amplifier/receiver.
10 CONTROL IN
Use to control this recorder from the remote
sensor of another Pioneer component with a
CONTROL OUT terminal and bearing the
Pioneer  mark. Connect the CONTROL
OUT of the other component to the
CONTROL IN of this recorder using a mini-
plug cord.
11 AC IN – Power inlet
Connect to a power outlet using the supplied
power cable after making all other
connections.
02
DVR-660H-K
AC IN
11
15
En
