16.4 MEASURE ANGLE (Cycle 420,
DIN/ISO: G420)
Cycle run

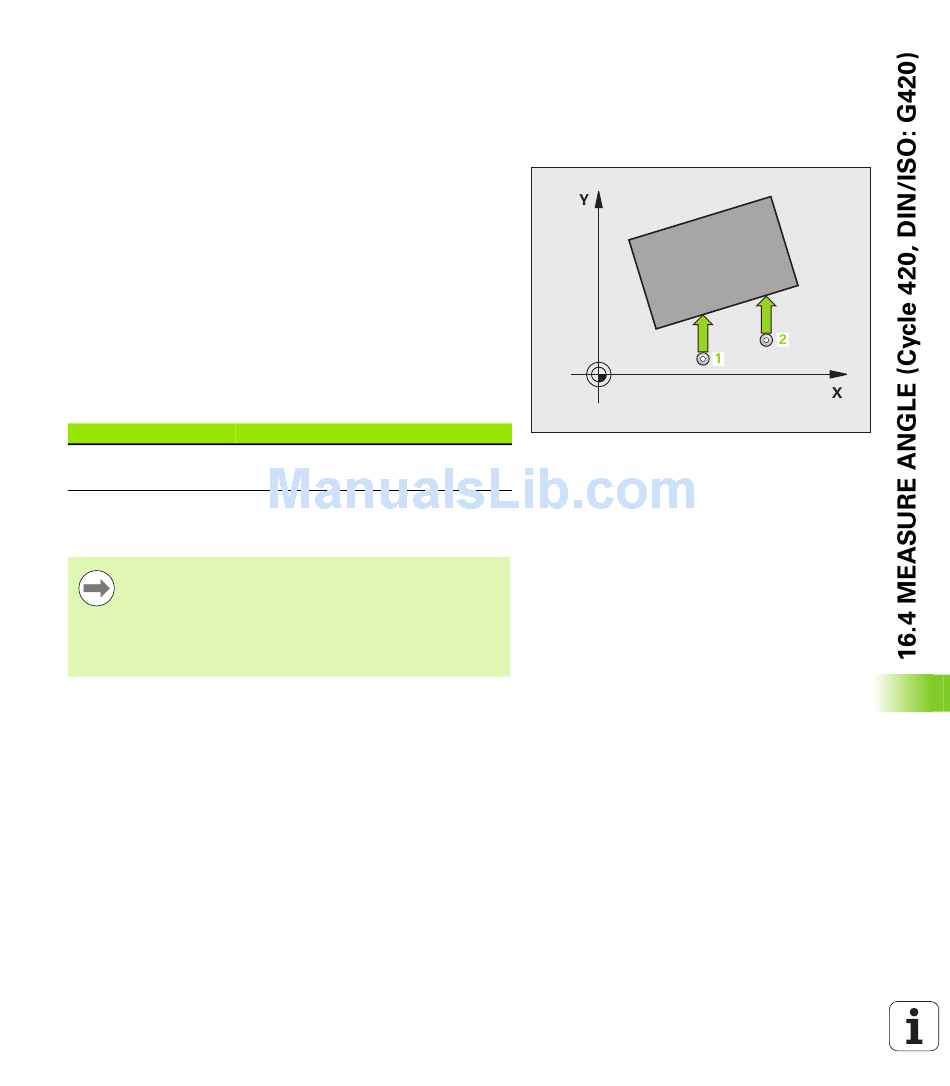

Touch Probe Cycle 420 measures the angle that any straight surface
on the workpiece describes with respect to the reference axis of the
working plane.
1 Following the positioning logic (see "Executing touch probe
cycles" on page 318), the TNC positions the touch probe to the
programmed probe starting point
MP6150). The TNC offsets the touch probe by the safety clearance
in the direction opposite the defined traverse direction.
2 Then the touch probe moves to the entered measuring height and
probes the first touch point at the probing feed rate (MP6120).
3 Then the touch probe moves to the next starting position
probes the second position.
4 The TNC returns the touch probe to the clearance height and saves
the measured angle in the following Q parameter:
Parameter number Meaning
Q150 The measured angle is referenced to the
reference axis of the machining plane.
Please note while programming:
Before a cycle definition you must have programmed a
tool call to define the touch probe axis.
If touch probe axis = measuring axis, set Q263 equal to
Q265 if the angle about the A axis is to be measured; set
Q263 not equal to Q265 if the angle is to be measured about
the B axis.
HEIDENHAIN iTNC 530
1 at rapid traverse (value from
2 and
405
