Cycles in the Manual and El. Handwheel modes

In the Manual Operation and El. Handwheel modes, the TNC provides
touch probe cycles that allow you to:
Calibrate the touch probe
Compensate workpiece misalignment
Set datums

Touch probe cycles for automatic operation

Besides the touch probe cycles, which you can use in the Manual and
El. Handwheel modes, the TNC provides numerous cycles for a wide
variety of applications in automatic mode:
Calibrating a touch trigger probe
Compensating workpiece misalignment
Setting datums
Automatic workpiece inspection
Automatic tool measurement
You can program the touch probe cycles in the Programming and
Editing operating mode via the TOUCH PROBE key. Like the most
recent fixed cycles, touch probe cycles with numbers greater than 400
use Q parameters as transfer parameters. Parameters with specific
functions that are required in several cycles always have the same
number: For example, Q260 is always assigned the clearance height,
Q261 the measuring height, etc.

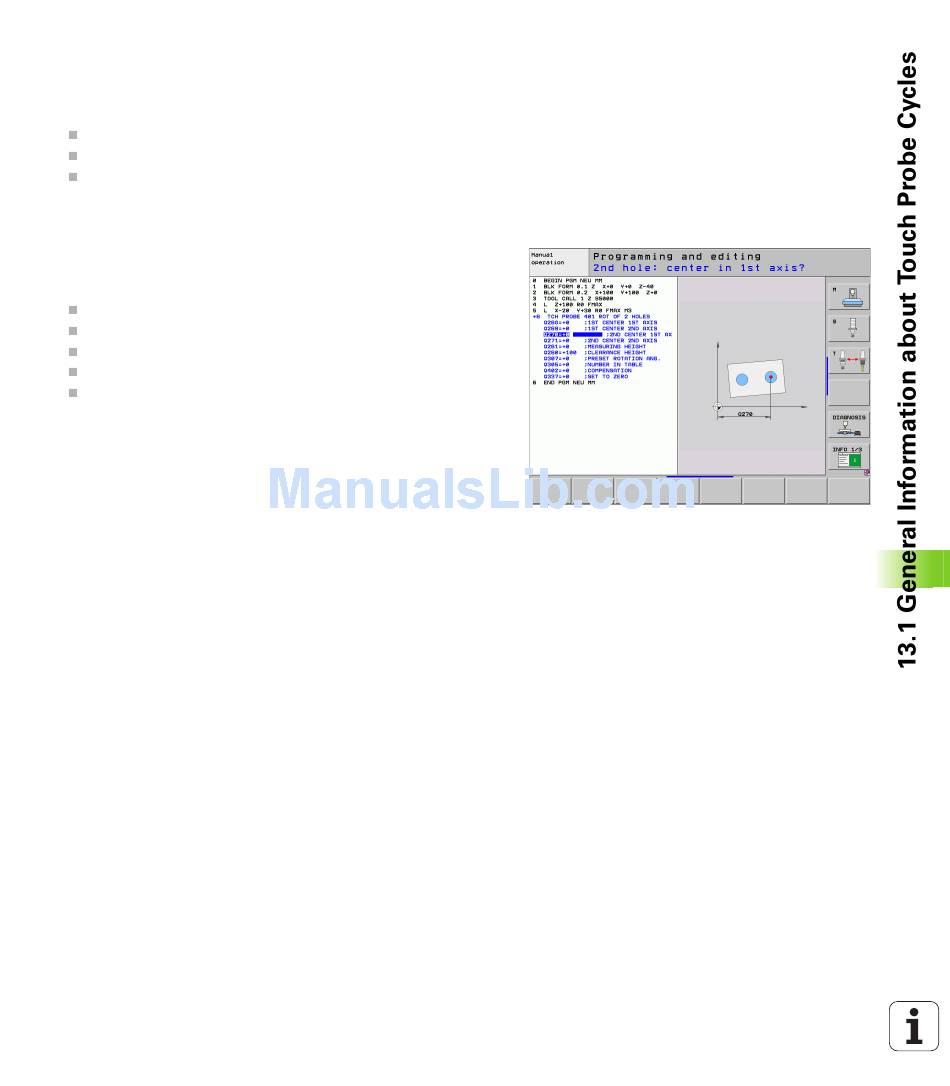

To simplify programming, the TNC shows a graphic during cycle
definition. In the graphic, the parameter that needs to be entered is
highlighted (see figure at right).
